7 inch rugged shockproof intelligent traffic management mobile terminal for For agriculture, mining, transportation GPS Navigator,Android Car touch display Agriculture Truck Navigation

Introduction

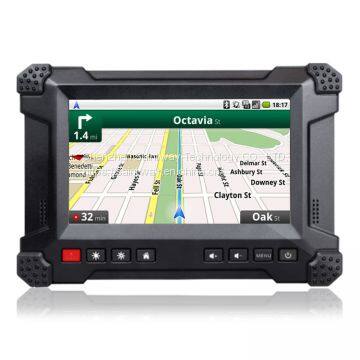

X7R is a rugged IP54 grade mobile data terminal especially designed for intelligent transportation like fleet management system. Based on Rockchip RK3368 ARM? Cortex?-A53 octa-core processor; X7R has higher and more reliable performance in vehicle applications. This device integrates a variety of wireless communication modules such as WiFi, Bluetooth, 4G(3G) cellular and GPS. The rugged enclosure provides more capabilities not only in a wide range of temperatures, but also in harsh environments subject to shock and vibration. And its design also allows it to own a good ingress protection rating of IP54. The pigtail cable is designed for more extension data communications, such as RS232, RS422, RJ45, USB, CAN Bus, GPIOs, etc. The X7R works with Android 6.0 Marshmallow operating system and we provide BSP support for it.

Features

? Rugged enclosure design with IP54 rating

? Rockchip RK3368 ARM* Cortex?-A53 Octa-core processor; 1.5GHz

? Integrated PowerVR G6110 GPU, Support OpenGL ES 1.1/2.0/3.1

? 7-inch 1024x600 LCD with multi-touch capacitive touchscreen

? Android 6.0 Marshmallow operating system

? Built-in WiFi, Bluetooth 4.0 wireless modules

? Built-in 4G/3G cellular modules (optional)

? RJ45 interface for 10M/100M Ethernet l_AN (Gigabits optional)

? Built-in GPS/BEIDOU positioning module

? Built-in NFC module (optional)

? Built-in speaker; earphone jack and microphone jack

? Support SD card external storage

? Extended I/O ports: USB, RS232, RS485, RS422, Ethernet, GPIO, CAN Bus

? CAN Bus (2.0b) option ready

? Function hotkey preset

? Flexible mounting: 50MM*50MM VESA, RAM or in-car bracket with M6/0.24" screw
