Rubber or Steel Track Excavator Mini Digger Trench Digger Machine for Sale
US$ 11,641 - 11,980
/ Set
1 Set(Min. Order)
- T/T Credit Card
You May Like
-
5% Discount for Chinese Product Rubber Track for Mini Excavator in Russia With Cab
-
Surprise Promotion Chinese Best Mechanical or Pilot Brake System for Excavator Joystick Handle
-
Surprise Promotion for Hot-sale Best Cheap New Excavator Price in Pakistan With CE/ISO/EPA
-
New 3 Ton Mini Towable Excavator Best Cheap Excavator for Sale in Cambodia
-

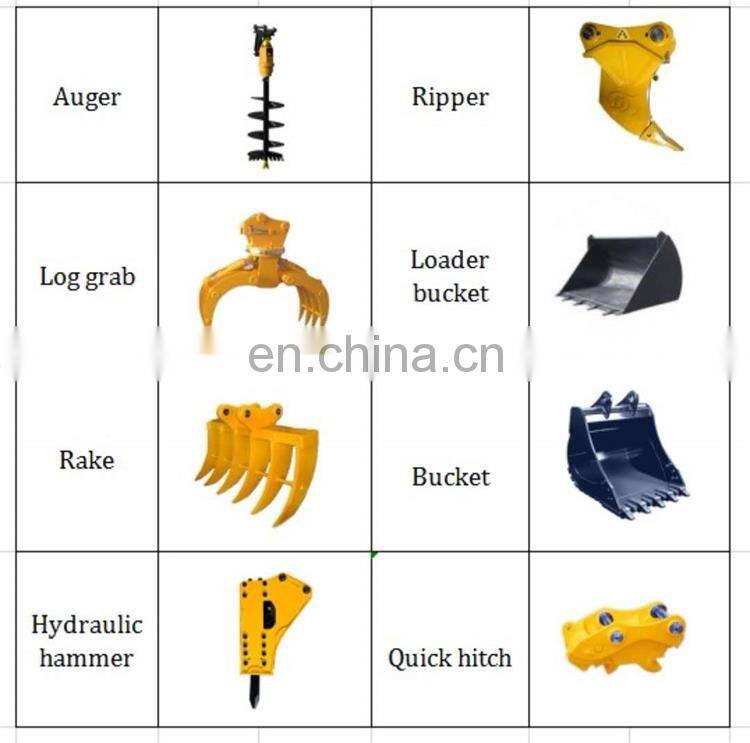

Mini Excavator Accessories With Rake Hydraulic Breaker Drill Ripper Log Grab Attachment
-
Free Shipping NM-E08 Micro Excavator 800kg Mini Pelle Excavatrice Chinoise With Trailer for Sale Price With CE/ISO
Product Details
| Brand Name | Nuoman | Place of Origin | Shandong, China | |
| Certification | CE ISO | |||
| Condition | New | Moving Type | Crawler Excavator | |
| Rated Speed | 3.4km/h | Max Digging Radius | 3860mm | |
| Maximum Digging Depth | 2150mm | Maximum Digging Height | 3365mm | |
| Bucket capacity | 0.06m3 | Operating Weight | 1980kg |
Product Description
rubber or steel track excavator mini digger trench digger machine
Product Description
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

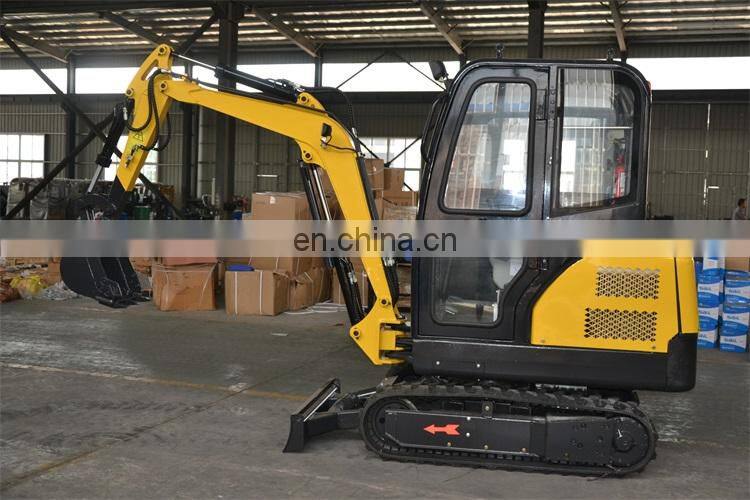

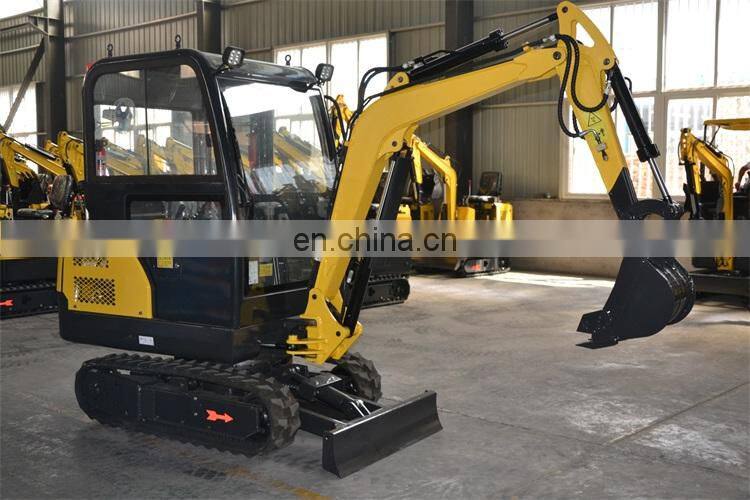

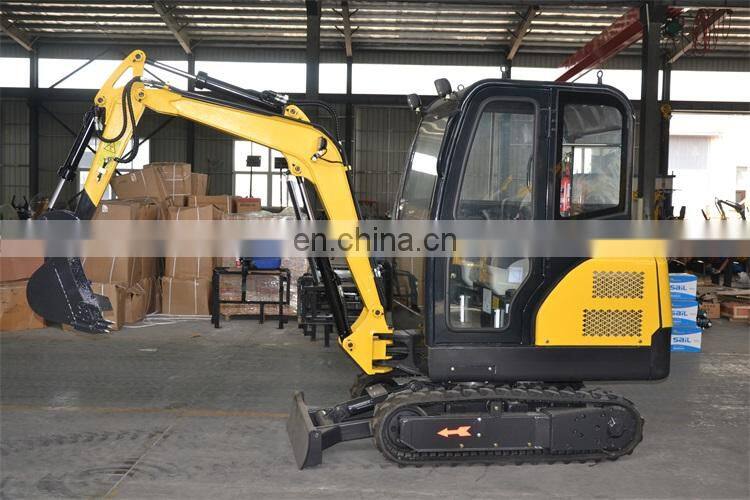

This is the NM-E20, weight is 1980 kg, can work in the basementand other small space.
KM385b/Yanmar 3TNV88 Engine,
Two options for driving shed and cab.

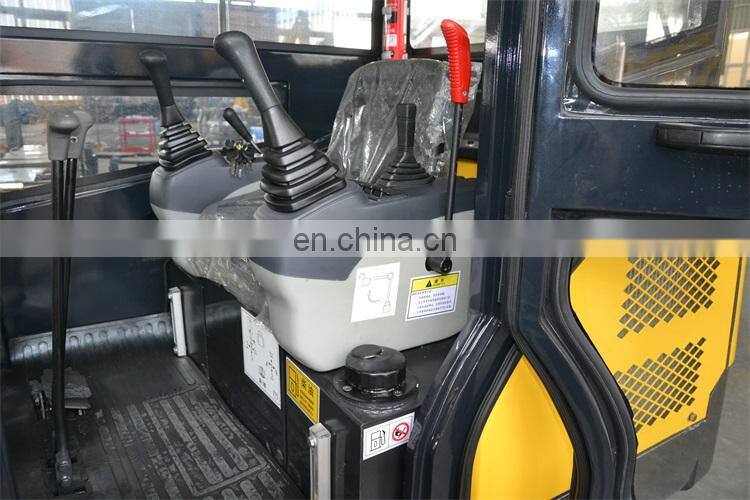

Rubber caterpillar,45AH battery,Pilot Control
Different configurations have different prices
Please consult us for the detailed price.
| Engine | Unit | Specificatin |
| Vehicle weight | kg | 1980 |
| Standard shovel capacity | m³ | 0.06 |
| Working device form | backhoe | |
| Engine model | Yanmar 3TNV88 | |
| Rated power / speed | kw/rmp | 19.6/2200 |
| system pressure | Mpa | 16 |
| Gyration speed | rmp | 10-12 |
| Dimendions | Unit | Specificatin |
| Wheelbase | mm | 820 |
| Caterpillar chief | mm | 1580 |
| Platform clearance | mm | 500 |
| Chassis width | mm | 1050 |
| track width | mm | 230 |
| Full vehicle height | mm | 2170 |
| Operating range | Unit | Specificatin |
| Maximum ground mining radius | mm | 3860 |
| Maximum mining depth | mm | 2050 |
| Maximum mining height | mm | 3365 |
| Maximum unload height | mm | 2385 |
| Maximum vertical excavator depth | mm | 1955 |
| Minimum radius of revolution | mm | 1125 |
| Maximum lift height of earth shovel | mm | 230 |
| Maximum digging depth of earth shovel | mm | 275 |
| Wobble angle of the arm (left) | . | 75 |
| Swing angle of the arm (right) | . | 45 |

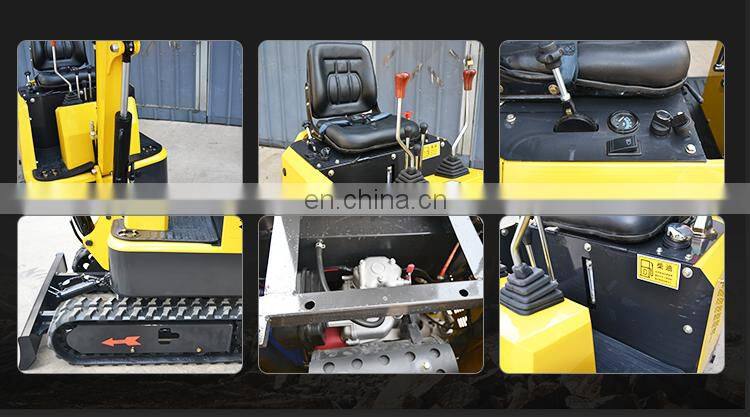

Detailed Images
Product Uses
Please Attention
kindly reminder :
all our certifications is REAL ONE.
NOT FAKE , NOT FAKE , NOT FAKE !!!
PLEASE CONTACT US TO SHOW YOU!!!
Packaging & Shipping

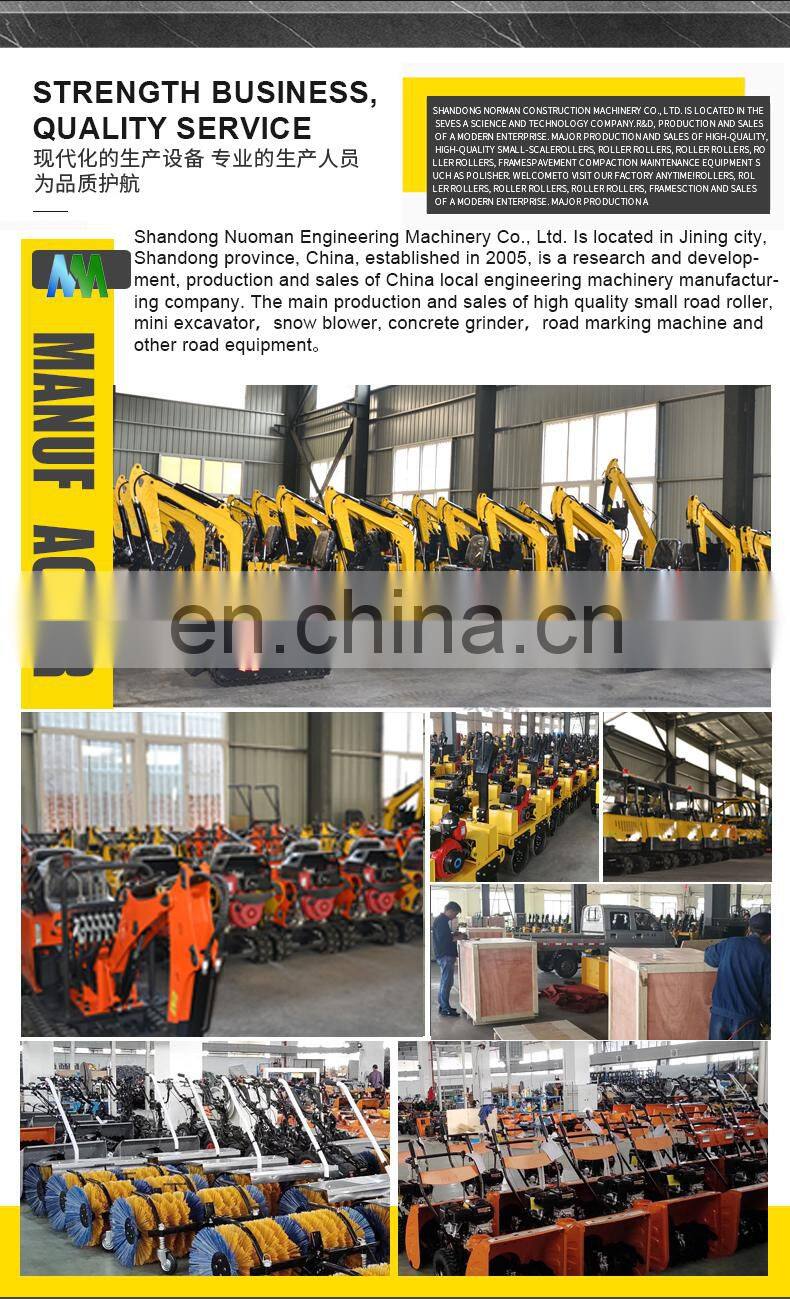

Factory Information
Contact Us
If you have any question, please feel free to contact us.
Shandong Nuoman Engineering Machinery Co., Ltd
Contact: Frank
Email: frank(at)
Mobile/ whatsapp/ wechat/ skype: +86 18266821667
