HS-30 Computer Control Package Box Compression Testing Machine/Box Compression Tester
- Qingdao China
- T/T Credit Card
You May Like
-
Digital Concrete Test Machine Press 3000kN
-
Compressive Strength Testing Machine/Compression Test Equipment,2000kn CTM/Digital Concrete Compression Testing Machine
-
HCT-300 Servo Control Concrete Pipe Compression Testing Machine / Tube Testing Equipment
-
YAW-300D Computer Controlled Full Closed-loop Constant Stress Brick Compression Testing Machine
-
YAW-2000D 200Ton Computer Control Cement Cube Compression Testing Machine
-
YES-3000 Concrete Grade 15. 20. 25 30. 35. 45 Digital Display Manual Concrete Block Testing Machine
Product Details
Brand Name | HS or OEM | Place of Origin | Shandong, China | |
Model Number | HS-30 | Power | Electronic |
Product Description

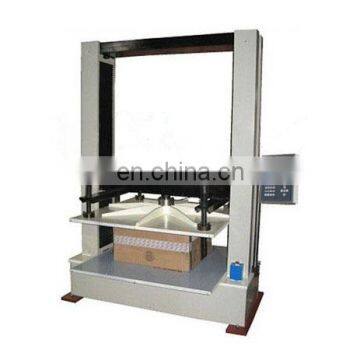

HS-30 Package Box Compression Testing Machine
INTRODUCTION
made of other material with a compressive strength smaller than 30kN. With advanced mechanical
structure of a pair of threaded shafts &guide pillars and imported motor for control,
the esting machine has the following salient features: good parallelism, reliable measure
precision and high return speed(250mm/min.)The testing machine is capable of various
functions for all parameters in standards, Such as parametric test, display, memory,
statistics and print function; data processing function to gain the statistical result of
all parameters directly; and automatic reset and fault diagnosis function and easy operation.
APPLICATIONS
Corrugated board boxes and Cartons, Plastic Packaging, Wooden box
STANDARDS
Meets ISO2872,ISO2874,GB/T4857.3,GB/T4857.4
SPECIFICATIONS
1,Power: AC 380V 5A 50HZ
2,Measuring range: 0 ~ 30kN
3,Indication error: ±1%
4,Plate Size: 800 mm X800 mm or 1000 mm X 1000 mm
5,MAX stroke: 800mm or 1000 mm
6,Pressing Speed: 10 mm/min
7,Return velocity: 250 mm/min (maximum)
8,Display: LCD Display Module, Show Pressure Curve real-time
9,Printer: direct thermal printer, high speed while noiseless.
10,Communication Output: standard RS-232 interface
FEATURES
1,Strength test
when the ample is loaded with maximum pressure or crushing strength.
2,Constant Value Test
value and deformation value. The user can set one or both of them according to the practical
requirement; the measure is complete when any parameter reaches the set value.
3,Stacking Test
given time period. Set up two parameters: compressive strength and testing time (hour).
when the test starts, the system will check the current pressure at any moment to
ensure the set value; the measure is complete when the test time is expired or
the deformation value exceeds the set one within testing time.
4,The overall system is in good parallelism, stationarity and high return speed.
1) Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
2) Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3) Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
4) Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
