WAW-L Computer Control /Digital Display Single Tensile Testing Machine
- Qingdao China
- T/T Credit Card
You May Like
-
600/1000/1500/2000kN WE-D Digital Display UTM Universal Lab Tensile Testing Equipment /Universal Tensile Testing Machine Price
-
300/600/1000/2000 kN Wire Computer Display Hydraulic Universal Material Testing Machine
-
WAW Hydraulic 2000KN 200ton Universal Testing Machine
-
WEW-1000D 100ton Computer Display Hydraulic Universal Tensile Testing Equipment
-
WAW-2000E 2000kn Computer Screen Show Hydraulic Universal Testing Machine
-
JB-300B 150 To 300J HST Charpy Pendulum Impact Testing Machine Supplier
Product Details
| Brand Name | HST | Place of Origin | Shandong, China | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

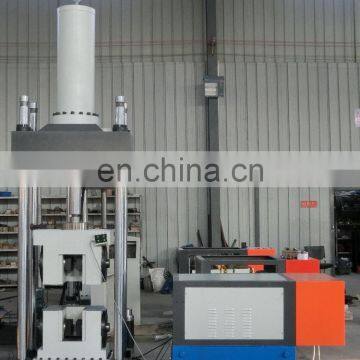

WAW-L Computer Control /Digital Display Single Tensile Testing Machine
1. Application:
Computer Control /Digital Dispaly Single Tensile Testing Machine is applied in steel industry, the high fatigue metal rapid tensile testing.It adopt four-column single pull-type frame structures,realized the bi-directional oil cylinder rising and falling rapidly in a space,to adjust the testing space and tension-compression automatically.The whole test process with the same resolution.
2.Main Specifications:
Model | WAW-300L | WAW-600L | WAW-1000L | WAW-2000L | |||
Control mode | constant stress, deformation, displacement, three closed loop control | ||||||
Max. Load | 300kN | 600kN | 1000kN | 2000kN | |||
Load range | 2%~100%FS | ||||||
Force resolution | 1/300000 | ||||||
Load accuracy | ≤±1% | ||||||
Deformation Measurement Range | 2% ~ 100% of extensometer measurement range | ||||||
Deformation indication error | ± 0.5%of indicating value | ||||||
Deformation resolution | 0.0001mm | ||||||
Displacement Indication Error | 1%of indicating value | ||||||
Displacement Resolution | 0.005mm | ||||||
Clamping Method | Hydraulic clamping | ||||||
Control range of stress rate | 1MP/S-60MP/S
| ||||||
Adjust range of test strain rate | 0.00025/S-0.0025/S | ||||||
Max piston stoke | 600mm | ||||||
Max. Tensile Test Space | 500mm | ||||||
Round Sample Clamping Diameter: | Φ13-Φ40mm | Φ13-Φ40mm | Φ20-Φ60mm | Φ40-Φ80mm | |||
Flat Sample Clamping Diameter | 0-30mm | 0-30mm | 0-40mm | 10-40mm | |||
Voltage | 380V/50Hz/3Phase(can be customized) | ||||||
