Home > Products > Electronic Universal Testing Machine > Factory Direct Price Textile Fiber Building Materials Tensile Strength Creep Test Machine
Factory Direct Price Textile Fiber Building Materials Tensile Strength Creep Test Machine
- Qingdao or Shanghai
- T/T Credit Card
You May Like
-
Metallurgical Iron and Steel High Low Temperature Tensile Test Lab Report Machine
-
Wire Rope Tensile Compression Strength Testing Machine
-
Rubber Servo Motor Tensile Universal Testing Machine
-
Metallic Material Steel Wire Tensile Strength Testing Machine
-
Lab Equipments Cable Steel Rebars Bend Tensile Strength Testing Universal Machine
-
Components Peel Tearing 200kn Friction and Wear Compression Testing Machine
Product Details
| Brand Name | HST | Place of Origin | Shandong, China | |
| Model Number | WDW-20 | Power | Electronic |
Product Description

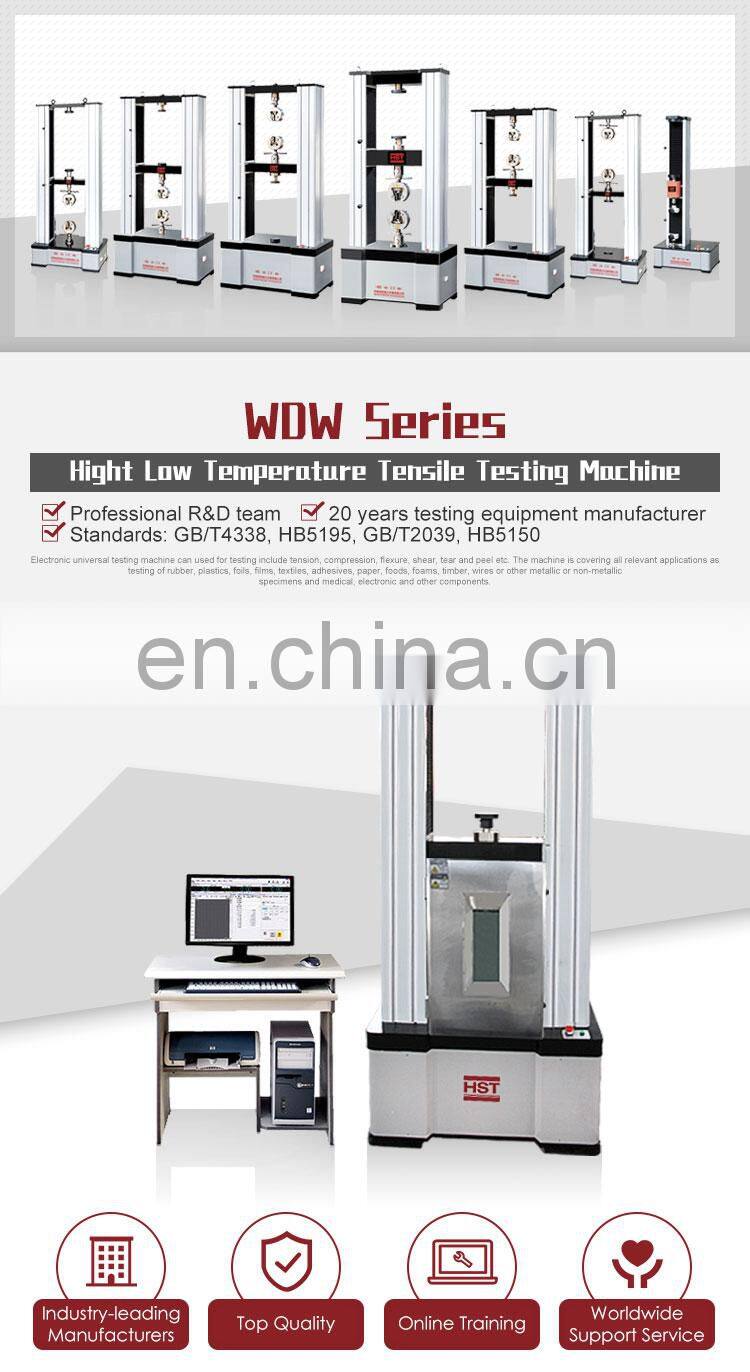

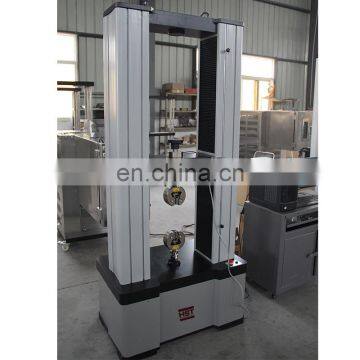

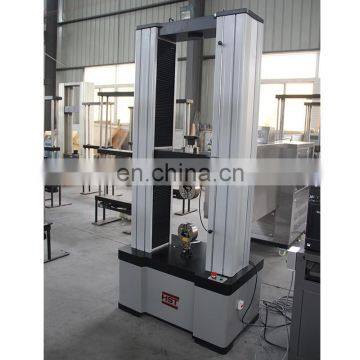

Factory direct price textile fiber building materials tensile strength creep test machine
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum &Chemical; other industries.
Model | WDW-5 | WDW-10 | WDW-20 | WDW-30 | WDW-50 | WDW-100 |
Max. Load | 5kN 500kgf 1120lbf | 10kN 1000kgf 2240lbf | 20kN 2000kgf 4480lbf | 30kN 3000kgf 6720lbf | 50kN 5000kgf 11200lbf | 100kN 10000kgf 22400lbf |
Load accuracy | ≤±1% | |||||
Load range | 2%-100% of full scale | |||||
Load resolution | 1/200000 of full scale | |||||
Disp. resolution | 0.01mm | |||||
Test speed | 0.05-500mm/min | 0.05-300mm/min | ||||
Tensile space | 750mm|30in | 650mm|25.6in | 650mm|25.6in | |||
Comp. space | 750mm|30in | 650mm|25.6in | 650mm|25.6in | |||
Test width | 375mm | 400mm | 420mm | |||
Temperature range | -40°C~350°C | |||||
Thermostat specifications | High precision temperature control meter , multilevel PID adjust, interval 1°C, accuracy: 0.5°C | |||||
Temperature fluctuation | ±1°C | |||||
Temperature gradient | Better than 3°C | |||||
Heating up time | Room temperature to 300°C, less than 50 minutes | |||||
Uniform temperature zone length | More than 150mm | |||||
Size of oven body | Hearth: depth 650mm×width 240mm×height400mm Overall size:1000mm×390mm×600mm | |||||
Material | Stainless steel inner shell, long durability, good anti-corrosion performance | |||||
Structure | Large observation window, easy operation, with guide rail | |||||
High temperature box power | 2kW/AC380V/50Hz | |||||
Dimension | 730×430×1700mm | 755×480×1780mm | 825×600×1950mm | |||
Power supply | 220V, 1ph, 0.5kW | 220V, 1ph, 0.75kW | 220V, 1ph, 1kW | |||
Weight (kg) | 250kg|550lb | 280kg|616lb | 350kg|770lb | |||
