Silent ventilation fan
Negotiable
/ Piece
10 Pieces(Min.Order)
- GUANGZHOU
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
Product Details
| Place of Origin | China | Certification | CCC | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

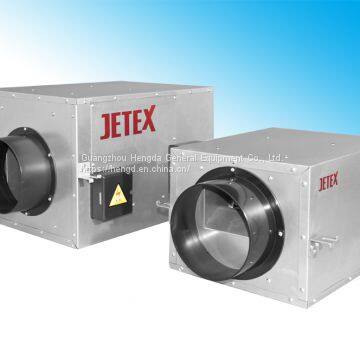

Silent Ventilator
Product Type:Silent Ventilator
Place of origin:ChinaModel NO:JS
Inquire Online Download
Product Information
Silent Ventilator
It is equipped with damping material which is able to greatly reduce the noise. The minimum noise is only 23dB (air volume: 180 m3/h).
Two-way absorption turbine fan design has features of high efficiency and large air volume.
The installation direction is free and the construction is easy.
There are hardware fittings to allow easy construction.
It is equipped with damping material which is able to greatly reduce the noise. The minimum noise is only 23dB (air volume: 180 m3/h).
Two-way absorption turbine fan design has features of high efficiency and large air volume.
The installation direction is free and the construction is easy.
There are hardware fittings to allow easy construction.
| Model | Power (W) | Air Volume (m3/h) | Noise (dB) | Static Pressure (Pa) | Net Weight (Kg) | Size of Mounting Hole (mm) | ||||
| Strong | Weak | Strong | Weak | Strong | Weak | Strong | Weak | |||
| JS-5NS1C | 19 | - | 180 | - | 23 | - | 113 | - | 6.2 | 285×298 |
| JS-6NS1C | 38 | - | 370 | - | 27 | - | 132 | - | 7.6 | 285×299 |
| JS-7NS1C | 60 | - | 500 | - | 29 | - | 167 | - | 11 | 315×348 |
| JS-7NF1C | 100.5 | 87 | 770 | 620 | 35 | 32 | 201 | 190 | 14 | 385×378 |
| JS-8NS1C | 135.5 | - | 920 | - | 34.5 | |||||
