TDDL Aluminum Conductor ACSR Bare Conductor acsr conductor

FOB Price

USD $1 - $15 / Meter

1 Meter(Min.Order)

Supply Ability 2000 Ton / Tons per Month
Port QINGDAO/SHANGHAI/NINGBO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HNTDDL		Place of Origin	Henan, China
Model Number	TDDL-16-1250		Type	High Voltage

Product Description

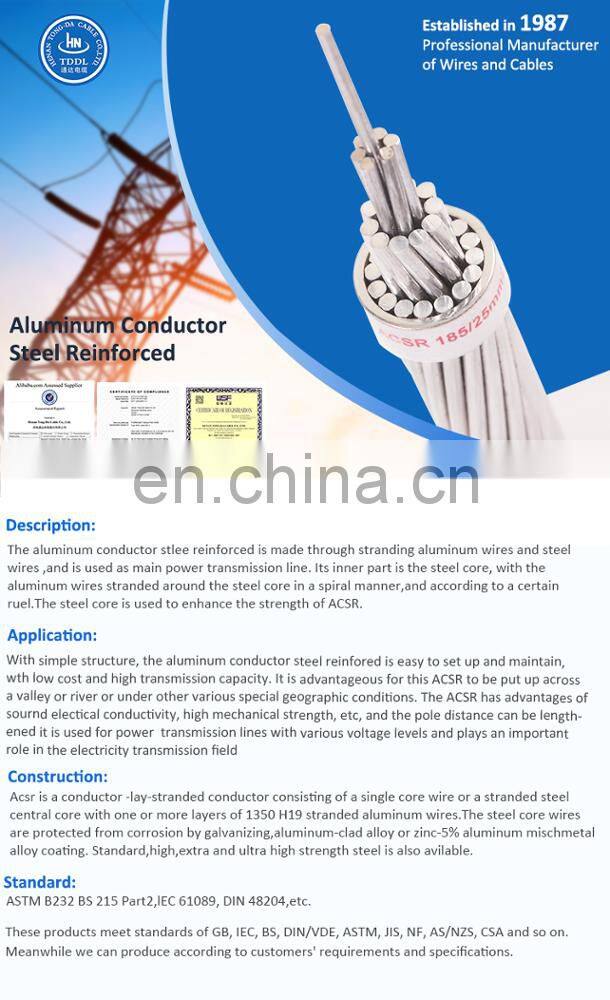

Aluminium-clad steel reinforeed conductor
ACSR/AC/1350						AS 3607-1989
Code	Stranding and wire diameter		Nominal overall diameter	Cross-sectional area	Approx. mass	Break. load	Equiv. aluminium area	D.C. resistance per km at 20℃
	Aluminium 1350	Steel	Nominal overall diameter	Cross-sectional area	Approx. mass	Break. load	Equiv. aluminium area	D.C. resistance per km at 20℃
	mm	mm	mm	mm2	kg/km	kN	mm2	Ω
Angling	6/2.50	1/2.50	7.5	34.36	113	10.6	30.7	0.923
Aquatics	6/2.75	1/2.75	8.3	41.58	137	12.7	37.1	0.763
Archery	6/3.00	1/3.00	9.0	49.48	163	15.1	44.1	0.641
Baseball	6/3.75	1/3.75	11.3	77.31	254	22.3	68.9	0.410
Bowls	6/4.75	7/1.60	14.3	120.4	385	32.7	109	0.259
Cricket	30/2.50	7/2.50	17.5	181.6	636	64.4	155	0.182
Darts	30/3.00	7/3.00	21.0	261.5	913	91.6	224	0.126
Dice	30/3.25	7/3.25	22.8	306.9	1070	106	263	0.108
Diving	30/3.50	7/3.50	24.5	356.0	1240	122	305	0.0928
Golf	54/3.00	7/3.00	27.0	431.2	1380	120	390	0.0726
Gymnastics	54/3.25	7/3.25	29.3	506.0	1620	139	457	0.0619
Hurdles	54/3.50	7/3.50	31.5	586.9	1880	159	530	0.0533
Lacrosse	54/3.75	19/2.25	33.8	672.0	2150	180	608	0.0465
Skating	3/1.75	4/1.75	5.3	16.84	83	12.3	10.3	2.75
Soccer	3/2.50	4/2.50	7.5	34.36	171	24.9	21.1	1.34
Swimming	4/3.00	3/3.00	9.0	49.48	218	28.9	35.0	0.807
Tennis	4/3.75	3/3.75	11.3	77.31	340	42.6	54.7	0.517

Zinc-coated steel reinforced conductor
ACSR/GZ/1350						AS 3607-1989
Code	Stranding and wire diameter		Nominal overall diameter	Cross-sectional area	Approx. mass	Break. load	Equiv. aluminium area	D.C. resistance per km at 20℃
	Aluminium 1350	Steel	Nominal overall diameter	Cross-sectional area	Approx. mass	Break. load	Equiv. aluminium area	D.C. resistance per km at 20℃
	mm	mm	mm	mm2	kg/km	kN	mm2	Ω
Almond	6/2.50	1/2.50	7.5	34.36	119	10.5	29.0	0.975
Apricot	6/2.75	1/2.75	8.3	41.58	144	12.6	35.1	0.805
Apple	6/3.00	1/3.00	9.0	49.48	171	14.9	41.8	0.677
Banana	6/3.75	1/3.75	11.3	77.31	268	22.7	65.2	0.433
Cherry	6/4.75	7/1.60	14.3	120.4	402	33.4	105	0.271
Grape	30/2.50	7/2.50	17.5	181.6	677	63.5	144	0.196
Lemon	30/3.00	7/3.00	21.0	261.5	973	90.4	207	0.136
Lychee	30/3.25	7/3.25	22.8	306.9	1140	105	243	0.116
Lime	30/3.50	7/3.50	24.5	356.0	1320	122	282	0.100
Mango	54/3.00	7/3.00	27.0	431.2	1440	119	373	0.0758
Orange	54/3.25	7/3.25	29.3	506.0	1690	137	438	0.0646
Olive	54/3.50	7/3.50	31.5	586.9	1960	159	508	0.0557
Pawpaw	54/3.75	19/2.25	33.8	672.0	2240	178	583	0.0485
Quince	3/1.75	4/1.75	5.3	16.84	95	12.7	8.74	3.25
Raisin	3/2.50	4/2.50	7.5	34.36	195	24.4	17.8	1.59
Sultana	4/3.00	3/3.00	9.0	49.48	243	28.3	31.5	0.897
Walnut	4/3.75	3/3.75	11.3	77.31	380	43.9	49.2	0.573

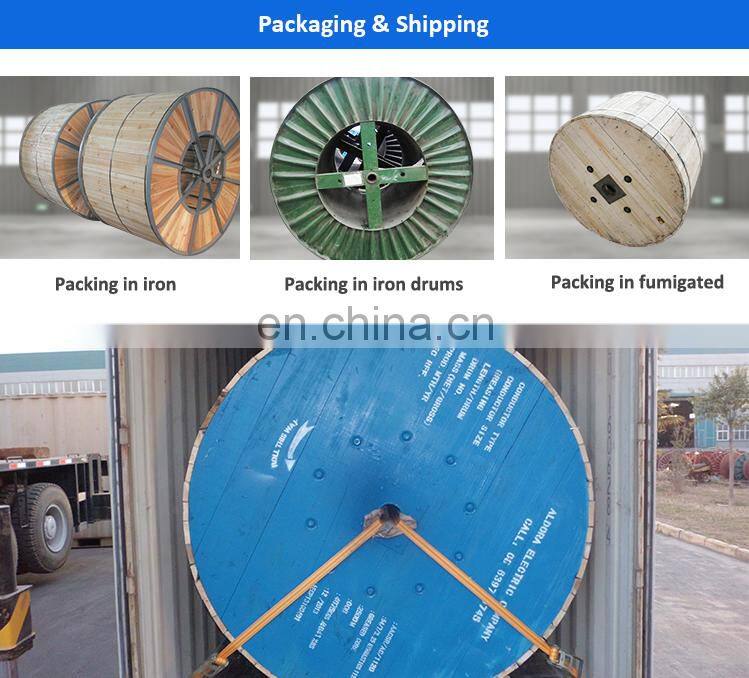

Packaging & Shipping

FAQ

Q1. Are you a manufacturer?

Yes, we are a manufacturer own factory with almost 30 years experiences.

Q2. What are your main products?

Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System

Q3. What’s the package of products ?

The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.

Q4. How can I get samples?

Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.

Q5. What is our payment terms ?

We can accept the following payment terms: T/T, L/C, O/A

Welcome to place order immediatel !
