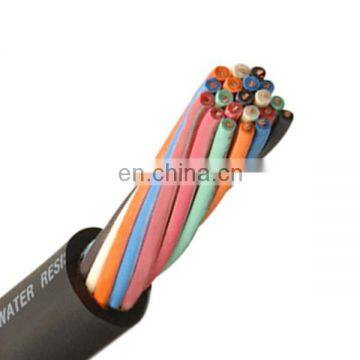

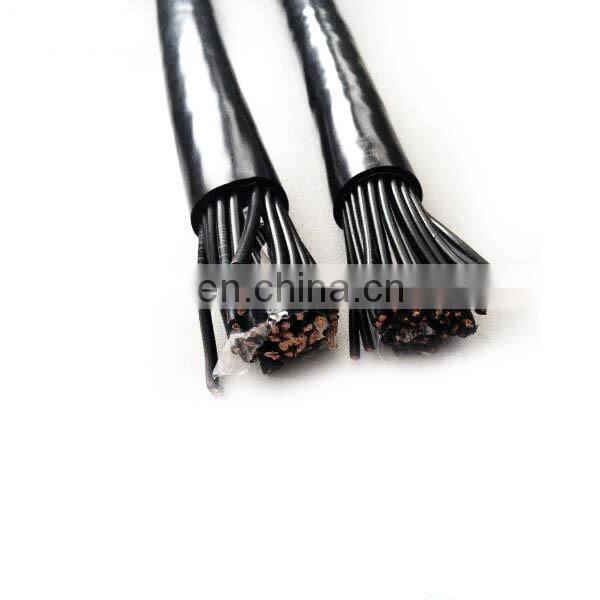

Braid Copper Wire Shield PVC Control Cable 6x1.5mm
- Qingdao/Tianjin/Shanghai
- T/T Credit Card
You May Like
-
EVV/EVV-L 300V Flexible Color Coded PVC Insulated&Sheathed Control Cable JIS C 3408
-
Portable Equipment Appliances 300Volt SJO Portable Cord Cable 18AWG 16AWG 12AWG Size Factory Price
-
Flexible Reeling Cable 4C x 25mm2 0.6/1KV H07RN-F 4G25 IEC 60245/DN-F
-
The Philippines Best Selling SOOW ROYALS CORD 18AWG Black 600V Rubber Cable Factory Price
-
KVVR Cable 14x2.5mm Flexible Copper Conductor Control Cable
-
Vaf Cable Grd 2x2.5 1.5 sq Mm2
Product Details
| Brand Name | Huadong control cable. | Place of Origin | Henan, China | |
| Model Number | KVVP control cable | Application | Instrumentation | |
| Insulation Material | PVC | Jacket | PVC | |
| Conductor Material | Copper |
Product Description
.

Conductor material: Bare copper
Conductor construction: Class 1 solid, Class 2 stranded, Class 5 Flexible
Insulation: PVC YI2
Inner sheath: PVC
Screen: Cu-braiding
Screen coverage: 70 %
Sheathing material: PVC TM2
Colour of outer sheath: Gray RAL 7001
Flame retardant: VDE 0482-332-1-2/IEC 60332-1
Maximum temperature at conductor: 70 ° C
Max. Operating temperature, fixed: -40 - +70 ° C
Temperature, moved/during installation: -5 - +70 ° C
Bending radius, fixed installation: 6 x DA
Bending radius, moved application: 20 x DA
Nominal voltage Uo: 300 V
Nominal voltage U: 500 V
Test voltage: 2 kV
Core identification: Gn-ye + numbers
Application: Flexible power, process control and instrumentation cable for industry and machinery environment with
Increased requirements to electromagnetic compatibility. The cable is resistant against most usual chemicals, oil and
Grease.
Parameter Data
Type | 0.6 / 1kv control cable Name | Section Area(mm2) | No. of Core | 0.6 / 1kv control cable Application Site |
KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 | |||
10 | 2-10 | |||
KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 | |||
10 | 2-10 | |||
KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 7-61 | |||
10 | 4-10 | |||
KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
4 6 | 4-14 | |||
10 | 4-14 | |||
KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
1.5 2.5 | 4-48 | |||
KYJV | Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 | |||
10 | 2-10 | |||
KYJVP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 | |||
10 | 2-10 | |||
KYJV22 | Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
4 6 | 4-14 | |||
10 | 4-10 | |||
KYJVP2 | Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 4-14 | |||
10 | 4-10 | |||
KYJVR | Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KYJVRP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
Braid copper wire shield PVC Control Cable 6x1.5mm.
1,100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
Braid copper wire shield PVC Control Cable 6x1.5mm.
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Braid copper wire shield PVC Control Cable 6x1.5mm.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
instrument cable Flexible with 7mm of diameters cooper 1x0.75mm^2 Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
instrument cable Flexible with 7mm of diameters cooper 1x0.75mm^2 Certificate:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
