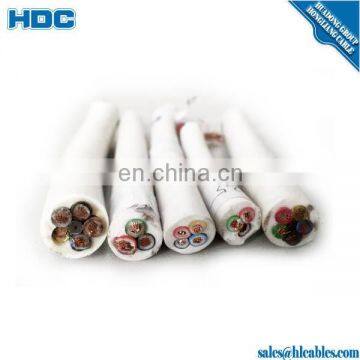

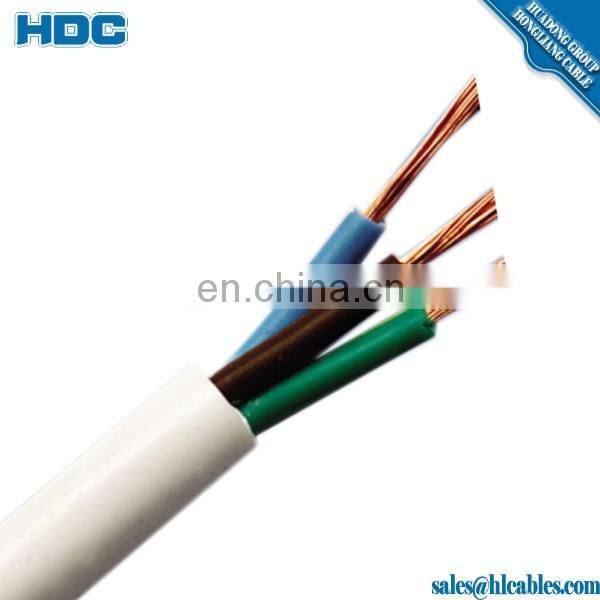

2 Core Vct Cable With Customized Size
- Qingdao/Tianjin/Shanghai/Ningbo/Guangzhou
- T/T Credit Card
You May Like
-
TTYC TTYCS 150/250V Shipboard Cable Tinned Copper Rubber Neoprene Watertight Flexing Cable 2 3 4 5 Cores
-
LSZH H05Z1Z1-F Cable 300/500V Flexible Rubber Cable Copper EPDM Insulated CPE Sheath
-
Braid Copper Wire Shield PVC Control Cable 6x1.5mm
-
EVV/EVV-L 300V Flexible Color Coded PVC Insulated&Sheathed Control Cable JIS C 3408
-
Portable Equipment Appliances 300Volt SJO Portable Cord Cable 18AWG 16AWG 12AWG Size Factory Price
-
Flexible Reeling Cable 4C x 25mm2 0.6/1KV H07RN-F 4G25 IEC 60245/DN-F
Product Details
| Brand Name | Huadong | Place of Origin | Henan, China | |
| Model Number | RVV | Type | Insulated | |
| Insulation Material | PVC | |||
| Conductor Material | Copper |
Product Description

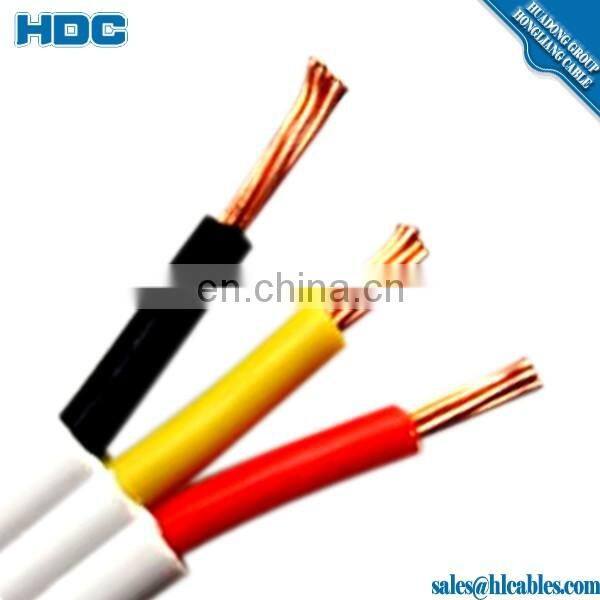

item name: electrical pvc wire and cable
vct cable 2 core 2.5 sq.mm vct 4 core 2.5 sq.mm
1. Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
2. Brief construction
1) Conductor: Copper or aluminium, stranded
2) Insulation: PVC
3) Number of cores: Single core
4) The nominal section area:2.5-70mm2
5)Other special characteristics: Design and manufacture according to the requirements of customers.
3.Type& Specification
Model No. | Conductor | Insualtion | Jacket | ||||
Cores × Nom. Area | Max. Resistance at 20°C | Thickness | Min. Resistance at 70°C | Thickness | Min. Dia. | Max. | |
mm² | MΩ/km | mm | MΩ/km | mm | mm | mm | |
RVV2×0.75 | 2×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6 | 7.6 |
RVV2×1.0 | 2×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.4 | 8 |
RVV2×1.5 | 2×1.5 | 13.3 | 0.7 | 0.01 | 0.8 | 7.4 | 9 |
RVV2×2.5 | 2×2.5 | 7.98 | 0.8 | 0.009 | 1 | 8.9 | 11 |
RVV3×0.75 | 3×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.4 | 8 |
RVV3×1.0 | 3×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.8 | 8.4 |
RVV3×1.5 | 3×1.5 | 13.3 | 0.7 | 0.01 | 0.9 | 8 | 9.8 |
RVV3×2.5 | 3×2.5 | 7.98 | 0.8 | 0.009 | 1 | 9.6 | 12 |
vct cable 2 core 2.5 sq.mm vct 4 core 2.5 sq.mm

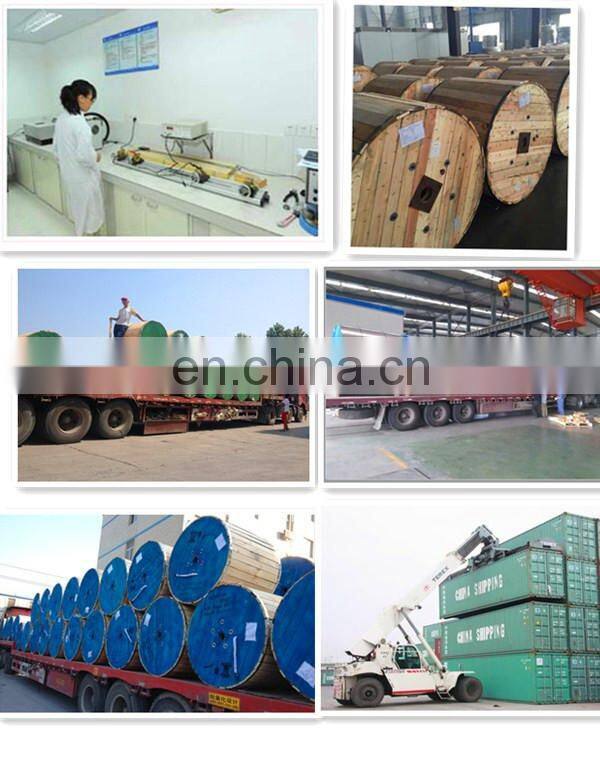

1,wooden drum, Iron wooden drum or as your request
. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
2, the long & wide & high of 40 size container:11.9*2.32*2.72
vct cable 2 core 2.5 sq.mm vct 4 core 2.5 sq.mm
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
BS5467 Cable, Mains Cable, MDPE, SWA, Copper Conductors 4mm - 16mmFIXED WIRING AND MAINS CABLE - BS5467 - SWA - MDPE

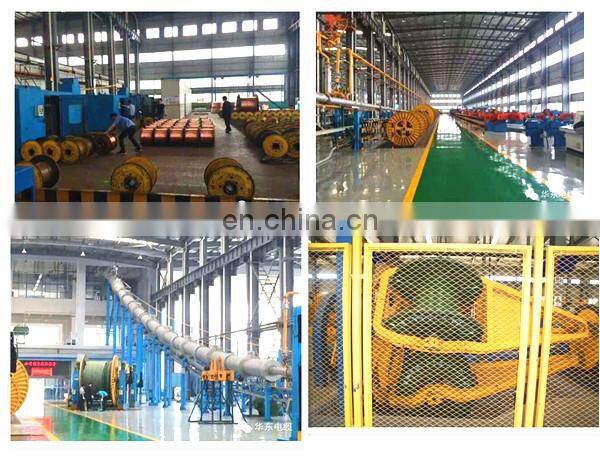

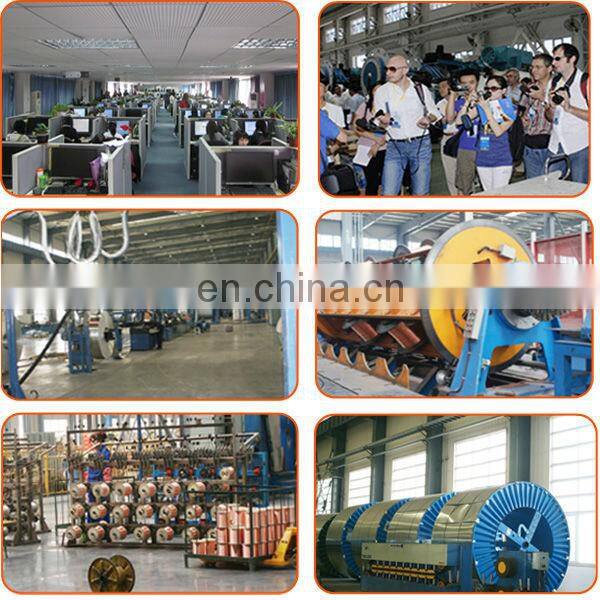

Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
Certificate:
The company has passed ISO quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the
Transformation of Urban and Rural Power Grid Construction.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
