Product Details
| Brand Name | Huadong Cable | Place of Origin | Henan, China | |
| Model Number | 24kv underground cable | Type | Medium Voltage | |
| Insulation Material | XLPE | |||
| Jacket | PVC | Conductor Material | Copper |
Product Description
Product Description

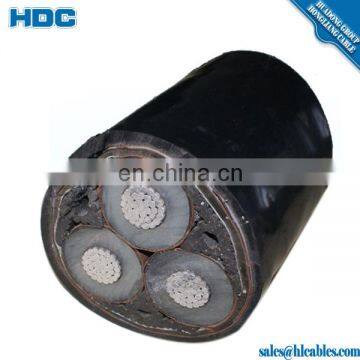

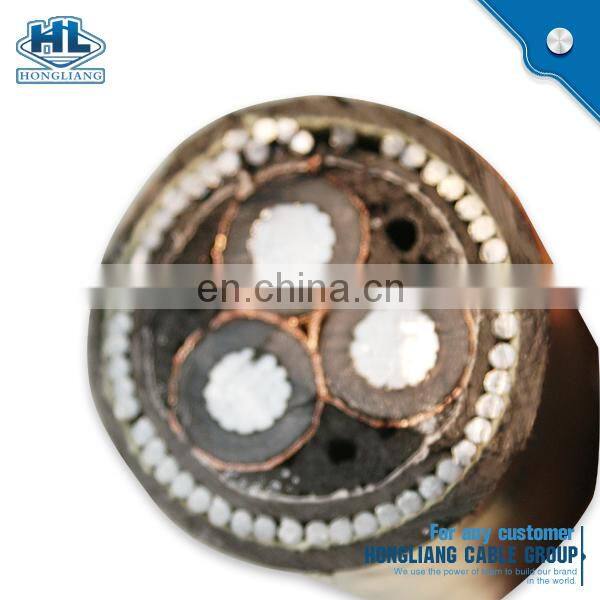

item name:3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable
Construction:
1.Rated Voltage: 24KV.
2.Conductor: stranded aluminum
3.Conductor screen:None
4.Insulation: 90℃ XLPE.
5.Insulation screen: None
6.Armoued: SWA armor.
7.Outer sheath: PVC
8.Sectional area: 3C X 185mm2
| Uo/Um(kv) | 1st class | 0.6/1 | 1.8/3 | 3.6/6 |
| No. of Core | 2nd class | 1/1 | 3/3 | 6/6 |
| 1 core | section area(mm2) | 1.5-800 | 25/800 | 25-800 |
| 2 core | section area(mm2) | 1.5-185 | / | / |
| 3 core | section area(mm2) | 1.5-400 | 25-400 | 25-400 |
| 4 core | section area(mm2) | 2.5-400 | 25-400 | / |
| 5 core | section area(mm2) | 2.5-400 | 25-400 | / |
| Type | Name
| Application | |
Cu Conductor | Al Conductor | ||
YJV YJY | YJLV YJLV | XLPE Insulated,PVC or PE S heathed Power Cable | For laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid. |
YJV22 YJV23 | YJLV22 YJLV23 | XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable | For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force. |
YJV32 YJV33 | YJLV32 YJLV33 | XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force. |
YJV42 YJV43 | YJLV42 YJLV43 | XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |

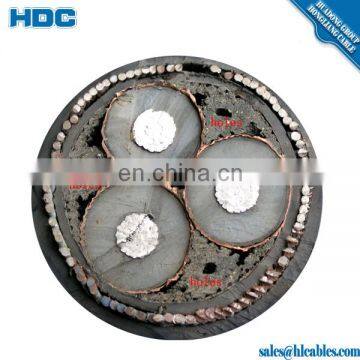

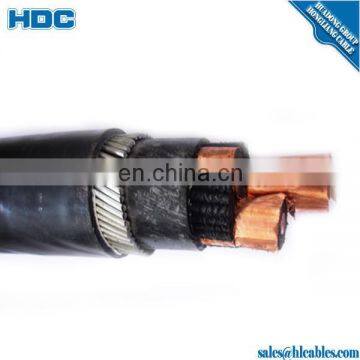

3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable
Power cables for power networks, underground, outdoors and in cable ducting.
Standards:BS6622
Conductor:Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
Conductor screen:Semi-conducting material
Insulation:XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
Insulation Screen:Semi-conducting material
Metallic Screen:Individual and overall copper tape screen to BS6622
Filler:PETP (Polyethylene Terephthalate) fibres
Separator:Binding tape
Bedding:PVC (Polyvinyl Chloride) Type TM1 to BS7655
Armouring:Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel Wire Armoured (SWA)
Sheath:PVC (Polyvinyl Chloride) Type TM1 to BS7655
Colour:Red or Black
Voltage Rating:19000/33000V
Temperature Rating:0°C to +90°C
1 low voltage cable power cable
3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable
Low voltage (0.6/1 kv)
single core or multi-core
copper or aluminium conductor
pvc inusulation
steel tape armored or galvanized steel wire armored or unarmored
pvc outer sheath
power cable.
2.2 medium voltage cabel power cable
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor
xlpe insulation
copper tape or copper wire screen
galvanized steel wire armored
pvc or pe sheath
power cable
2.3 high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.
3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable
3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable

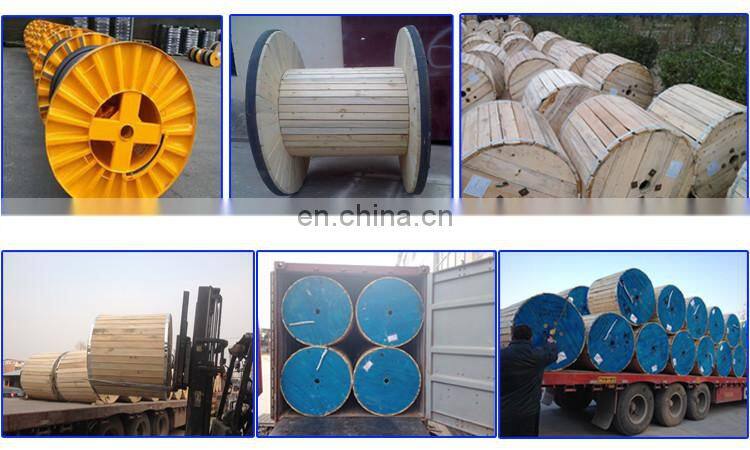

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your reques.
3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable

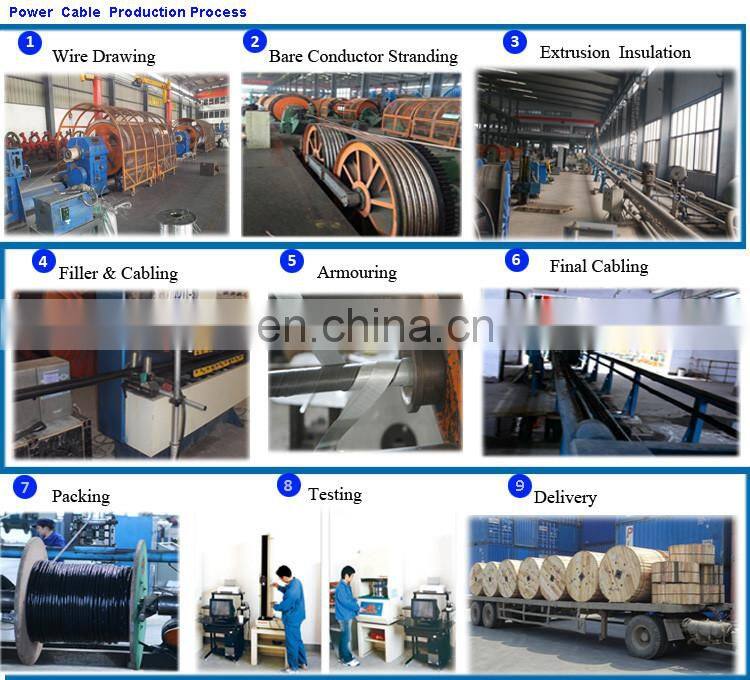

Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.

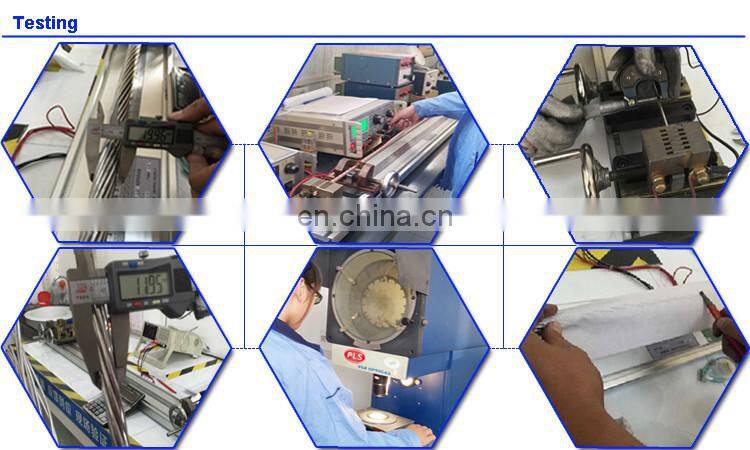

Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable

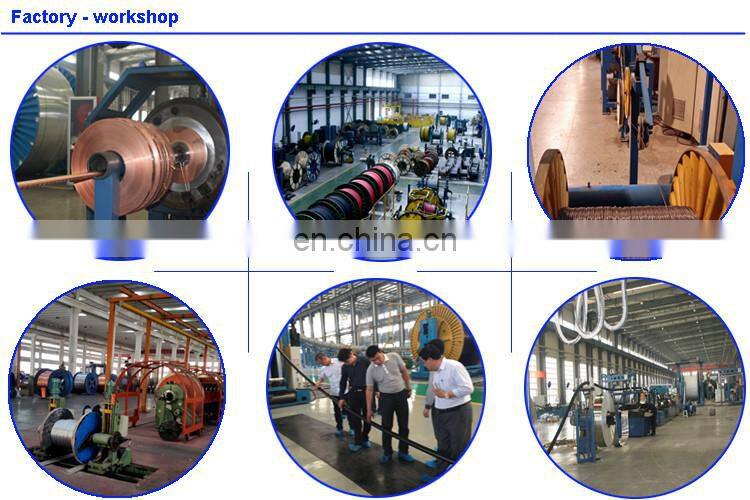

Henan Huadong Cable Co., Ltdis a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km .
Standard 3cx185mm2 cu pvc/pvc cable.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.

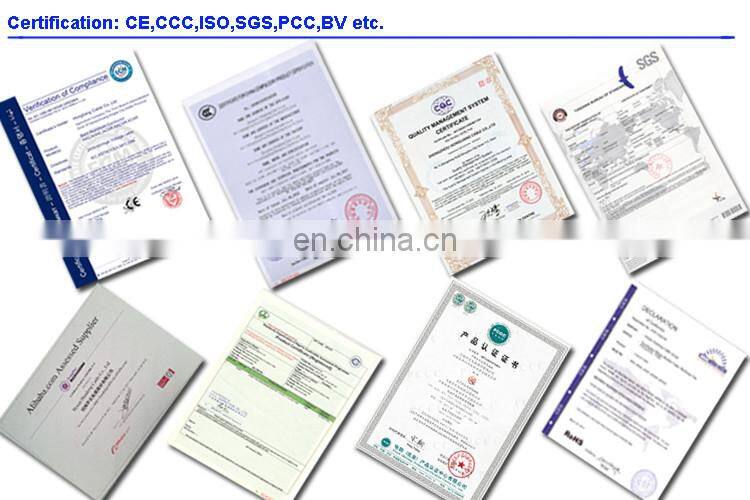

Certificate 3cx185mm2 cu pvc/pvc cable.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
you are welcome at any time .please send me inquiries.
Online: Skype: candy.zhao90
QQ: 2099255911
3cores 185mm2 aluminum conductor YJLV32 armoured 24kv underground cable
