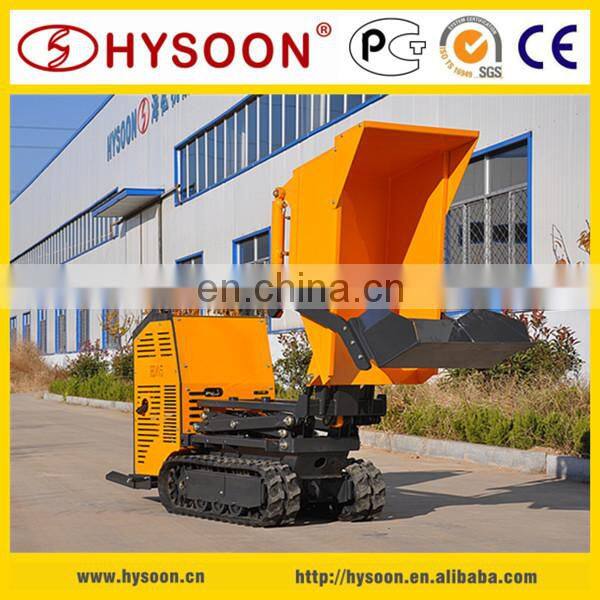

Track Mini Dumper Truck 500kg

1)Size

Total Dimension(L*W*H)

1895mm* 770mm* 1220mm

Bucket size (L*W*H)

1150mm*648mm*515mm

Bucket Capacity

0.2m³

Self Dumping Capacity

0.04m³

2)Engine

Engine type

Gasoline Kohler or Briggs&Stratton

Rated Power (KW)

3)Hydraulic System

Pressure

16Mpa

Operating Load

500kg

System flow

12ml/min

Travel Speed

0-3.5km/h

Hydraulic oil tank capacity

19.4L

Fuel tank capacity

 5.5L

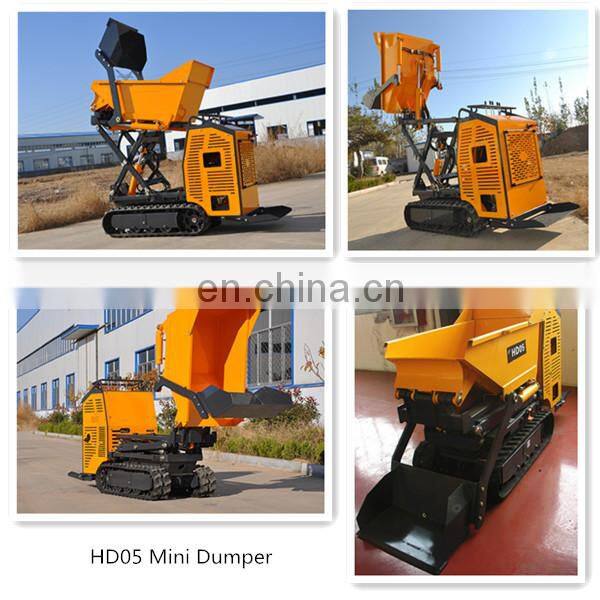

3. HD05 Mini Track Dumper Main Features

Time saving service

1. Integral type Chassis ensures operating and maintaining easily.

2. Complete hydrostatic transmission technology makes the concrete dumper more stability.

3. Thanks to the open-style design of left-side, right-side and back cover guards;

4. Fill the engine oil, exchange air filter conveniently.

5.  All cover guards on operation system can be dismounted quickly, maintance easily.

Compact size

Flexibility performance ensures the mini dumper transport materials in small space.

High efficiency

1. Safe and quick rear dumping.

2. 1447mm ultrahigh dumping height can transport materials to truck etc. tools.

Different choice for Engine

U.S Briggs&Stratton gasoline engine;

Kohler gasoline engine;

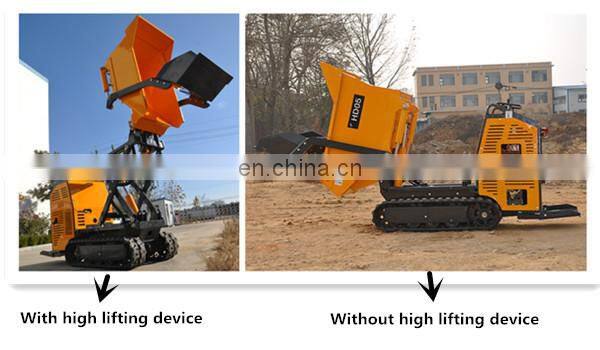

4. With high lifting or not, for optional.

With high lifting device can lift up dumper bucket and dump materials to truck etc.
