Low Price Hysoon Mini Skid Steer Loader With Grapple
- Qingdao or others
- T/T Credit Card
You May Like
-
New Competitive Price Hysoon Mini Skid Steer Loader for Sale
-
Chinese 23hp Mini Skid Steer Loader With Tiller
-
Hysoon HY280 Mini Skid Steer Attachments Concrete Mixer for Sale
-
Hot Sale Cheap Mini Skid Steer Loader Like Toro Dingo
-
Chinese Cheap Garden Farm 4 Wheel Mini Utility Skid Steer Vehicle Equipment
-
Garden Loader Digger Equipment Compact Utility Mini Loader Skid Steer With Auger
Product Details
| Brand Name | HYSOON | Place of Origin | Shandong, China | |
| Model Number | HY380 low price Hysoon mini skid steer loader | Type | Skid Steer Loader | |
| Certification | CE GOST | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12month | Condition | New | |
| Dimension(Long * Breadth * High) | 2206mm*1160mm*1233mm | Moving Type | Wheel Loader | |
| Rated Load | 200kg low price Hysoon mini skid steer loader |
Product Description

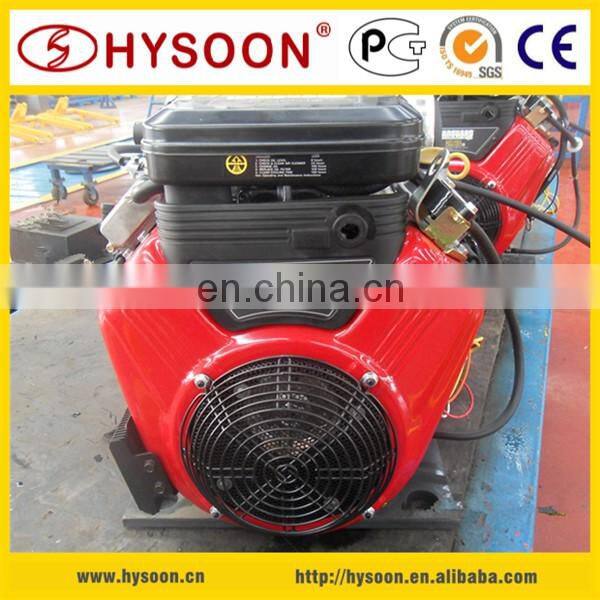

low price Hysoon mini skid steer loader with grapple is with Briggs&stratton gasoline engine,23hp.
low price Hysoon mini skid steer loader with grapple is only 2206mm*1160mm*1233mm,can enter into much narrow space to do works.even enter into your rooms.

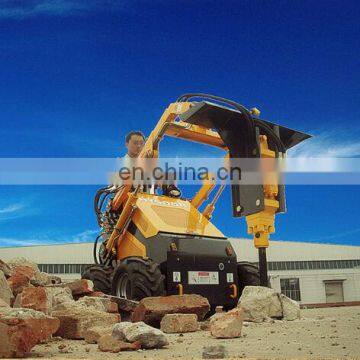

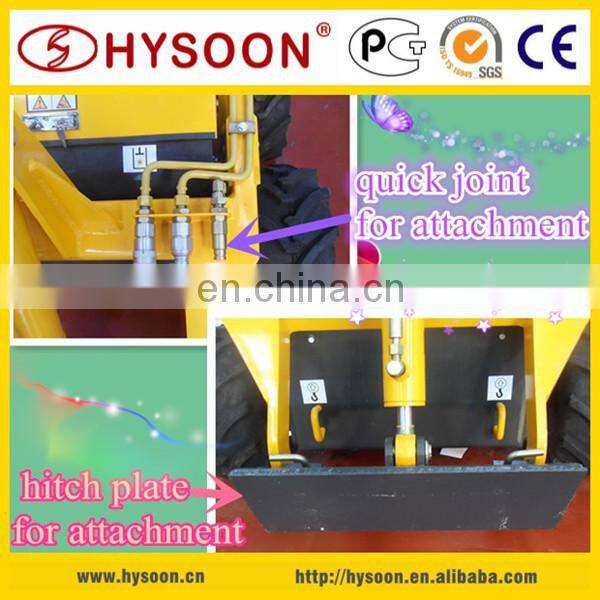

low price Hysoon mini skid steer loader with grapple is multifunction machines,its hitch plate can quickly and easily changing knids of attachments,such as digger,auger drill,backhoe,ripper,rock bucket,sweeper,high dumper,tiller,lawn mower,hydraulic grapple,fork,trencher,4 in 1 bucket,snow blower,leveller,snow blade,cement mixer,hydraulic breaker,trench filler,lawn ripper and so on.
low price Hysoon mini skid steer loader with grapple is easy to operate.

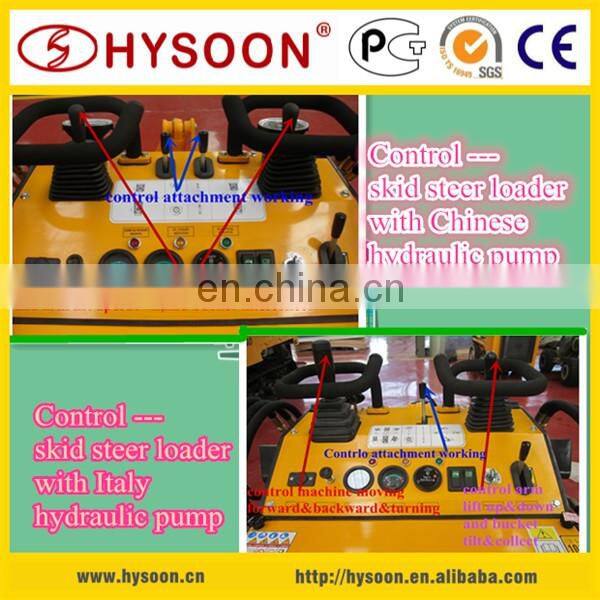

there is four joystick on the standard machine,two joystick for driving and arm lift up&down and bucket tilt&collect,another two joystick for attachment working.
there is three joystick on the machine with Italy hydraulic pump,only one joystick for driving,another joystick for arm lift up&down and bucket tilt&collect,the other joystick for attachment working.
low price Hysoon mini skid steer loader with grapple is easy maintenance,open the front cover,you can see its structure,hydraulic pump,hydrualic motor,fan,easy to change the parts.
And its back protection plate,is also easy to remove,then you can see the Engine,easy to change the filter,engine oil and so on.

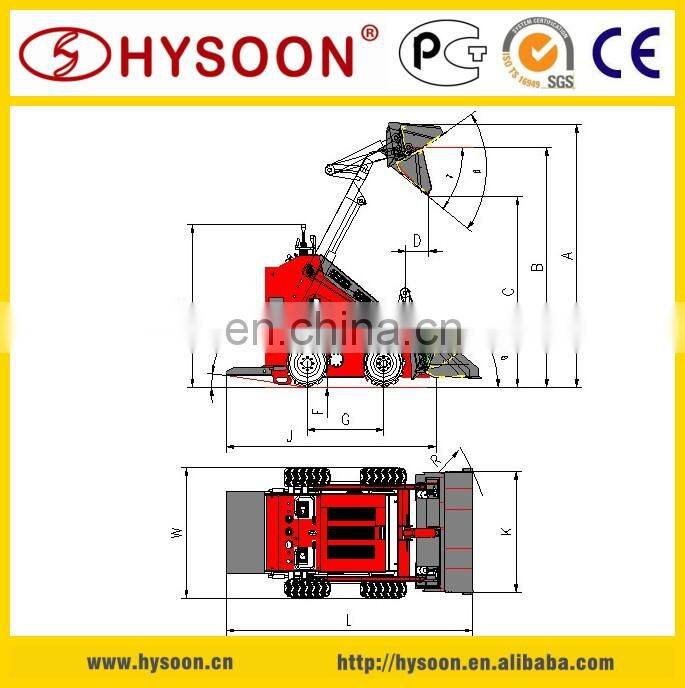

low price Hysoon mini skid steer loader with grapple drawing
low price Hysoon mini skid steer loader with grapple data
With Solid Tyres | With Narrow Tyres | With Turf Tyres | With Chevron Engine Tyres | |
Max working height(A) | 2115mm | 2155mm | 2155mm | 2143mm |
Max Pin Height(B) | 1856mm | 1896mm | 1896mm | 1884mm |
Max Dump Height(D) | 1460mm | 1500mm | 1500mm | 1488mm |
Highest point dump distance(D) | 388mm | 348mm | 348mm | 348mm |
Bucket swing angle(β) | 55° | |||
Bucket dump angle(γ) | 30° | |||
Collection Bucket angle(θ) | 25° | |||
Departure angle(α) | 8° | 12° | 12° | 11° |
Total Height(H) | 1205mm | 1245mm | 1245mm | 1233mm |
Height from the ground(F) | 90mm | 130mm | 130mm | 118mm |
Wheelbase(G) | 636mm | 636mm | 636mm | 636mm |
Length(without bucket)(J) | 1752mm | |||
Total Width(W) | 1033mm | 1033mm | 1183mm | 1033mm |
Bucket Width (K) | 1150mm | |||
Total Length (with bucket)(L) | 2206mm | |||
Turning Radius ® | 1307mm | |||

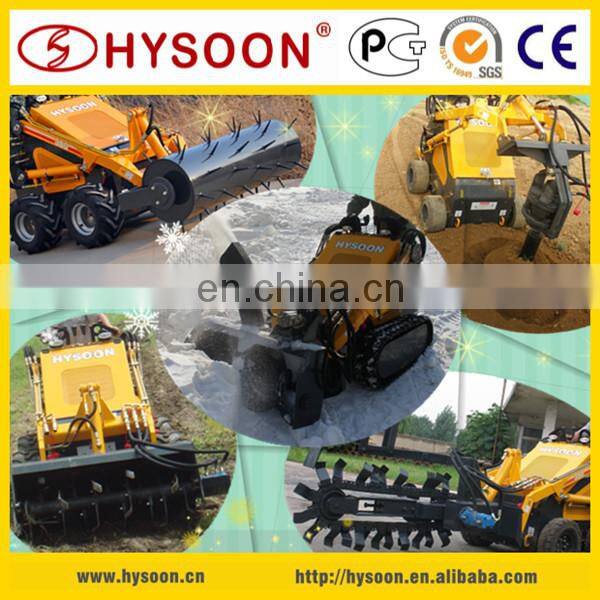

There is more loader attachments can be used with low price Hysoon mini skid steer loader with grapple

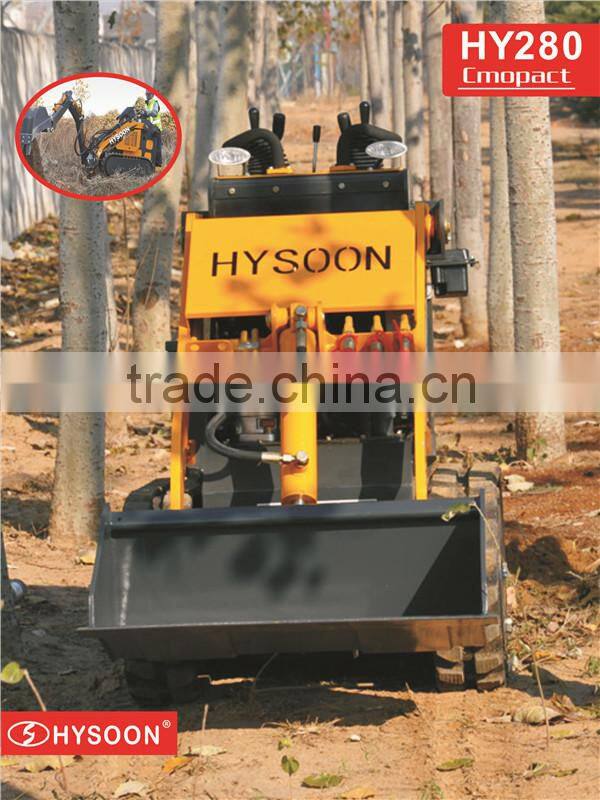

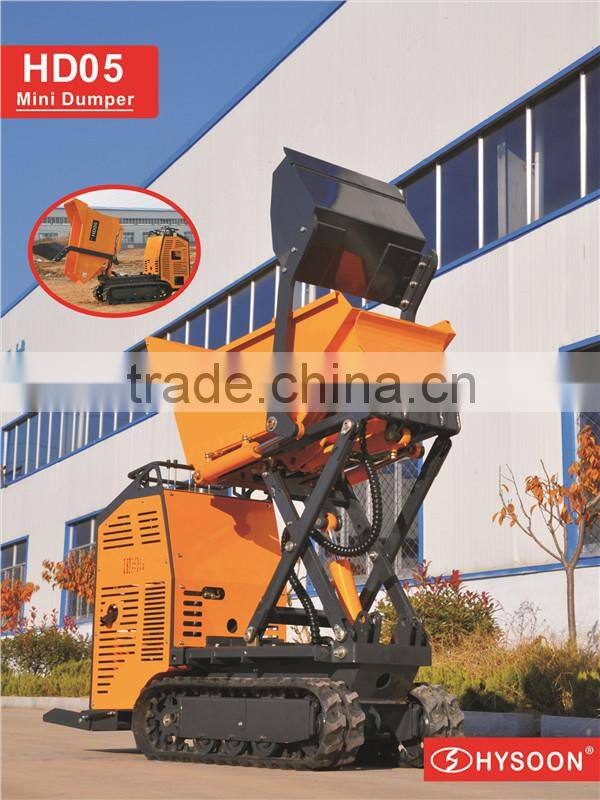

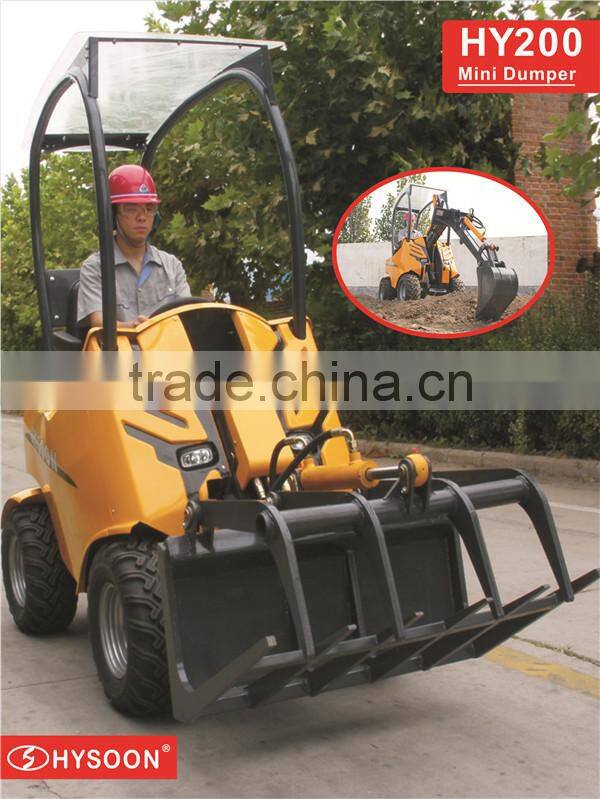

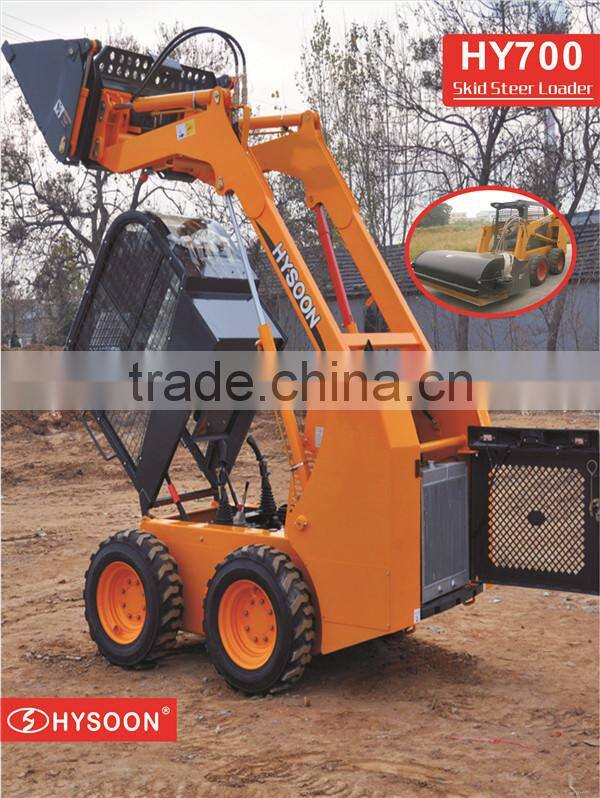

low price Hysoon mini skid steer loader with grapple related products below,

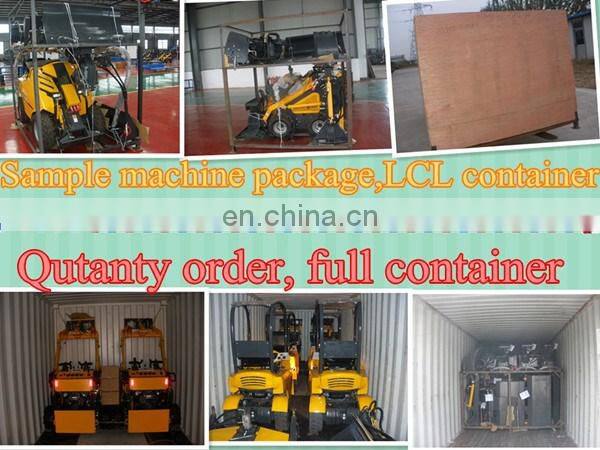

low price Hysoon mini skid steer loader with grapple packing&shipping details,
Sample low price Hysoon mini skid steer loader with grapple will be packed as below,and delivery by LCL container;
Quantity low price Hysoon mini skid steer loader with grapple is without packing,loaded into container directly,
It can load 8sets low price Hysoon mini skid steer loader with grapple in one 20'container.
Taian Hysoon Machinery Co.,Ltd.
is the manufacture of the construction machinery.
We always focus on mini construction equipment,now have a series products.
Wish there is chance to cooperate with you,for win-win.

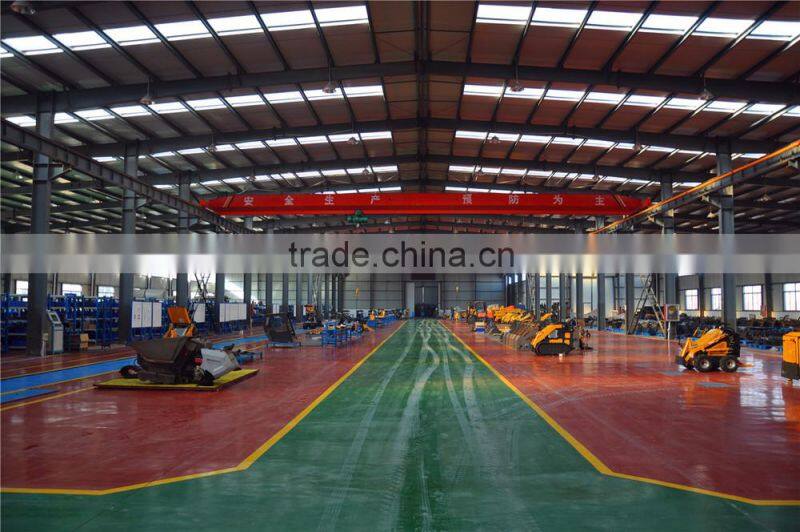

Taian Hysoon Machinery Co.,Ltd. workshop overview
For further info about any Hysoon products,please do kindly contact
