IN STOCK Solenoid Diagnoser common rail injector tester

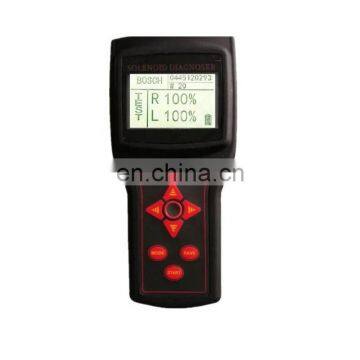

SD-3000 Solenoid Diagnoser

SD-3000 Solenoid Diagnoser is an innovative instrument to diagnose engine solenoids, such as those on injectors and pumps, on-site of a faulty vehicle.
Currently a multimeter was used to measure resistance for a problematic solenoid. Since solenoid coil resistance is very close to the low limit of a multimeter. A partial burned solenoid is almost impossible to be identified by this way.

SD-3000measures both resistance and inductance simultaneously with high accuracies to trouble shoot a solenoid. SD-3000 has redefined the reliable way to check solenoid problems.
SD-3000, the faulty components on the engine can be found much faster and so is the repairing time. SD-3000 can detect solenoid electrical faults, and mechanical faults as well, such as stuck valve. SD-3000 can be used also for checking solenoid condition in a repairing shop.

Features
1,Measure resistance and inductance simultaneously to
trouble shoot solenoid faults
2, Resolution of 0.01ohm for resistance measurement.
3, Build-in database to store more than 1000 components
4, Display test results as relative percentage not the true
values to ease user identify solenoid problem.
5, Powered by 2 AA batteries.

Latest Upgrades
1,High-resolution matrix LCD screen to replace previous 7-segment LCD screen
2, Using manufacture part numbers to index solenoids in database. No need to check the sequential number in the manual to identify solenoid as previous version.
3, Able to add new solenoid data with user editable part number.
4,Three operational modes, TEST, EDIT and NEW
5, Environment temperature compensation to ensure the accuracy for resistance measurement for all seasons.
6,Batter battery power management to extend battery life.
