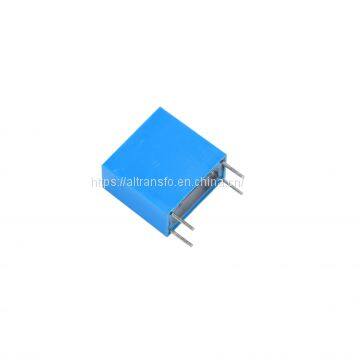

Mini High Precision Current Transformer PCB Mounting Transformer
USD $0.1 - $1.42
/ Piece
100 Pieces(Min.Order)
- shanghai
- T/T L/C D/P D/A PayPal Other
- 10 days
You May Like
-
30A 3000: 1 Small PCB Mount Current Transformer
-
Custom UL Listed 0.5 Class Split Core Type Current Transformer
-
PCB Current Transformer 30A/50A/30mA/50mA PCB Mount Micro Current Transformer
-
50/60Hz PCB Mount Encapsulated Transformer 0.35va-0.45va CE Listed
-
PCB Mounted Encapsulated Transformer with CE Approved
-
50/60Hz PCB Mount Encapsulated Transformer UL Listed
Product Details
| Brand Name | AL TRANSFO | Place of Origin | China | |
| Model Number | AL-CT12 | Usage | Current | |
| Phase | Single | Coil Number | Autotransformer | |
| Coil Structure | Other |
Product Description
Product Description
Solid Core Current Transformer design for better accuracy for 0.333V output .5 standard models for your choice.Solid core CTs are more accurately , small in size, and very cheap .If mA sendary output ,accuracy can be 0.1%
Rated input current from 5A to 400A
The main technical parameters:
| Model | AL-CT |
| Rated input current | 0-20A(100Ω) |
| turns ratio | 2000:1 |
| phase angle error | ≤20' (input 1A,sampling resistor 100Ω) |
| linear range | 0~20A(sampling resistor 100Ω) |
| linearity | 0.2%(5%dot~120%dot) |
| Permissible error | -0.2%≤f≤+0.2% (input 1A,sampling resistor 100Ω) |
| application | current and power measurement |
| isolation voltage | 4500V |
| Encapsulation | Epoxy |
| installation | PCB mounting(Pin length>3mm) |
| operating temperature | -40oC~+85oC |
Features:
Epoxy encapsulated and has a polypropylene resin case
RoHs compliant
-High sensitivity
-Close to zero load shift and zero phase shift
-Excellent in balance
-Perfect in temperature stability
-Small change in output voltage
Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
