Acrel 300286 ASL100-S8/16 KNX System 8 Channel Switch Control for Smart Lighting
- T/T Credit Card
You May Like
-
Acrel ASL100-S2/16 KNX Bus 2 Channel Smart Lighting Driver
-
Acrel ASL100-S4/16 KNX System 4 Channel Control Driver for Smart Lighting
-
Acrel ASL100-S2/16 KNX Bus Switch Driver for Smart Lighting
-
Acrel ASL100-S4/16 KNX System 4 Channel Switch Control for Smart Lighting
-
Acrel ASL100-S8/16 KNX System Switch Driver for Smart Lighting
-
Acrel ASL100-S12/16 KNX Bus Smart Lighting Switch Driver
Product Details
| Brand Name | ACREL | Place of Origin | China | |
| Max. Load Power | 100~250 |
Product Description
1. Overview
ASL100-Sx/16 series of switch driver (hereinafter referred to as driver) is Acre-bus output control module. The product meets the rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted to achieve intelligent lighting control of large buildings and public buildings. The latest single-chip microcomputer technology is adopted by the module. Thus, the module is an intelligent control module with high stability and reliability, such as smart panel and dry node that achieving intelligence of lighting control. The driver controls the on and off of high voltage circuit by the communication bus. 30V DC voltage is used for module power supply at the communication end and is used for system communication. The relay controls the mains on and off by the relay at the output end. The module is applicable to the resistance, inductance and capacity load.

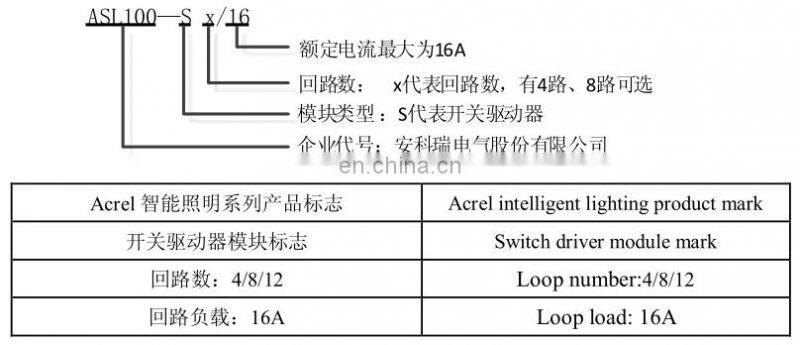

2. Specification and model

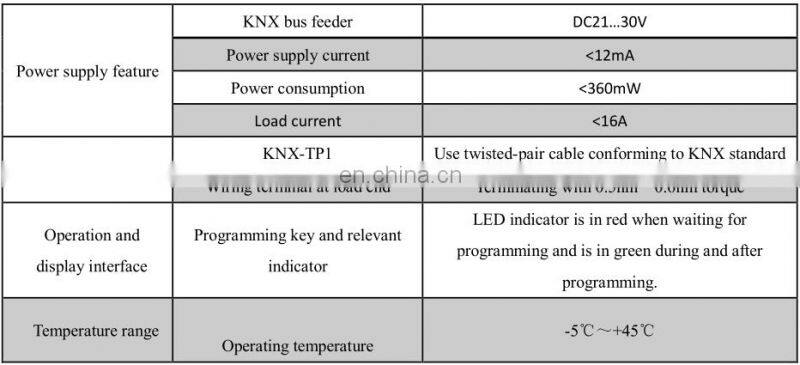

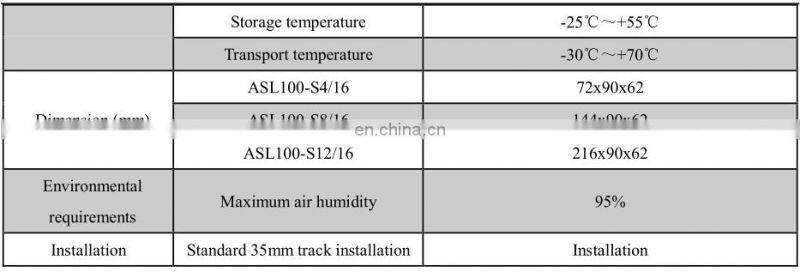

3. Technical parameters

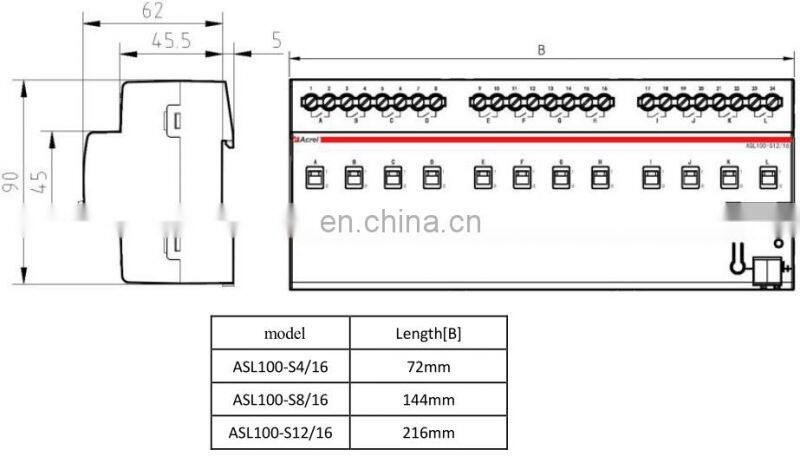

4. Configuration
Installation notes: this module is applicable to 35mm track installation. You just need to clamp the module into the track for installation.

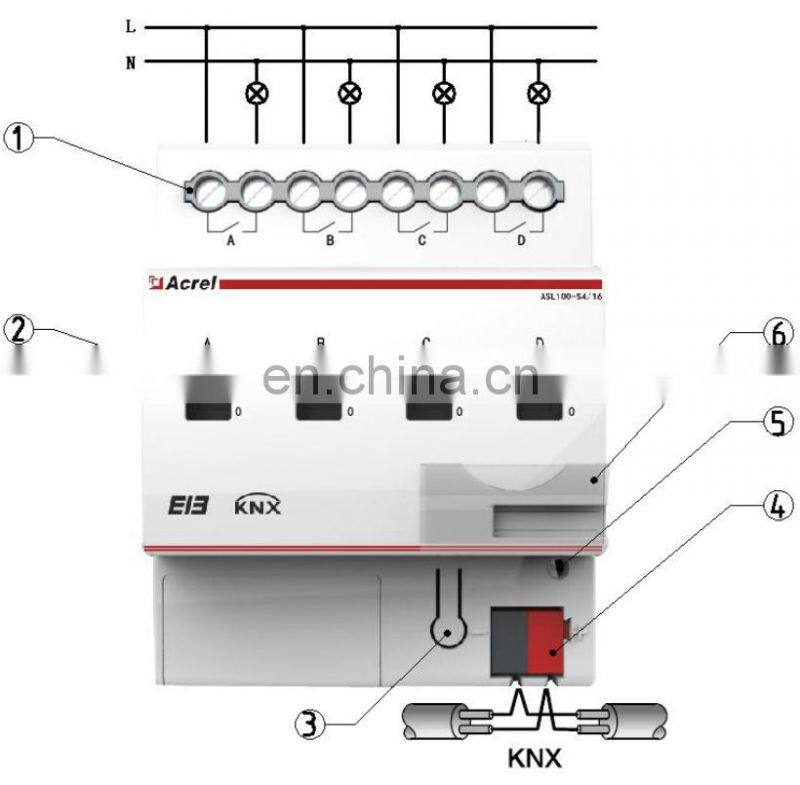

5. Electric wiring diagram
Mains input terminal
Relay manual operation hole
Programming key
KNX bus terminal
Running and programming indicator
Label
