Home > Products > DC Power Meter > ASL100-SD2/16 Acrel 300286.SZ dimming of LED lights 0-10V dimming driver

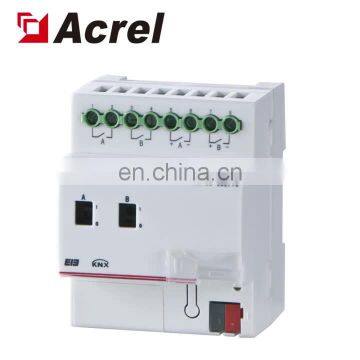

ASL100-SD2/16 Acrel 300286.SZ dimming of LED lights 0-10V dimming driver
US$ 165.9 - 165.9
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
ASL100-SD2/16 Acrel 300286.SZ low voltage halogen lamps 0-10V dimming driver
-
ASL100-SD2/16 Acrel 300286.SZ centralized control 0-10V dimming driver
-
ASL100-SD4/16 Acrel 300286.SZ lighting manual control system 0-10V dimming driver
-
Acrel ASL100-SD4/16 schools lighting control system 0-10V dimming driver/ KNX switch actuator
-
ASL100-SD4/16 Acrel 300286.SZ Bridges and tunnels lighting control system 0-10V dimming driver
-
ASL100-SD4/16 Acrel 300286.SZ time control lighting control system 0-10V dimming driver
Product Details
| Brand Name | Acrel | Place of Origin | Jiangsu, China | |
| Model Number | ASL100-SD2/16 |
Product Description
Overview
0-10V dimming driver controls the load on-off as the diming module and outputs 0-10V dimming signals. The dimmer receives the con
trol message from the bus and then executes the corresponding actions according to the set parameters. With ETS programming, the d
immer can realize multiple control functions. The high voltage line is not changed and the lighting control is changed.
trol message from the bus and then executes the corresponding actions according to the set parameters. With ETS programming, the d
immer can realize multiple control functions. The high voltage line is not changed and the lighting control is changed.
Technical Parameters
Power supply feature | KNX bus feeder | DC21~30V | |||||
Power supply current | ＜12mA | ||||||
Power consumption | ＜360mW | ||||||
Load current | ＜16A | ||||||
External connection | KNX-TP1 | Use twisted-pair cable conforming to KNX standard. | |||||
Wiring terminal at load end | Terminating with 0.5nm~0.6nm torque | ||||||
Operation and display interface | Programming key and relevant indicator | LED indicator is in red when waiting for programming and is in green during and after programming. | |||||
Temperature range | Operating temperature | -5℃~+45℃ | |||||
Storage temperature | -25℃~+55℃ | ||||||
Installation | Standard 35mm track installation | ||||||
Manual Control
Auto Control
Scene Control
Time Control
Centralized Control
