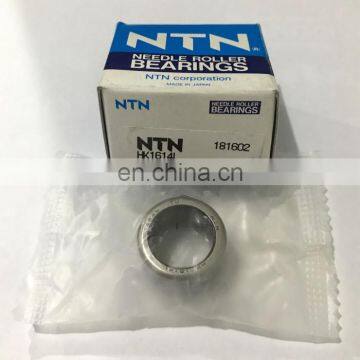

Import Japanese Ntn Brand Flat Cage HK1614 Sealed Drawn Cup Needle Roller Bearing HK 1614 RS Size 16x22x14mm
US$ 0.3 - 1.5
/ Piece
100 Pieces(Min. Order)
- Guangdong Qingdao
- T/T Credit Card
You May Like
-
Automobile Car Parts HF Type One Way Roller Clutch HF3520 HF 3520 Drawn Cup Needle Roller Bearing Size 35x42x20
-
Price List Ntn Japan Bearings HK HMK Type Drawn Cup Needle Roller Bearing HK4516 Size 45x52x16mm
-
Motorcycle Engine Parts Drawn Cup Type HK Series HK4016 Auto Needle Roller Bearing TLA4016Z Size 40x47x16mm
-
Catalogue America Ntn HK HMK Type HK5020 Drawn Cup Needle Roller Bearing HK 5020 Size 50x58x20mm
-
Daftar Harga Bearing Ntn Price List HK HMK Series HK1516 Miniature Needle Roller Bearing HK 1516 Size 15x21x16mm
-
Open Ends Drawn Cup Type HK Series HK1210 Cylindrical Roller Needle Bearing Price TLA1210Z Size 12x16x10mm
Product Details
| Brand Name | NTN, BHR, OEM | Place of Origin | Shandong, China | |
| Model Number | HK1614 | Number of Row | Single Row | |
| Seals Type | Open bearing | Precision Rating | P0 P6 P5 P4 precision bearing |
Product Description
import japanese ntn brand flat cage HK1614 sealed drawn cup needle roller bearing HK 1614 RS size 16x22x14mm
Product Description
Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life.
BHR supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and applications.
1. Needle roller and cage assembly
2. Drawn cup needle roller bearings
3. Needle roller bearings with machine rings
4. Alignment needle roller bearings
5. Universal joint bearings
6. Combined needle roller bearings
7. Needle roller thrust bearings
8. Cam follower, track rollers
Specifications: HK1614 ntn drawn cup needle roller bearing | |
Fw | 16mm |
D | 22mm |
C | 14mm |
r min | 0.8mm |
Mass | 13g |
Roller bearing type | needle roller bearing |
number or row | single row |
Bearing material | steel bearing |
Bearing closure type | sealed bearing 2RS |
Precision rate | grade p4 p5 p6 p0 |
Needle roller bearing size
| Shaft | Bearing | Mass | Dimensions (mm) | Basic Load Ratings | Limiting | ||||
| Diameter | P.No. | Fw | D | C | r | Cr | Cor | Speed | |
| mm | g | min. | kN | kN | rpm | ||||
| 5 | NK 5/10TN | 3.1 | 5 | 10 | 10 | 0.15 | 2.5 | 2 | 37000 |
| NK 5/12TN | 3.7 | 5 | 10 | 12 | 0.15 | 3.05 | 2.99 | 37000 | |
| 6 | NK 6/10TN | 4.7 | 6 | 12 | 10 | 0.15 | 2.33 | 2.2 | 33000 |
| 6 | NK 6/12TN | 5.7 | 6 | 12 | 12 | 0.15 | 3.3 | 3.45 | 33000 |
| 7 | NK 7/10TN | 6.9 | 7 | 14 | 10 | 0.3 | 3.33 | 3.15 | 31000 |
| NK 7/12TN | 8.2 | 7 | 14 | 12 | 0.3 | 4.19 | 4.24 | 31000 | |
| 8 | NK 8/12TN | 8.7 | 8 | 15 | 12 | 0.3 | 4.1 | 4.3 | 29000 |
| NK 8/16TN | 12 | 8 | 15 | 16 | 0.3 | 4.9 | 5.4 | 29000 | |
| 9 | NK 9/12TN | 10.3 | 9 | 16 | 12 | 0.3 | 4.75 | 5.3 | 28000 |
| 10 | NK 10/12 | 10 | 10 | 17 | 12 | 0.3 | 5.01 | 5.82 | 27000 |
| NK 10/16 | 13 | 10 | 17 | 16 | 0.3 | 6.51 | 8.12 | 27000 | |
| 12 | NK 12/12 | 12 | 12 | 19 | 12 | 0.3 | 6.4 | 7.1 | 25000 |
| NK 12/16 | 16 | 12 | 19 | 16 | 0.3 | 9.1 | 11 | 25000 | |
