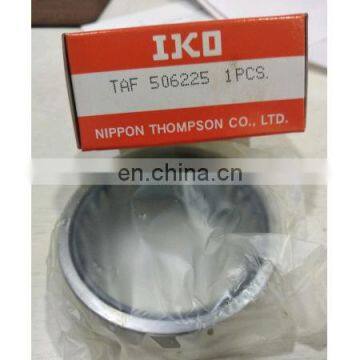

Home > Products > Needle Roller Bearing > Taf 506225 Iko Needle Roller Bearing TAF506225 Size 50x62x25mm Needle Bearing NK50/25
Taf 506225 Iko Needle Roller Bearing TAF506225 Size 50x62x25mm Needle Bearing NK50/25
- Guangdong Qingdao
- T/T Credit Card
You May Like
-
Import Japan Brand TAFI 456225 NKI 45/25 Machined Rings Needle Roller Bearing Iko Bearings Size 45x62x25
-
bh Needle Roller Bearing K 5X8X8 29241/5 for Roller Bearing Housing From Roller Bearings Supplier
-
Ceramic Needle Roller Bearing K 6X9X8 With Mini Bearing Rollers Size
-
Japan Brand Nsk Ntn Needle Roller Bearing K 15X19X10 High Quality Ceramic Skateboard Bearings
-
Brand Price Needle Roller Bearing K 16X20X10 Sample Free of Charge Needle Bearing for Fingerboard
-
Needle Roller Bearing k 17x21x10 High Quality Bearings Size 17x21x10mm Japan Brand Ntn Koyo for Sale
Product Details
| Brand Name | IKO, BHR, OEM | Place of Origin | Shandong, China | |
| Model Number | TAF506225 | Number of Row | Single Row | |
| Seals Type | Open bearing | Precision Rating | P0 P6 P5 P4 precision bearing |
Product Description
taf 506225 iko needle roller bearing TAF506225 size 50x62x25mm needle bearing NK50/25
Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life.
BHR supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and applications.

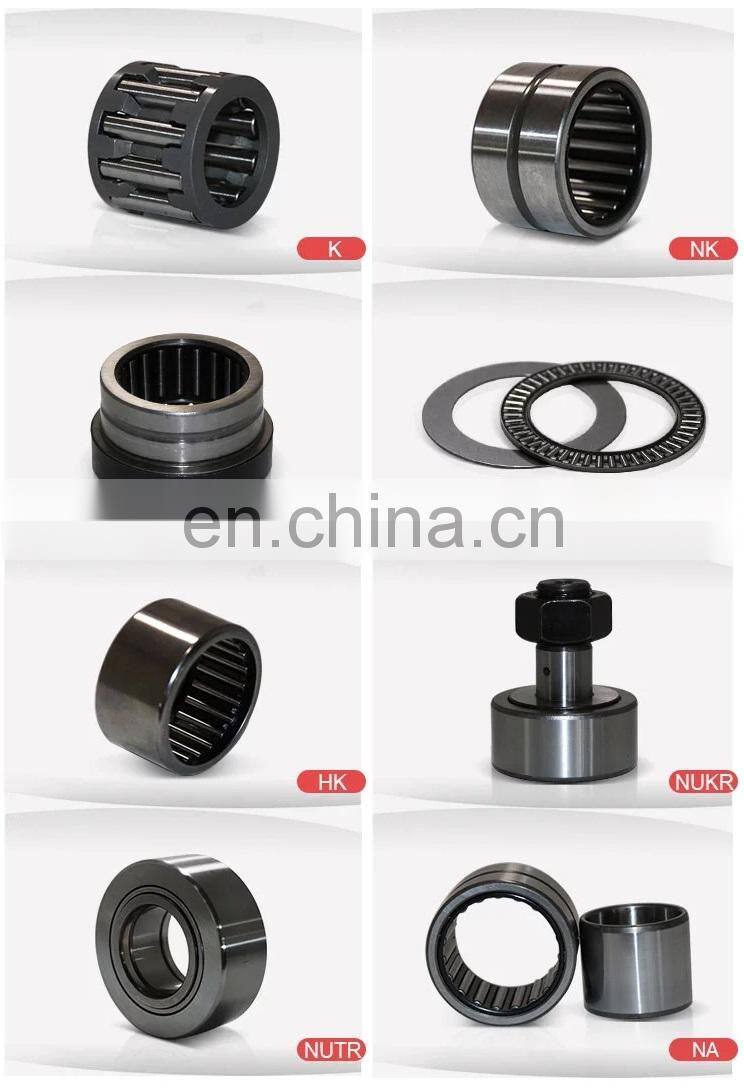

1. Needle roller and cage assembly
2. Drawn cup needle roller bearings
3. Needle roller bearings with machine rings
4. Alignment needle roller bearings
5. Universal joint bearings
6. Combined needle roller bearings
7. Needle roller thrust bearings
8. Cam follower, track rollers
Specifications: TAF506225 iko needle roller bearing | |
Fw | 50mm |
D | 62m |
C | 25mm |
Mass | 0.159kg |
Bearing number of row | single row needle roller bearing |
Needle bearing type | machined ring, without inner ring |
Bearing closuret ype | open bearing, 2RS sealed bearing |
Bearing cage material | steel cage |
Bearing material | steel bearing, stainless steel bearing |
IKO Needle roller bearing size chart
| Shaft | Bearing | Mass | Dimensions (mm) | Basic Load Ratings | Limiting | ||||
| Diameter | P.No. | Fw | D | C | r | Cr | Cor | Speed | |
| mm | g | min. | kN | kN | rpm | ||||
| 5 | NK 5/10TN | 3.1 | 5 | 10 | 10 | 0.15 | 2.5 | 2 | 37000 |
| NK 5/12TN | 3.7 | 5 | 10 | 12 | 0.15 | 3.05 | 2.99 | 37000 | |
| 6 | NK 6/10TN | 4.7 | 6 | 12 | 10 | 0.15 | 2.33 | 2.2 | 33000 |
| 6 | NK 6/12TN | 5.7 | 6 | 12 | 12 | 0.15 | 3.3 | 3.45 | 33000 |
| 7 | NK 7/10TN | 6.9 | 7 | 14 | 10 | 0.3 | 3.33 | 3.15 | 31000 |
| NK 7/12TN | 8.2 | 7 | 14 | 12 | 0.3 | 4.19 | 4.24 | 31000 | |
| 8 | NK 8/12TN | 8.7 | 8 | 15 | 12 | 0.3 | 4.1 | 4.3 | 29000 |
| NK 8/16TN | 12 | 8 | 15 | 16 | 0.3 | 4.9 | 5.4 | 29000 | |
| 9 | NK 9/12TN | 10.3 | 9 | 16 | 12 | 0.3 | 4.75 | 5.3 | 28000 |
| 10 | NK 10/12 | 10 | 10 | 17 | 12 | 0.3 | 5.01 | 5.82 | 27000 |
| NK 10/16 | 13 | 10 | 17 | 16 | 0.3 | 6.51 | 8.12 | 27000 | |
| 12 | NK 12/12 | 12 | 12 | 19 | 12 | 0.3 | 6.4 | 7.1 | 25000 |
| NK 12/16 | 16 | 12 | 19 | 16 | 0.3 | 9.1 | 11 | 25000 | |
