Home > Products > Electric Motor > Motori Electric Monofase 3kw

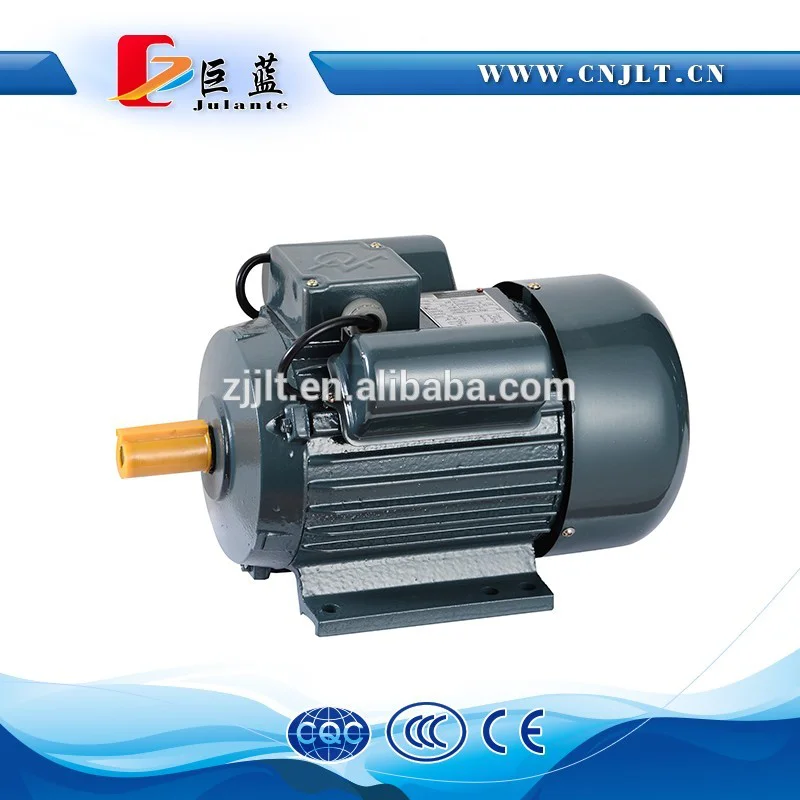

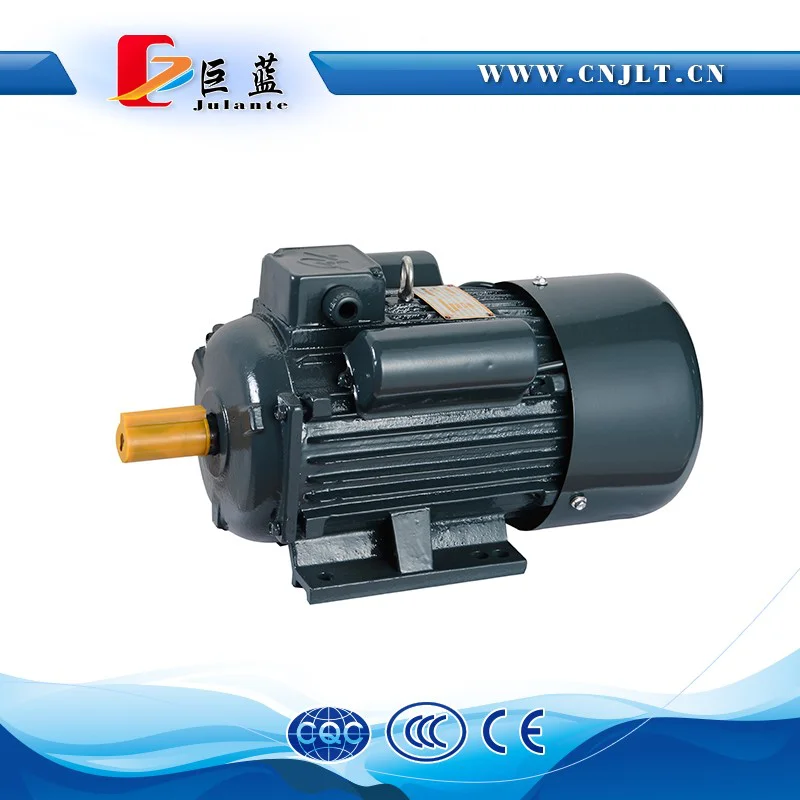

Motori Electric Monofase 3kw
US$ 65 - 70
/ Piece
20 Pieces(Min. Order)
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
Electric Motor 7hp Single Phase Air Compressor
-
225kW 2p High Efficiency High Speed Good Quality Asynchronous AC Electric IE3 300 hp Induction Three Phase Motor
-
YE2-315L1-6 3 Phase Asynchronous AC Motor 110kw 150hp 6 Pole 935rpm Price
-
Electromotor YL8022 1.5HP
-
YE2 Series Three-phase 3kw 1450rpm Induction Motor Better Price
-
Industrial Use YE3 380v Three Phase 315kw 420hp Electric Motor Price
Product Details
| Brand Name | Julante | Place of Origin | Zhejiang, China | |
| Model Number | YL100L-2 |
Product Description
Engineer Online Selection
Products Description

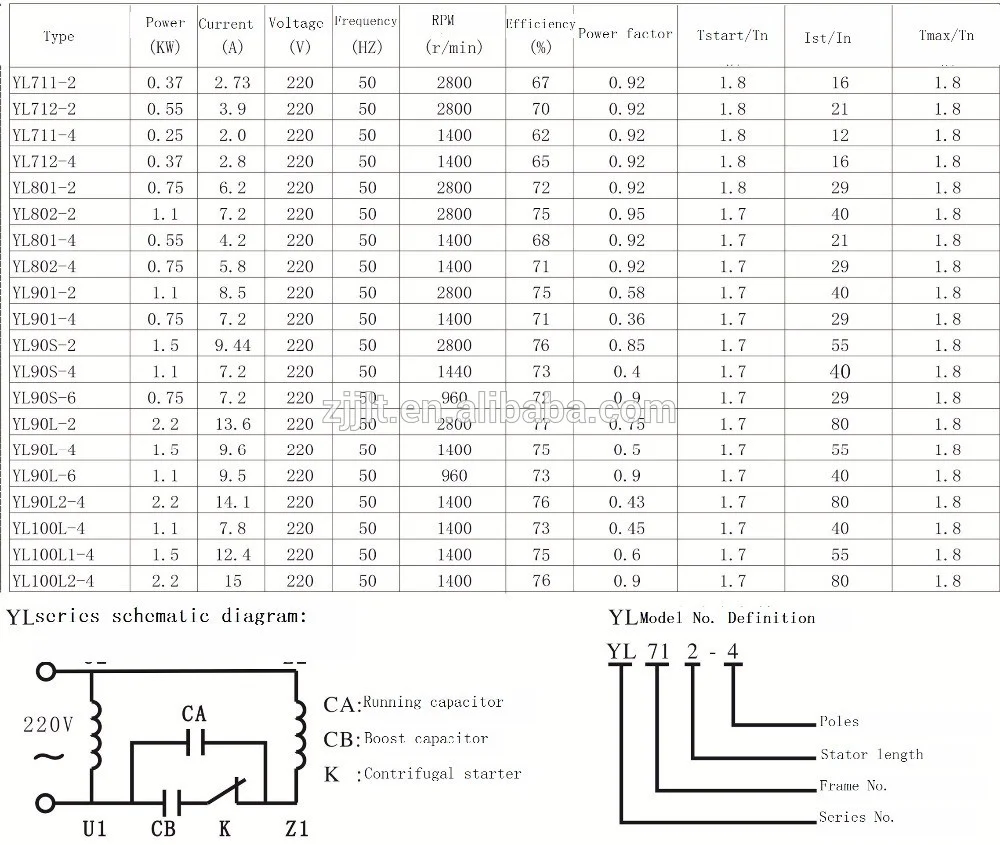

YL series single phase capacitor start and capacitor running electric motor suitable for air compressor, water pump,fiberizer,grinder, mill and other equipment requiring high torque. This series electric motor features by its high starting performance, overload capability, power factor and efficiency, low noise, light weight, little shape and easy maintenance. YL Single-phase double-capacitor asynchronous motor, power at 550~3000watt, starting force at 1.8~2.5 times, overload capacity at 1.8times 2-pole motor speed at 2800 rpm; 4-pole motor speed at 1400 rpm;power frequency 50Hz;Power voltage for three-phase motor at 380V, that for monophase is 220V
2)Rated power:0.25KW-4KW
3)Rated voltage:220V
4)Rated frequency:50Hz/60HZ
5):Material:cast iron,aluminum
6)Revolving speed:2800 rpm or 1400 rpm
7)shape: tubular/squirrel cage/
8)Current: AC
Protection Class: IP44/IP54/IP55
Cooling method: IC411
Insulation Class:B or F
Operation Type: S1
Rated Frequency: 50Hz
Basic Data | ||||
No. | Brand Name: | Julante | ||
1 | Model Number: | YL, YC, YY, YU | ||
2 | Type: | Induction Motor | ||
3 | Structure: | Asynchronous Motor | ||
4 | Place of Origin: | Zhejiang, China (mainland) | ||
5 | Insulation Class: | Class B/F/H | ||
6 | Frequency: | 50HZ | ||
7 | Efficiency: | IE2 & IE3 | ||
8 | Output Power: | 0.18KW-560KW | ||
9 | Phase: | Single Phase | ||
10 | Pole: | 2P, 4P, 6P, 8P, 10P, 12P | ||
11 | Wire: | 100% copper | ||
12 | Protection Class: | IP44/IP54 | ||
13 | Cooling Method: | IC411,IC416,IC0041,IC01,IC611,ICW81A | ||
14 | Duty: | S1 (continuous) | ||
15 | Certification: | ISO, SABS, CE | ||
16 | Protect Feature: | Totally Enclosed | ||
17 | AC Voltage: | 220V or on request | ||
18 | Ambient temperature: | -15°C≤0≤40°C | ||
19 | Altitude: | Not exceed 1000m | ||
20 | Mounting Type: | B3, B5, B35, etc | ||
21 | Standard: | Confirm to IEC international standard | ||
22 | Installation: | we will send detailed instructions together with the Motors | ||
23 | Packaging Details: | Packed with export requirement protect the motors and convenient for transport. | ||
24 | Delivery Details: | 25-30 Days | ||
Product Detailes
Why Choose Us
Our services Pre-sales service:
* We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
* We cooperate with customer to design and develop the new products.Provide all necessary document.
* We are a sales team, with all technical support from engineer team.
After sales service:
* We respect your feed back after receive the goods.
* We promise all spare parts available in lifetime use.
* We lodge your complain within 48hours.
Company Profile
FAQ
1. Q: Are you a factory or trading company?
A: Julante is a factory that has been focusing on motors and accessories for more than 20 years.
2. Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service.but if you use our brand， you will get the amazing price.
3. Q: Can you accept the customized products?
A：Yes， of course.We accept your specific order if you can provide us your specialrequirements or your special samples.
4. Q: How about your service?
A: We have pre-sale service，in-sale service and after-sale service.What we pursue is long-term cooperation，so our principle is customer first.
