Home > Products > blow molding machine > blow molding machine for 100ml to 5000ml plastic bottles

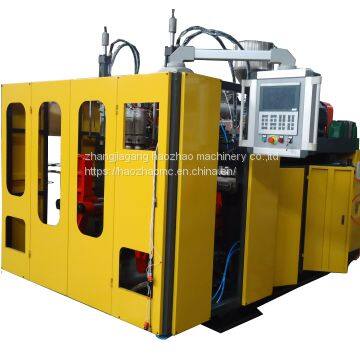

blow molding machine for 100ml to 5000ml plastic bottles
Negotiable
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- shanghai
- T/T L/C
You May Like
Product Details
| Certification | ISO ,CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | one year | Condition | New |
Product Description
| max container capacity | L | 5 | |
| number of die | set | 1.2.3.4 | |
| ouput dry cycle | pc/hr | 1000 | |
| machine dimension | m | 3.3*2.3*2.6 | |
| total weight | ton | 5.8 | |
| clamping force | kn | 68 | |
| platen opening stroke | mm | 200-500 | |
| platen size | mm | 330*370 | |
| move mould stroke | mm | 420 | |
| mould thickness | mm | 205 | |
| motor power of oil pump | kw | 15 | |
| max pressure | mpa | 12 | |
| air pressure | mpa | 0.7 | |
| air consumption | m3/min | 0.6 | |
| average energy consumption | kw | 23 | |
| screw diameter | mm | 70 | |
| screw L/D ratio | L/D | 24 | |
| plasticizing capacity | kg/hr | 70-80 | |
| number of heating zone | zone | 3 | |
| extruder heating power | kw | 14.2 | |
| extruder driving power | kw | 22 | |
| number of heating zone | zone | 3 | |
| power of die heating | kw | 5.7 | |
| max die pin diameter | mm | 135 | |
| center distance of double die | mm | 160 | |
| center distance of tri-die | mm | 110 | |
| center distance of tetra-die | mm | 85 |
