Loop Resistance Tester
- 99 Set / Sets per Month
You May Like
Product Details
| Brand Name | WUHAN HUADIAN HIGH-TECH | Place of Origin | China | |
| Model Number | HLY-100A-H |
Product Description

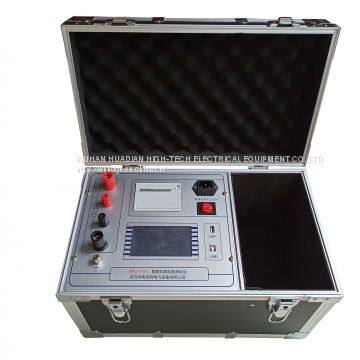

Loop Resistance Tester
Brief introduction
HLY-H Series loop resistance tester is manufactured according to the requirement of 《regulation for electrical equipment handover and preventive test, mensurement and test current of various switching devices conducting loop resistance shall not be less than 100A. HLY-100-600A loop resistance tester applies to high precision measurement of high voltage switch contace resisitance(loop resistance) and other large current and micro resistance measurement field. Loop resistance tester is widely used in electrical manufacturing department, electrical power operation department, scientific researching insititutes and colleges and universities.
Product features
◆High precision loop resisitance tester adopts newest power technique, can continuously output large current
◆Under strong interference, reading is stable and repeatability is good.
◆The maxmium resolution is 0.01μ, is the only contact resistance tester at present in country that the resolution can reach 0.01μ.
◆Use imported high quality CPU, during measurement the system automatically change the measurement range according to the signal.
Product parameters
Model | Measurement Range | Output Current | Measurement Accuracy | Display | Communication Mode | |
HLY-100A-H | 0~1999μΩ | 0~100A | 1μΩ | LED | ||
HLY-200A-H | 0~2999.9μΩ | 50~200A | 0.01μΩ | Large screen liquid crystal display in Chinese | USB or RS232 serial port | Have |
HLY-400A-H | 0~2999.9μΩ | 100~400A | 0.01μΩ | |||
HLY-600A-H | 0~2999.9μΩ | 100~600A | 0.01μΩ |
