SMC Cable Braket
- L/C
You May Like
Product Details
| Brand Name | WAIWAITREE | Place of Origin | China |
Product Description

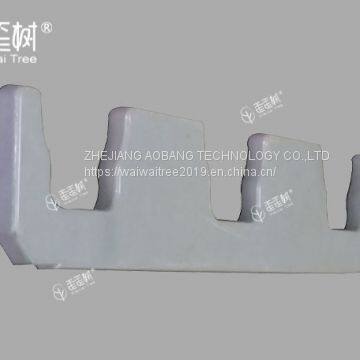

The SMC cable bracket is a combination consisting of a cable bracket, a post and a fixed pin. The material of the column and the pin is also made by the high temperature pultrusion of the FRP composite. The column can be arbitrarily cut length according to the needs, the height of the layer is adjusted, and the assembly is free. The cable bracket has various specifications to meet different lengths and load requirements.
Light weight, high strength, aging resistance, UV protection, more importantly, 1 mm can withstand voltages above 10,000 volts, it is a good insulation material.
Features: high insulation, chemical resistance, high fire resistance, good water resistance, accurate size, stable working performance, light weight, high strength, acid and alkali resistance, waterproof, moisture-proof.
SMC Cable Braket Specification
Project | SMC Cable Braket | Galvanized angle bracket |
Density (g/cm3) | 1.80 | 7.85 |
Specific strength | 167 | 90 |
Corrosion resistance (80°/100h) | 0.012 | 0.023 |
Insulation strength (kv/mm) | 14.0 | Conductive |
Flame retardancy | meets the FH-1 | -- |
Water resistance (%) | 0.11 | -- |
Corrosion resistance | Corrosion、acid、alkali、salt resistant | Corrosive, easy to rust |
insulation | insulation | Conduction |
Mechanical strength | Top force 2.5kN deflection 1.0cm | Top force 2.5kN deflection 1.2cm |
Lateral force 0.5kN | Top horizontal offset 7cm | Top horizontal offset 7cm |
Weight | light | weight |
Eddy current effect (loss) | no | Large loss |
Manufacturing process is difficult | easy | Many processes and long cycle |
Cable outer sheath scraping test | No visible damage | There is a little visible damage |
Raw material | Cheap, resource-rich | More expensive, partially imported |
Maintenance | Free maintenance | 5-7 years need to be repaired once |
Installation process is difficult or easy | Short time and easy to install | Long time, difficult to install |
Use life | 30 years | 10 years |
SMC and BMC composite require heating rather than cooling systems. The temperature of the mold is usually between 130 and 160. It is very important to keep the temperature of the mold and the exhaust gas when designing the mold. The mold is easier to fill, the product is not easy to be deformed, and the surface is better. Commonly used heating systems are steam, oil and electric heating rods.
