Product Details
Brand Name | NSELED | Place of Origin | China |
Product Description

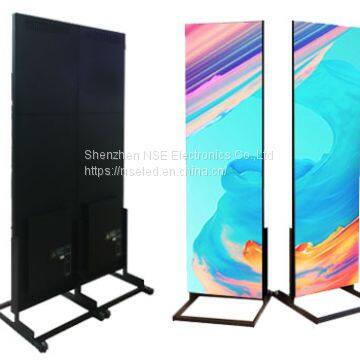

PT LED Poster Series Digital LED Poster Advertising LED Poster China LED Poster Smart advertising led poster
High refresh rate High contrast rate High brightness indoor display solution HD quality Plug & play Device Multiplay mode Multi installation mode
led poster Features
Ultra-slim & Light Design
Ultra-light
Ultra-slim 45mm in thickness
Frame thickness only 1.5mm, LED poster splicing thickness is 3mm almost invisible
The high-end aluminum frame and slim design make the appearance of the whole LED poster simple and generous
The base is equipped with wheels, LED poster can be moved flexibly by one person, saving labor costs and easy transportation.
Plug and play
Zero configuration, quick and easy to install and use the LED poster.
Multimedia input (Multi-video resourece input)
Simple operating
Smart automatic joint
Multi-Screen Splicing
Multi-screen cascade brings a unique visual experience
The NSE digital poster support single-screen mode and split-screen mode. By splicing different numbers of poster screens, it can be applied to the size requirements of various occasions, and it is more novel to attract customers.
6 units reach the golden ratio of 16:9
10 units splicing to achieve 1080p HD performance (P3)
2K and 4K video performance by connecting 10-16 units, and connected by video processor.
Intelligent control method
Support WIFI & HDMI & USB & Newwork control
Built-in asynchronous and synchronous dual-mode media player, support PC&Android devices.
Real-time program support
Equipped with Wi-Fi, Mobile APP management
Support 3G/4G (Optional), Internet remote cluster control
GL tracking functions
8 GB Memory, Expanding memory by U-disk
Support play video in U-disk directly
Realtime zoom in and zoom out without video processor
Exteral Device compatible
Optional light sensor and temperature sensor to control the brightness and making the product more energy-saving
Interactive function
Audio interface
Can be build-in Android board to work with the customer's software
Multiple Installations
High-density digital LED media player Suitable for hanging, wall-mounted, base-standing, bracket standing, and creative splicing installation, as well as horizontal placement installation.
Break the traditional installation method and make the display smarter.
Multiple instllation methods
High-density digital LED media player supports multiple installation methods to meet different application spaces
Hanging installation
Wall-mounted installation
Base-standing installation
Landscape installation
Creative splicing installation
Break the traditional installation method, make the display smarter and attractive.
Customized services
We provide customized services to meet all your project needs
Customized size
Customized frame color
Customized logo
Customized system
Customized design can not only increase brand awareness, but also be more recognizable in the local market, and can also meet the needs of more customers to expand the market and increase sales
Multi applications
Our products are widely used in rental and commercial display, as a smart LED display to replace the traditional roll-up banner.
Commercial: shopping malls, clubs, hotels, airports, stations, restaurants, supermarkets, cinemas, museums, conference rooms, showrooms ect.
Rental: exhibitions, weddings, performances, competitions, events, celebrations, glass windows, stages ect.
High stability
NSE LED poster are designned to meet starndard of US and European market.
Our products are produce in s strict quality insurance system.
We are conducing 100% quality testing for our smart LED product, including high temperature high humididy test, aging test,vibration test and shock test etc.
Full Series products has passed FCC/CE/ROHS Certificate
Easy maintenance
By using high-quality LEDs to reduce light decay and color decay, the service life is longer.
Stanard product design
All parts are replaceable.
Operation guide step by step
Save maintenance time and cost
Online technical support.
Specification
Model Type | PT3 S (standard) | PT3 L (Linkable) |
Pixel pitch | 3 mm | 3mm |
LED Type | SMD 2121 Mat Black | SMD 2121 Mat Black |
Pixel type(R / G / B) | 1R1G1B | 1R1G1B |
Module Pixel | 64 x 64 | 64*64 |
Module Resolution | 4,096 | 4,096 |
resolution (HxW) | 192×640 | 192*640 |
Module size | 192 x 192mm | 192*192mm |
Viewing Distance | ≥ 3 M | ≥ 3 M |
brightness | ≥ 1,000 cd/m2 | ≥ 1,000 cd/m2 |
Ratio | 8192:1/16384:1 | 8192:1/16384:1 |
Viewing Angle | 120° (H)/120°(V) | 120° (H)/120°(V) |
Weight | 35kg | 35kg |
Frame Size | 1930mm(H)X584mm(W)X45mm(T) | 1930mm(H)X584mm(W)X45mm(T) |
Case Material | Aluminum | Aluminum |
Grayscale | 16 bits RGB | 16 bits RGB |
Video frame rate | 60 Hz | 60 Hz |
Refresh rate | > 1,200 Hz | > 1,200 Hz |
Drive mode | 1/16 scan | 1/16 scan |
Input voltage | AC90-240V | AC90-240V |
Maximum Power Consumption | 600W | 600W |
Average Power Consumption | 280W | 280W |
Life Span | ≥ 100,000 Hours | ≥ 100,000 Hours |
MTBF | ≥ 10,000 Hours | ≥ 10,000 Hours |
Application | Indoor/ Semi-Outdoor | Indoor/ Semi-Outdoor |
Control method: | Asynchronous(WIFI/USB/LAN) | Asynchronous(WIFI/USB/LAN/HDMI) |
Temperature Operating (℃) | .-40°~+75° | .-40°~+75° |
Working Humidity | 10%–95%RH | 10%–95%RH |
Power Protection | Over-current/Over-voltage protection | Over-current/Over-voltage protection |
Compliance | CE/ETL/ UL | CE/ETL/ UL |
Joint screen qty(PCS) | 1 | 2 to 10 |
Joint gap(mm) | Less than 3mm | Less than 3mm |
