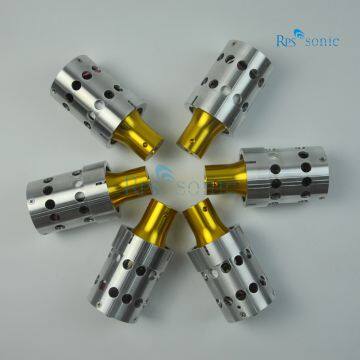

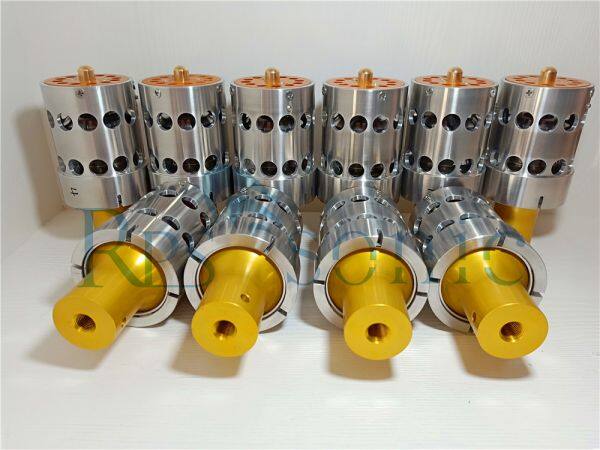

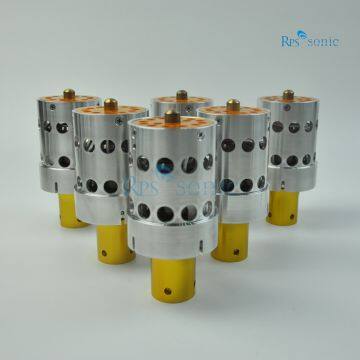

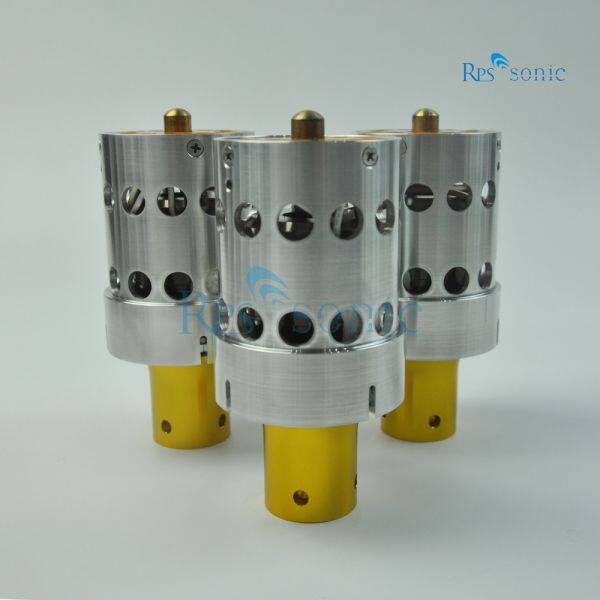

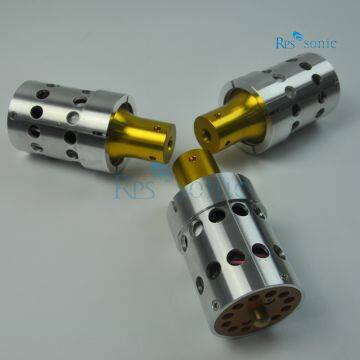

High Quality 20khz Ultrasonic Transducer Replacement 20khz Dukane 110-3122 for Ultrasonic Welding Machine
Negotiable
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T PayPal Other Cash
You May Like
-
Ultrasonic Converter Dukane Type 20kHz Transducer For Welding Cleaning Machine
-
20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding
-
High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing Replacement Dukane 110-3122
-
Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry
-
Standard Type Ultrasonic Welding Machine With High Rigidity Structure And Latest Control
-
20 Khz Ultrasonic Plastic Welder Equipment / Portable Spot Welding Machine
Product Details
| Brand Name | RPS-SONIC | Place of Origin | China | |
| Model Number | TD20-110-3122 | Usage | Other, Ultraosnic welding | |
| Theory | Capacitance Sensor | Output | Digital Sensor |
Product Description

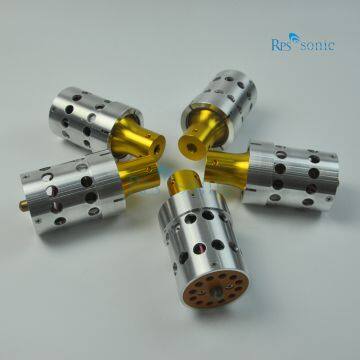

The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
| Item No | Connect Screw (Size) | Ceramic diameter (mm) | Qty of ceramic (PC) | Frequency(khz) | Resistance(?) | Color of ceramic | Capacitance | Input Power (W) |
| Branson CJ20 | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 3300 |
| Branson 502 | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 3300 |
| Branson 402 | M8*1.25 | 25 | 4 | 39.60 | 10 | Yellow | 4200 | 800 |
| Branson 4TH | M8*1.25 | 25 | 4 | 39.90 | 10 | Yellow | 4200 | 800 |
| Branson 902 | 1/2-20UNF | 40 | 4 | 19.85 | 10 | Yellow | 8000 | 1100 |
| Branson 922J | 1/2-20UNF | 50 | 6 | 19.90 | 10 | Yellow | 20000 | 2200 |
| Dukane 40K | M8*1.25 | 35 | 2 | 39.80 | 5 | Gray | 3000 | 800 |
| Dukane 20K | 1/2-20UNF | 50 | 2 | 19.50 | 10 | Yellow | 11000 | 2000 |
| Dukane 110-3122 | 1/2-20UNF | 50 | 4 | 19.50 | 10 | Yellow | 11000 | 2000 |
| Dukane 110-3168 | 1/2-20UNF | 45 | 2 | 19.50 | 10 | Yellow | 4000 | 800 |
| Rinco 35K | M8*1.25 | 25 | 2 | 34.80 | 50 | Yellow | 2000 | 900 |
| Rinco 20K | M16*2 | 50 | 2 | 19.90 | 50 | Yellow | 5000 | 3000 |
| Telsonic 35K | M8*1.25 | 25 | 4 | 35.00 | 5 | Yellow | 4000 | 1200 |
| Telsonic 20K | 1/2-20UNF | 50 | 4 | 20.00 | 3 | Yellow | 10000 | 2500 |

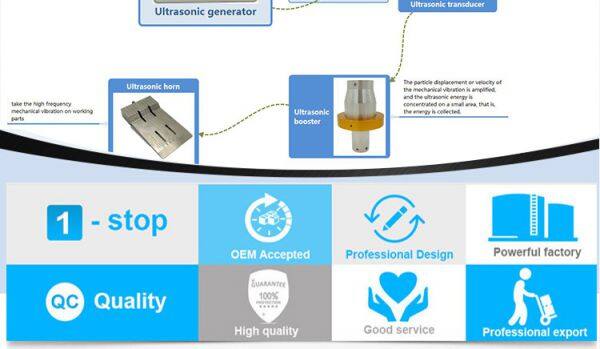

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
