- Jinzhou Kaimei Power Co.,ltd
-
Jinzhou, Liaoning, China
- Main products: super capacitor

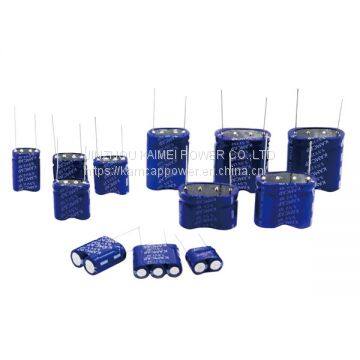

5.5V High Temperature Series
- T/T PayPal
- 2 days
You May Like
Product Details
| Brand Name | KAMCAP | Place of Origin | China |
Product Description
Kam also has 5.5v high temperature series ultracapacitors for sale. The following information can help you know more about this supercap capacitor series.
Performance characteristics: High temperature 85 ° C series
High temperature capacitors Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
high temp capacitors specification sheet
Series name | HT Combined series |
Type name | HT-5R5 |
Rated voltage VR | 5.5V |
Surge voltage | 5.8V |
Capacity range | 0.5F~10F |
Operating temperature range | -40 ~ +85℃ |
Product life | Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
High temperature endurance life: 85 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
HT -5R5(Connection plate)
Model | Capacity F | ESR mΩ | Product size (mm) | ||||
DC | AC 1kHz | Width | Length | Height | Pitch | ||
HT-5R5-Z334VYL06 | 0.33 | 2200 | 1100 | 8.5 | 16.5 | 15 | 12 |
HT-5R5-Z474TYL16 | 0.47 | 2200 | 1100 | 7 | 13.5 | 12 | 9 |
HT-5R5-Z474VYL06 | 0.47 | 1200 | 600 | 8.5 | 16.5 | 15 | 12 |
HT-5R5-Z105VYL07 | 1.00 | 960 | 480 | 8.5 | 16.5 | 22 | 12 |
HT-5R5-Z155VYL07 | 1.50 | 560 | 280 | 8.5 | 16.5 | 22 | 12 |
HT-5R5-Z155VYL13 | 1.50 | 560 | 280 | 10.5 | 20.5 | 22 | 15.3 |
HT-5R5-Z205VYL13 | 2.00 | 400 | 200 | 10.5 | 20.5 | 22 | 15.3 |
HT-5R5-Z205VYL09 | 2.00 | 360 | 180 | 13 | 25.5 | 23 | 17.8 |
HT-5R5-Z255TYL07 | 2.50 | 360 | 180 | 8.5 | 16.5 | 22 | 12 |
HT-5R5-Z255VYL13 | 2.50 | 360 | 180 | 10.5 | 20.5 | 22 | 15.3 |
HT-5R5-Z255UYL04 | 2.50 | 360 | 180 | 8.5 | 16.5 | 26 | 12 |
HT-5R5-Z305VYL13 | 3.0 | 300 | 150 | 10.5 | 20.5 | 22 | 15.3 |
HT-5R5-Z355VYL09 | 3.50 | 280 | 140 | 13 | 25.5 | 23 | 17.8 |
HT-5R5-Z355UYL13 | 3.50 | 280 | 140 | 10.5 | 20.5 | 22 | 15.3 |
HT-5R5-Z405VYL09 | 4.0 | 240 | 120 | 13 | 25.5 | 23 | 17.8 |
HT-5R5-Z505UYL11 | 5.0 | 240 | 120 | 10.5 | 20.5 | 27 | 15.3 |
HT-5R5-Z505VYL09 | 5.0 | 220 | 110 | 13 | 25.5 | 23 | 17.8 |
HT-5R5-Z505VYL10 | 5.0 | 220 | 110 | 13 | 25.5 | 27 | 17.8 |
HT-5R5-Z505VYL12 | 5.0 | 220 | 110 | 10.5 | 20.5 | 32 | 15.3 |
HT-5R5-Z505VYL19 | 5.00 | 220 | 110 | 13 | 25.5 | 36 | 17.8 |
HT-5R5-Z605VYL19 | 6.0 | 160 | 80 | 13 | 25.5 | 36 | 17.8 |
HT-5R5-Z905UYL10 | 9.0 | 120 | 60 | 13 | 25.5 | 27 | 17.8 |
HT-5R5-Z106VYL19 | 10 | 120 | 60 | 13 | 25.5 | 36 | 17.8 |
HT-5R5-Z106VYL21 | 10 | 120 | 60 | 16.5 | 32.5 | 28 | 24 |
HT-5R5-Z126VYL21 | 12 | 120 | 60 | 16.5 | 32.5 | 28 | 24 |
Super capacitor Typical Application
Series | Application range | Instance |
SP, LR, HP, HT | Backup power | RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc. |
SE, HP, HE | Energy storage | Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment |
SE Coin type, HE | Energy storage | Flashlights, water meters, gas meters, taillights, small appliances, etc. |
HP、LR | High power support | Wind power, locomotive start, ignition, electric vehicles, etc. |
MK | Backup power High current operation | Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system |
