Home > Products > RE Series > Crossed roller slewing rings made in china RB60040 with size 600X700X40mm

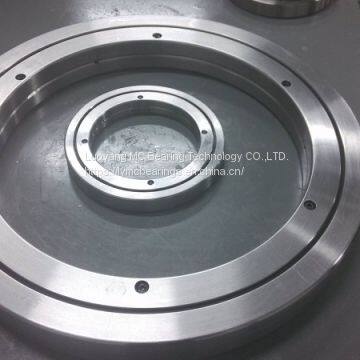

Crossed roller slewing rings made in china RB60040 with size 600X700X40mm
USD $20 - $50
/ Piece
1 Piece(Min. Order)
- Shanghai,Qingdao
- T/T Other
- 3 days
You May Like
-
Crossed roller slewing rings made in china RB24025 with size 240X300X25mm
-
Crossed roller slewing rings made in china RB30040 with size 300X405X40mm
-
Crossed roller slewing rings made in china RB1000110 with size 1000X1250X110mm
-
Crossed roller slewing rings made in china RB45025 with size 450X500X25mm
-
Crossed roller slewing rings made in china RB5013 with size 50X80X13mm
-
Crossed roller slewing rings made in china RB50025 with size 500X550X25mm
Product Details
| Brand Name | LYMC | Place of Origin | China | |
| Model Number | RB 60040 | Number of Row | Single Row | |
| Seals Type | open | Precision Rating | P4,P5,P2 | |
| Outside Diameter | 600, 700 | Bore Size | , |
Product Description
Crossed Roller Bearing RB60040 with size 600X700X40mm information:
The outer ring diameter:700mm
The inner ring diameter:600mm
The thickness diameter:40mm
dynamic load rating C (Kn):264
Static load ratingCo(Kn):721
Weight:29kg
Seals type:double seals
Precision rating:P2 P4 P5
Material:Steel GCr15
Package:wooden box
Delivery Time: 3 days in stock
RE CROSS ROLLER BEARING SERIES FEATURE:
Since the mounting holes are provided, this model does not require a presser flange or housing .In addition because it has an integrated inner/outer ring structure and is equipped with washers ,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner-ring rotation and outer-ring rotation.
High quality cross roller bearing
With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
If you interesting the type cross roller slewing bearing RB60040 with size 600X700X40mm,welcome inquiry me freely.
