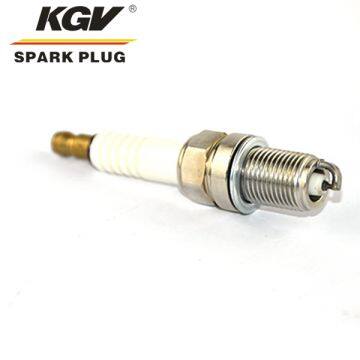

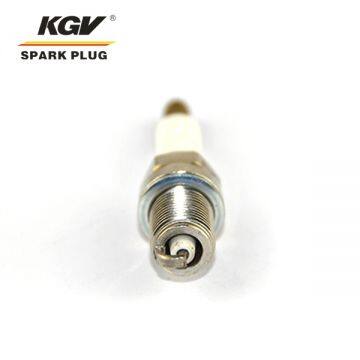

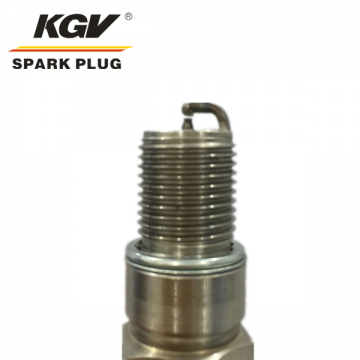

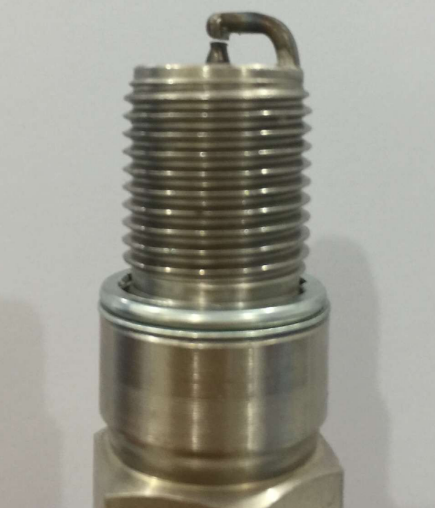

ISO Generator Spark Plug LX07 Champion RB77WPCC

DETAIL INFORMATON

Model：LX07--------------------------------------Gap：0.3mm

Thread Size：M18x1.5---------------------------Heat Range：77

Reach：20.6mm (13/16”)-----------------------Electrode Type："J" Gap electrode

Hex：7/8”(22.2mm)-----------------------------Resistor：yes

Seat Type：Gasket-------------------------------Center Electrode Materical：Iridium

Ground Electrode Material：Iridium

PRODUCT DESCRIPTION

Cross reference:

CAT: 3016663 4797702 194-8518
Champion RB77WPCC
BOSCH 7301  7306
BERU 18GZ6-77-2
DENSO GI3-1, GI3-3 GI3-5
ALTRONIC L1863IP
BG RB777-1
Waukesha 69919D　69919Z
Cummins 4098162
Guascor 7664292

Application Engine:

Caterpillar: G3500, G3600 series
Cummins: Q19G,
Guascor: FG180, FGLD180, FG240, FGLD240, FGLD360, FGLD480, SFGLD560
Jenbacher: 612 12-cyl after 9/95, J616 16-Cyl after 9/95
Perkins: 4000 Series
Superior: 1706G2, 1712G1
Wartsila: W25SG, W28SG, W34SG, 20V34SG
Waukesha: 9390GL (13/16" reach Hds), 5115GL ,5108GL(13/16" reach Hds), 5790GL (13/16" reach Hds), 7042GL  (13/16" reach Hds), 2895GL  (13/16" reach Hds), 3521GL , 12V-AT25GL/AT27GL , 8L-AT25GL/AT27GL , P48GL/GLD, L36GL/GLD, H24G, H24GL/GLD, F18G, F18GL/GLD

FEATURE:

Notes:

1. Offer Valid Date: 90 days.
2. MOQ: no MOQ limited.
3. Shipment: By express, by air, by sea.
4. Delivery date: 35 working days upon confirmation of purchasing order and advance payment.
5. Payment terms: shall be 30% in advance by TT and 70% balance before shipment.

OTHER PRODUCTS:

---------------------------Filters--------------------------------------------------------------------Brake Pads

1.LIXIN INDUSTRIAL & TRADE CO., LIMITED was established in 2002 in china.

2.Our company is a professional manufacturer of spark plugs.

3.We can provide many kind of spark plug:

• CNG/LPG Spark Plug

• Motorcycle Spark Plug

• Auto Spark Plug

• Small Engine Spark Plug

• Generator Spark Plug


4.We have a complete range of product,including spark plug ,filter,brake pads etc.

5.Cooperate with many OEM clients such as Lifan,Sanlg,Suzuki,Wangye Qipa etc.

CNG/LPG Spark Plug，Motorcycle Spark Plug，Auto Spark Plug，Small Engine Spark Plug
