precision roller slewing rings made in china XU080120 with size 69X170X30mm
USD $20 - $50
/ Piece
1 Piece(Min.Order)
- Shanghai,Qingdao
- T/T Other
- 3 days
You May Like
-
precision roller slewing rings made in china XU080149 with size 101.6X196.85X22.22mm
-
precision roller slewing rings made in china XU160405 with size 336X474X46mm
-
precision roller slewing rings made in china XU160260 with size 191X329X46mm
-
precision roller slewing rings made in china XU080430 with size 380X480X26mm
-
precision roller slewing rings made in china XU300515 with size 384X646X86mm
-
precision roller slewing rings made in china XSU140414 with size 344X484X56mm
Product Details
| Brand Name | LYMC | Place of Origin | China | |
| Model Number | XU 080120 | Number of Row | Single Row | |
| Seals Type | open | Precision Rating | P4,P5,P2 | |
| Outside Diameter | 69, 170 | Bore Size | , |
Product Description

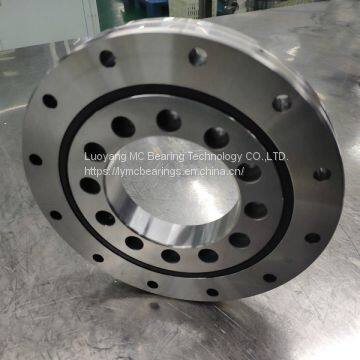

Crossed Roller Bearing XU080120 with size 69X170X30mm information:
The outer ring diameter:170mm
The inner ring diameter:69mm
The thickness diameter:30mm
dynamic load rating C (Kn):56
Static load ratingCo(Kn):53
Weight:4kg
Seals type:double seals
Precision rating:P2 P4 P5
Material:Steel GCr15
Package:wooden box
Delivery Time: 3 days in stock
RU/XSU/XU CROSS ROLLER BEARING SERIES FEATURE:
Since the mounting holes are provided, this model does not require a presser flange or housing .In addition because it has an integrated inner/outer ring structure and is equipped with washers ,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner-ring rotation and outer-ring rotation.
High quality cross roller bearing
With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
If you interesting the type cross roller slewing bearing XU080120 with size 69X170X30mm,welcome inquiry me freely.
