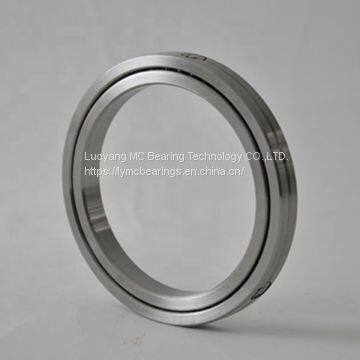

China factory supply Crossed Roller Bearing SX011860 with size 300X380X38mm

Crossed Roller Bearing SX011860 with size 300X380X38mm information:

The outer ring diameter:380mm

The inner ring diameter:300mm

The thickness diameter:38mm

dynamic load rating C (Kn):243

Static load ratingCo(Kn):1070

Weight:12kg

Seals type:double seals

Precision rating:P2 P4 P5

Material:Steel GCr15

Package:wooden box

Delivery Time: 3 days in stock

With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.

If you interesting the type Crossed Roller Bearing SX011860 with size 300X380X38mm,welcome contact me freely.
