Power Frequency DA/AC Test Transformer (Inflatable)
- 99 Set / Sets per Month
You May Like
Product Details
| Brand Name | WUHAN HUADIAN HIGH-TECH | Place of Origin | China | |
| Model Number | HYDQ |
Product Description

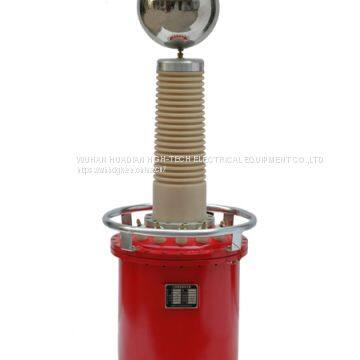

Power Frequency DA/AC Test Transformer (Inflatable)
Brief introduction
YDQ Inflatable light model test transformer is the series product developed by our company with many years research efforts. Compared with the oil immersed light test transformer, weight has been reduced by 20%-60%(depending on the voltage and capacity) and no oil pollution. Voltage of a single test transformer can reach 300KV. Due to the adoption of new production technology, product technical performance has been greatly improved, especially in the field work and frequent movement working condition.
Product features
◆This product has small vollume and light weight(Compared with the same level of oil immersed transformer test light 40%-65%),clean and no oil pollution, does not need maintenance.
◆Not affected by bad weather conditions, does not need static to do the test in field movement.
◆The insulation strength is obviously higher than that of oil immersed test transformer, minimal corona.
Product parameters
Specification YDQ | Capacity (kVA) | Low Voltage Side | High Voltage Side | Measurement Ratio | Temperature Rise ℃ | Impendance Voltage % | No-load Current% | Weight | Dimension Length*Width*Height mm*mm*mm | ||
Voltage V | Current A | Voltage kV | Current mA | ||||||||
1.5/50 | 1.5 | 200 | 7.5 | 50 | 30 | 500:1 | 50 | 10 | <4 | 30 | 200x275x640 |
3/50 | 3 | 200 | 15 | 50 | 60 | 500:1 | 50 | 10 | <4 | 35 | 240x300x690 |
6/50 | 6 | 200 | 30 | 50 | 120 | 500:1 | 50 | 10 | <4 | 40 | 250x355x710 |
10/50 | 10 | 200 | 50 | 50 | 200 | 500:1 | 50 | 10 | <4 | 60 | 260x375x750 |
15/50 | 15 | 400 | 37.5 | 50 | 300 | 500:1 | 50 | 8 | <4 | 70 | 270x420x800 |
20/50 | 20 | 400 | 50 | 50 | 400 | 500:1 | 50 | 8 | <4 | 85 | 285x440x820 |
30/50 | 30 | 400 | 75 | 50 | 600 | 500:1 | 50 | 8 | <4 | 100 | 295x386x840 |
50/50 | 50 | 400 | 125 | 50 | 1000 | 500:1 | 50 | 8 | <4 | 120 | 320x416x910 |
10/100 | 10 | 200 | 50 | 100 | 100 | 1000:1 | 50 | 10 | <4 | 65 | 350x475x1300 |
15/100 | 15 | 400 | 37.5 | 100 | 150 | 1000:1 | 50 | 8 | <4 | 85 | 510x390x1320 |
20/100 | 20 | 400 | 50 | 100 | 200 | 1000:1 | 50 | 8 | <4 | 100 | 540x400x1340 |
30/100 | 30 | 400 | 75 | 100 | 300 | 1000:1 | 50 | 8 | <4 | 110 | 560x410x1360 |
50/100 | 50 | 400 | 125 | 100 | 500 | 1000:1 | 50 | 8 | <4 | 125 | 600x460x1410 |
10/150 | 10 | 200 | 50 | 100 | 66.7 | 1500:1 | 50 | 10 | <4 | 90 | 265x380x1750 |
15/150 | 15 | 400 | 37.5 | 150 | 100 | 1500:1 | 50 | 8 | <4 | 100 | 510x390x1800 |
20/150 | 30 | 400 | 50 | 150 | 133.3 | 1500:1 | 50 | 8 | <4 | 110 | 540x415x1800 |
30/150 | 30 | 400 | 75 | 150 | 200 | 1500:1 | 50 | 8 | <4 | 125 | 560x430x1800 |
50/150 | 50 | 400 | 125 | 150 | 333.3 | 1500:1 | 50 | 8 | <4 | 140 | 600x450x1800 |
20/200 | 20 | 400 | 50 | 200 | 100 | 2000:1 | 50 | 8 | <4 | 140 | 600x600x1900 |
30/200 | 30 | 400 | 75 | 200 | 150 | 2000:1 | 50 | 8 | <4 | 160 | 700x700x1900 |
50/200 | 50 | 400 | 125 | 200 | 250 | 2000:1 | 50 | 8 | <4 | 200 | 750x750x2000 |
50/300 | 50 | 400 | 125 | 300 | 166 | 3000:1 | 50 | 8 | <4 | 230 | 750x750x2300 |
100/300 | 100 | 400 | 250 | 300 | 333 | 3000:1 | 55 | 8 | <4 | 300 | 850x850x2500 |
200/300 | 200 | 400 | 500 | 300 | 666 | 3000:1 | 55 | 8 | <4 | 350 | 900x900x2600 |
300/300 | 300 | 400 | 750 | 300 | 1000 | 3000:1 | 55 | 8 | <4 | 420 | |
Note: Can be customized according to the user, non-standard products, not in the form of parameters range | |||||||||||
