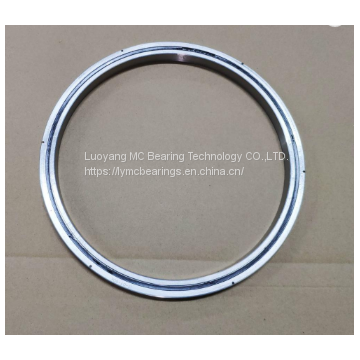

RA7008 crossed cylindrical roller bearings 70*86*8mm

RA series Cross roller bearing RA7008(One-piece inner ring,two-piece outer ring,super slim) information:

Size:70mm*86mm*8mm

Structure:cylindrical

No. of Row:single row

Material:GCr15

Weight:0.1kg

Package:wooden box or customerized

Lead Time:3 days after received your payment

With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.

If you interesting the type RA7008 crossed cylindrical roller bearings 70*86*8mm,welcome inquiry for freely.
