Home > Products > Ceiling Ventilation Fan > 1500m3/h Heat Recovery Unit HEPA filtered recuperator & Plate heat exchanger HVAC System MIA-AHE150GL

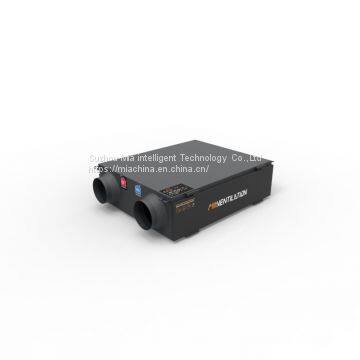

1500m3/h Heat Recovery Unit HEPA filtered recuperator & Plate heat exchanger HVAC System MIA-AHE150GL

FOB Price

US$ 1000 - 1001 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T PayPal Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MIA	Place of Origin	China
Model Number	MIA-AHE150GL	Certification	CE, ROHS
Power (W)	298	Installation	Other, Ceiling Easy Installation

Product Description

Overview

Quick Details

Warranty:
More than 5 Years

After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement

Project Solution Capability:
Graphic Design, 3D model design, total solution for projects, Cross Categories Consolidation

Application:
APARTMENT

Design Style:
Modern

Place of Origin:
Jiangsu, China

Brand Name:
MIA

Model Number:
MIA-AHE150GL

Air Flow:
1500m3/h

Power:
298W

Efficiency:
85%-88%

Noise:
44dB(A)

Pressure:
175Pa

Size:
1143*809*342mm

Weight:
53.5kg

Packaging & Delivery

Selling Units:
Single item

Single package size:
120X120X50 cm

Single gross weight:
60.000 kg

Package Type:
Carton package with wooden box for safe export

Picture Example:

Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 7 To be negotiated

Product Details

MIAVENTILATION Air Recuperator HRV/ERV MIA Ventilation System Cross-flow Plate Heat Exchanger
In our Model, "AHE" means the double-flow fan with Heat Exchanger;
 "N" means one piece of Early Effect Activated Carbon filter inside;
"GL" means one piece of HEPA-H13 filter and one piece of Early Effect Activated Carbon filter inside;
"JDN" means one piece of Electrostatic precipitator, one piece of HEPA-H13 filter and one piece of Early Effect Activated Carbon filter inside.

Model:	MIA-AHE150GL
Voltage:	220V~240V	Efficiency:	85%~88%
Power:	298W	Size:	1143x809x342(mm)
Volume:	1500m3/h	Φd:	200mm
Pressure:	175Pa	Weight:	53.5kg
Motor:	AC inner rotor motor	Place of Origin:	Suzhou, China
Noise:	44dB(A)	Warranty:	10 year

Energy Recovery Exchanger

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.

The sealing property is far more than the paper border with using the plastic margin. The Filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon powder can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard- H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

With pin type electric discharge way, the Ion Dust Collection Sterilization can replace the traditional tungsten filament high-pressure electrostatic dust collection. It’s thickness is only 4 cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It’s washable, also can be cleaned with brush, and will not increase the using cost.

Energy Recovery Exchanger Principle

Product Display

Please contact the customer service for the selection of fresh air system controller.

Applicable Scenarios

MIA Co., Ltd has established more than 70 sales centers and business agencies in the world. Recently set up in Suzhou, MIA China is mainly responsible for the sales of MIA air ventilation products. MIA China is directly administered by MIA Co., Ltd Japan while retaining its own independent financial accounting.

Production and delivery process

Certifications
