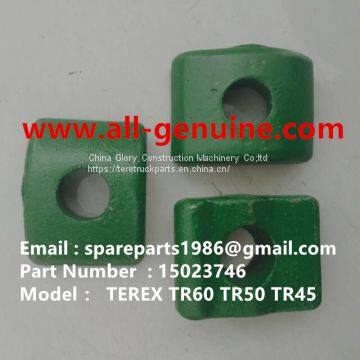

TEREX 15023746 CLAMP TR35A 3305F 3305G 3305K 3305B OFF HIGHWAY RIGID DUMP TRUCK MINING HAULER TRANSMISSION

FOB Price

USD $1 - $100000 / Piece

1 Piece(Min.Order)

Port ANY SEA PORT OF CHINA
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TEREX		Place of Origin	China
Model Number	15023746

Product Description

8	271618	BOLT
9	9250715	WASHER-HARDENED
10	9355771	NUT
11	15231659	TRUNNION ASSEMBLY
12	271562	BOLT
13	9191596	WASHER
14	9354243	LOCK NUT
15	9233796	TUBE-NYLON
16	9066008	RING
17	9268885	LOCK
TRANSMISSION BREAKDOWN
ITEM	PART NO.	DESCRIPTION
1	9016370	FLANGE-OUTPUT
2	6772182	NUT
3	9409059	BOLT
4	6755269	STRIP
5	6768711	RETAINER
6	6772140	SHIM-.25
7	9264802	FLANGE-INPUT
TRANSMISSION SHIFT CONTROL
ITEM	PART NO.	DESCRIPTION
1	103339	WASHER
2	110633	NUT
3	179845	BOLT
4	102635	NUT
5	108580	LOCK WASHER
6	103319	LOCK WASHER
7	109084	NUT
8	29502622	ECU-PUSH BUTTON
9	15231532	BOX-BATT EQUALIZER
10	179795	BOLT
11	179838	BOLT
12	179839	BOLT
13	179795	BOLT
TRANSMISSION FILTER
ITEM	PART NO.	DESCRIPTION
1	29503834	FILTER ASSY
2	15270496	ELEMENT
3	23018958	SEAL
4	23018846	SWITCH
TRANSMISSION OIL LINES
ITEM	PART NO.	DESCRIPTION
1	179885	BOLT
2	103329	LOCK WASHER
3	9402831	ELBOW
4	15260228	HOSE ASSY
5	9381426	HOSE ASSY
6	2369508	STUD-CLAMPING
7	116453	ELBOW
8	127887	ELBOW
9	103329	LOCK WASHER
10	9264303	O RING
11	9409985	FLANGE-SPLIT
12	179885	BOLT
13	15260134	HOSE ASSY
14	15260133	HOSE ASSY
15	9016211	HOSE ASSY
16	179893	BOLT
17	9127756	O RING
TRANSMISSION TORQUE BRAKE LINKAGE
ITEM	PART NO.	DESCRIPTION
1	103340	WASHER
2	9184755	CLEVIS
3	179843	BOLT
4	274208	LOCK NUT
5	9015938	CONTROL-CABLE
6	103496	PIN
7	108580	LOCK WASHER
8	103498	PIN
9	103385	PIN-COTTER
TRANS. FRONT COVER AND CONVERTER GROUP
ITEM	PART NO.	DESCRIPTION
1	6773186	SEAL
2	181415	BOLT
3	6768689	COVER
4	5181902	GASKET
5	23041458	BEARING
6	6770630	COVER
7	6768687	HUB
8	23041452	BEARING
9	455366	PIN DOWEL
10	6838403	RING-SNAP
11	6774703	RING-SNAP
12	23019639	TURBINE
13	6774708	NUT
14	6758485	WASHER
15	23045335	STATOR
16	6774710	PLATE
17	23041915	BEARING
18	6881830	PUMP
19	6830003	WASHER
20	9409037	BOLT
21	103322	LOCK WASHER
22	271505	NUT
23	6752849	SEAL
24	6752848	SEAL
TRANSMISSION CONVERTER HOUSING GROUP
ITEM	PART NO.	DESCRIPTION
1	179881	BOLT
2	103329	LOCK WASHER
3	6774735	GEAR-IDLER OIL PUMP
4	901310	BEARING
5	6755403	PIN
6	6755986	GEAR-DRIVE OIL PUMP
7	6758442	GASKET
8	6768990	COVER-PTO
9	103322	LOCK WASHER
10	179857	BOLT
11	444692	PLUG
12	444688	PLUG
13	444619	PLUG
14	273469	PLUG
15	444631	PLUG （0.50")
16	6779451	GASKET
17	6830021	SEAL
18	23019731	SEAL
19	6775834	SLEEVE
20	179838	BOLT
21	103321	LOCK WASHER
22	6882702	GASKET
23	903209	BEARING
24	179860	BOLT
25	6779125	FLANGE
26	23046148	HOSE ASSY
27	179837	BOLT
