The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.
Home > Products > HRV/ERV/Energy Recovery Ventilator > MIA 350CMH residential external-rotor motor Hrv/erv heat recovery ventilation system

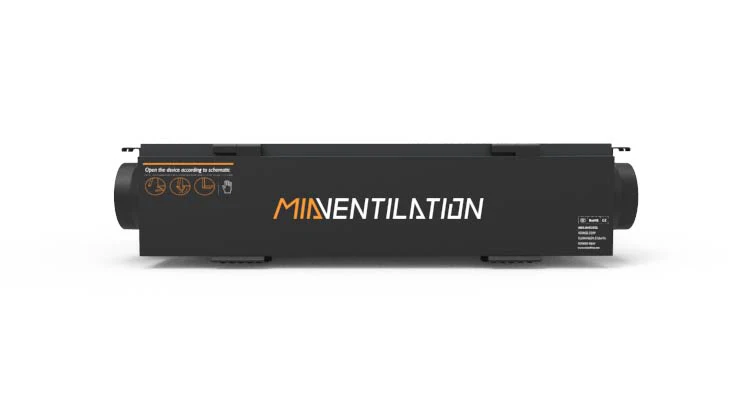

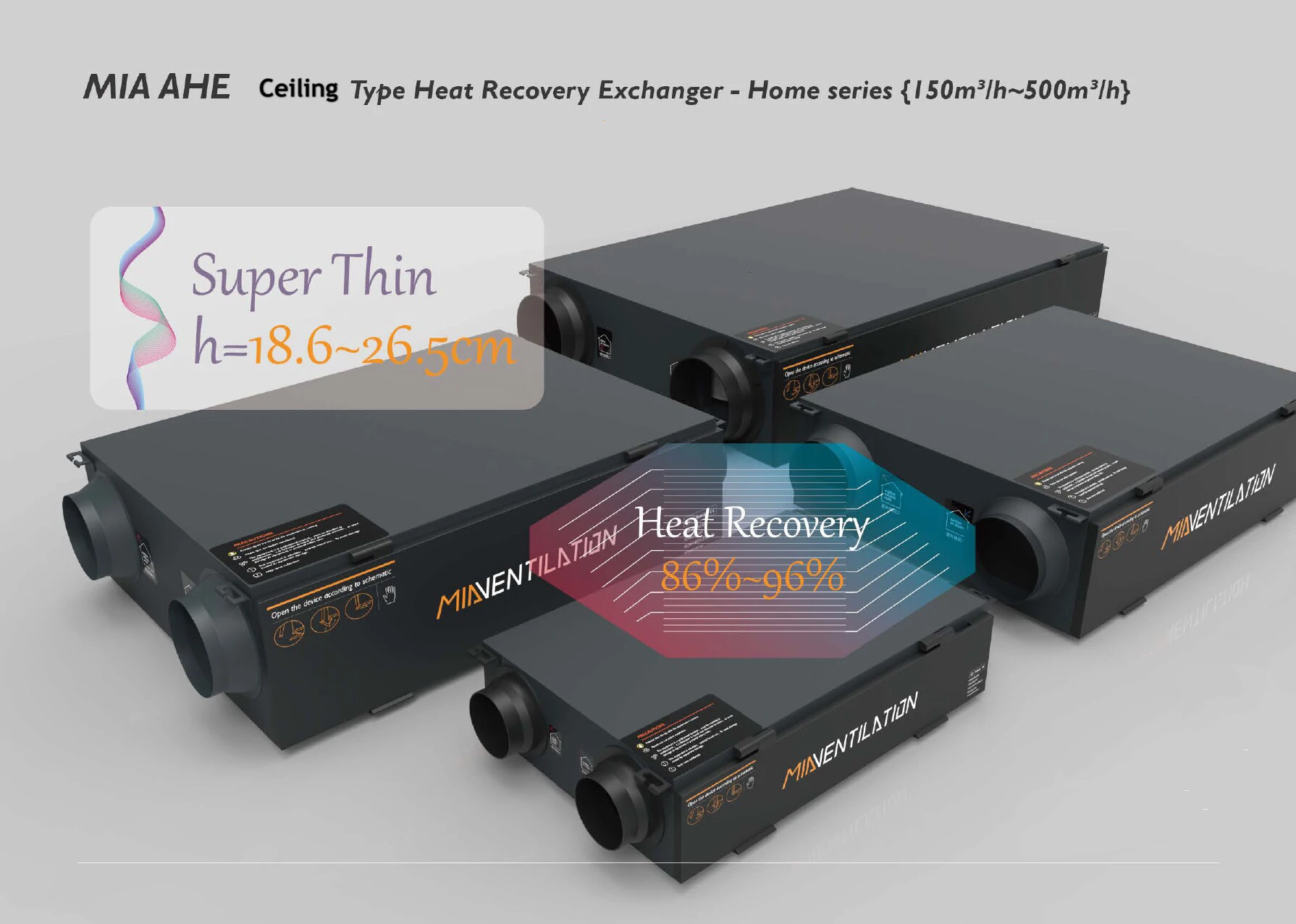

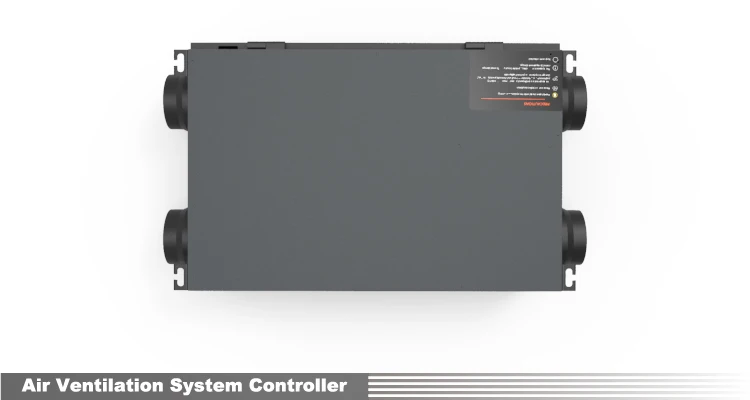

MIA 350CMH residential external-rotor motor Hrv/erv heat recovery ventilation system
USD $250 - $350
/ Set
1 Set(Min.Order)
- 9999 Set / Sets per Month
- shanghai
- T/T PayPal Other
- 7 days
You May Like
-
Mia ventilation erv ductless wall-mounted recperator MIA-S200BJD
-
MIA ventilation wall-mounted ductless erv recuperator MIA-S200BGL
-
MIA Wall Mounted Home Energy Recovery Ventilation System
-
MIA Ventilation Wall-mounted ERV Series MIA-AHE/BGL
-
MIA UV light ductless mechanical recuperator with high efficient heat recovery units 900 cmh
-
MIA floor standing ductless HRV/ERV ventilation system heat exchanger exhaust fan for school 900 CMH

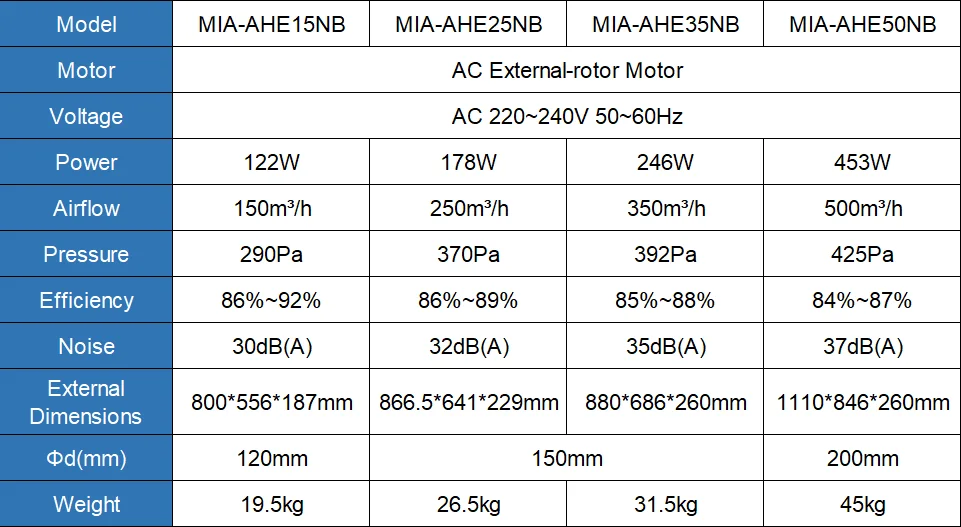

Product Details
| Brand Name | MIA | Place of Origin | China | |
| Model Number | MIA-AHE35NB | Certification | CE, ROHS | |
| Voltage (V) | 220 | Power (W) | 246 | |
| Installation | Other, Ceiling Easy Installation |
Product Description
Overview
Quick Details
Warranty:
- More than 5 Years
After-sale Service:
- Online Technical Support
Project Solution Capability:
- Graphic Design
Place of Origin:
- Jiangsu, China
Brand Name:
- MIA
Model Number:
- MIA-AHE35NB
Air Flow:
- 350CMH
Voltage:
- AC 220~240V 50~60Hz
Power:
- 246W
Heat recovery Rate:
- 85%-88%
Noise:
- 35dB(A)
Diameter:
- 150mm
Weight:
- 31.5kg
Pressure:
- 392Pa

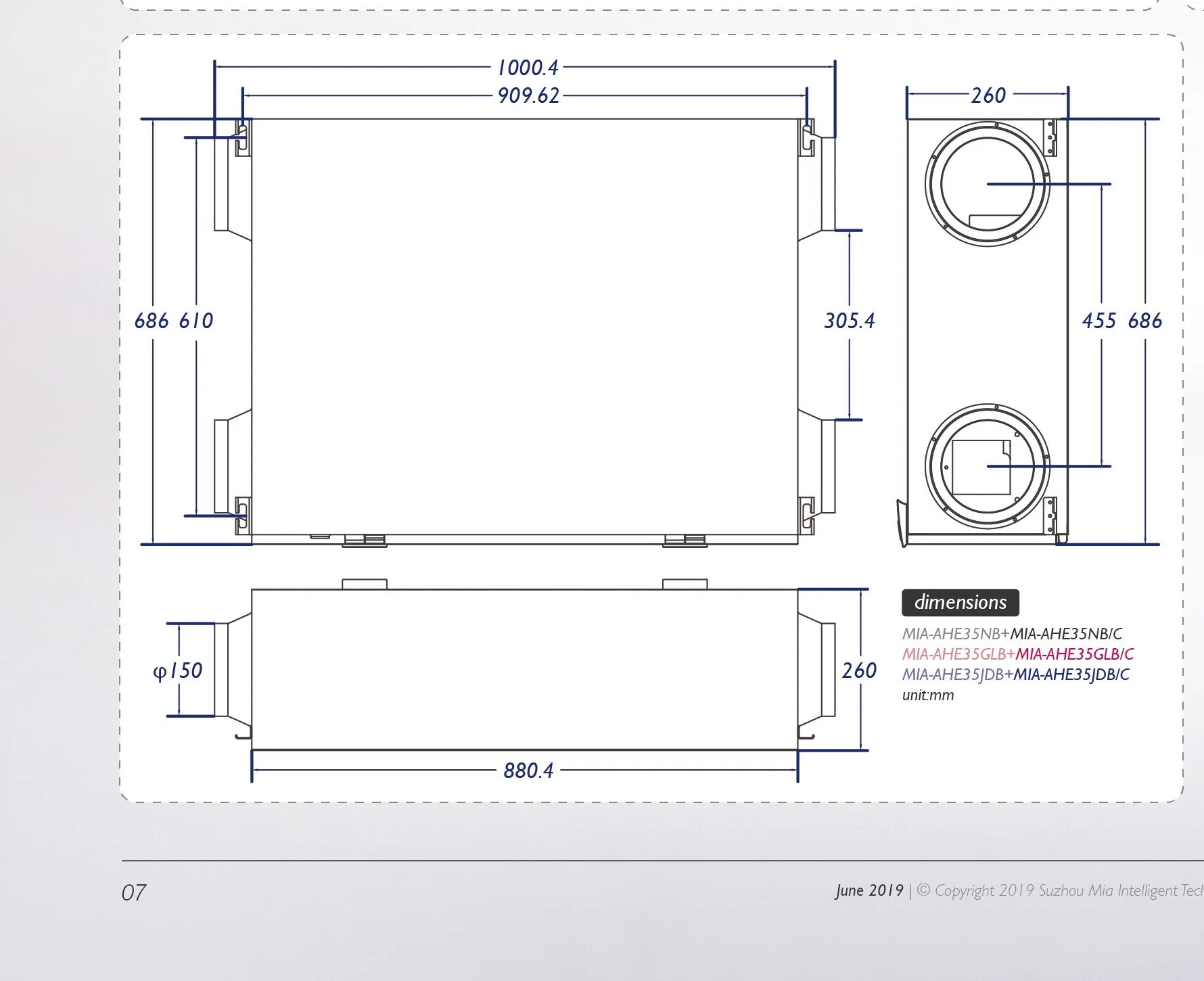

External Dimensions:
- 880*686*260mm
Casing Material:
- SGCC
Supply Ability
Supply Ability:
8000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton + Wooden box
Port
Shanghai port, Ningbo port, Shenzhen Port

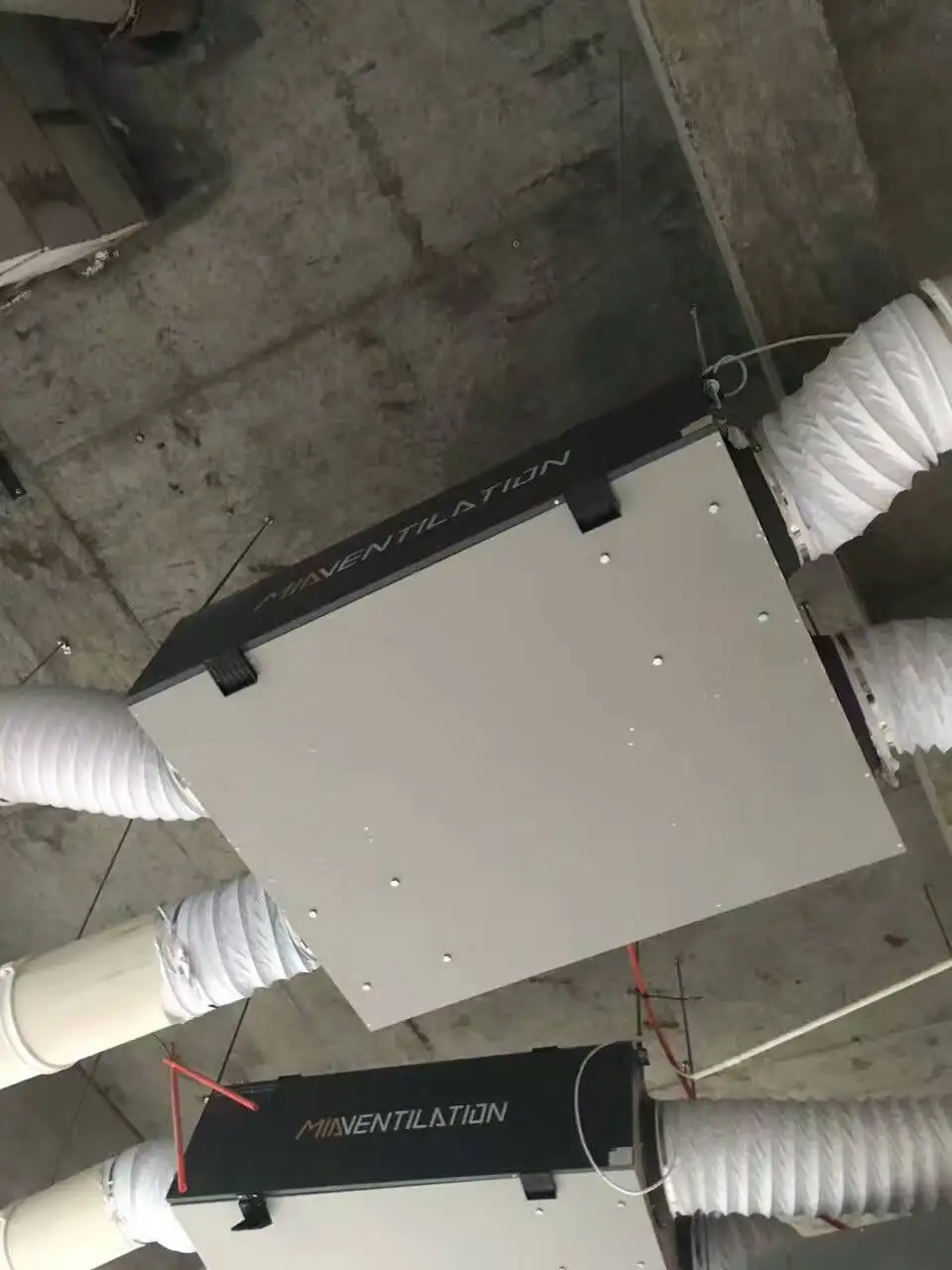

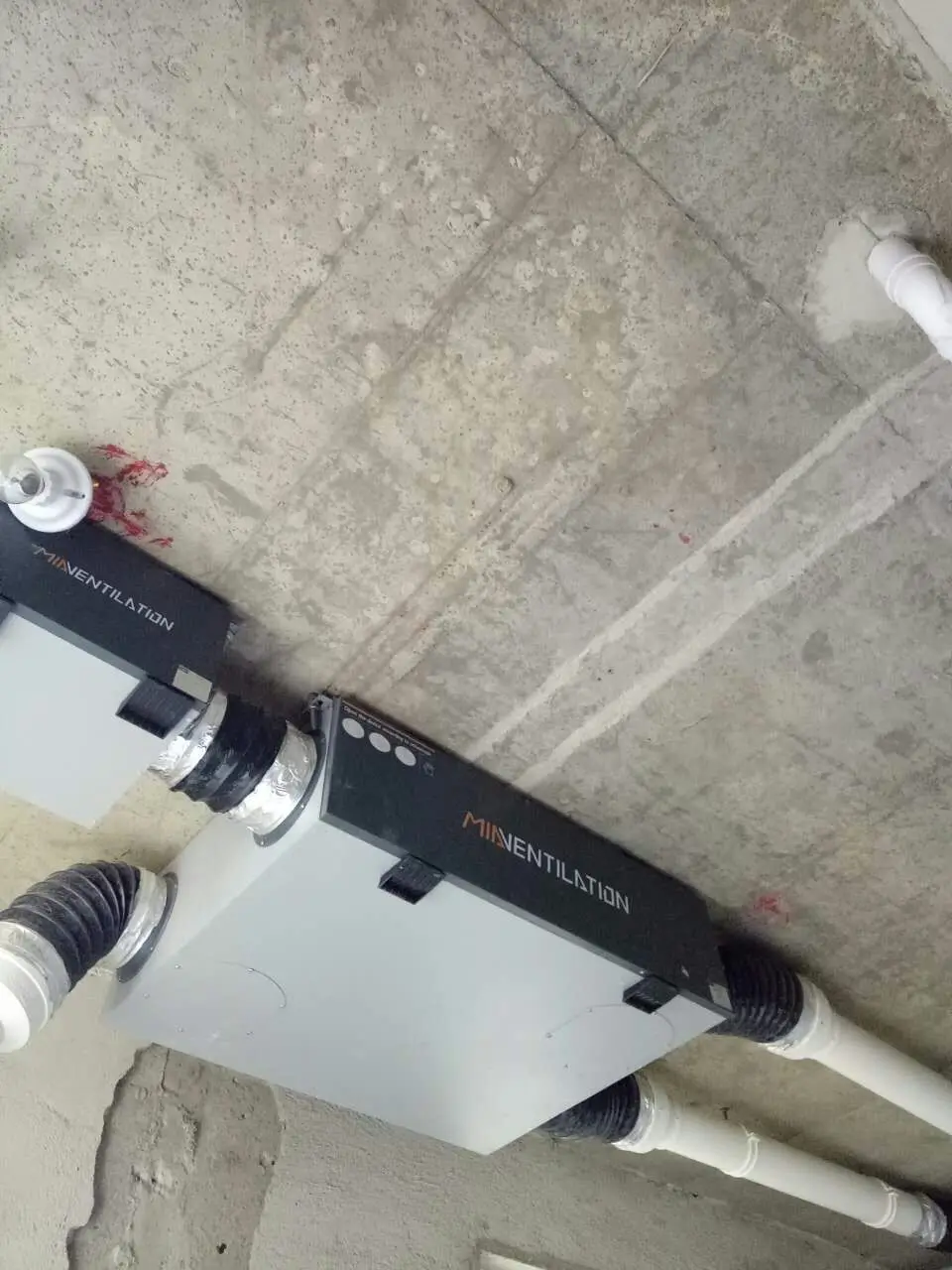

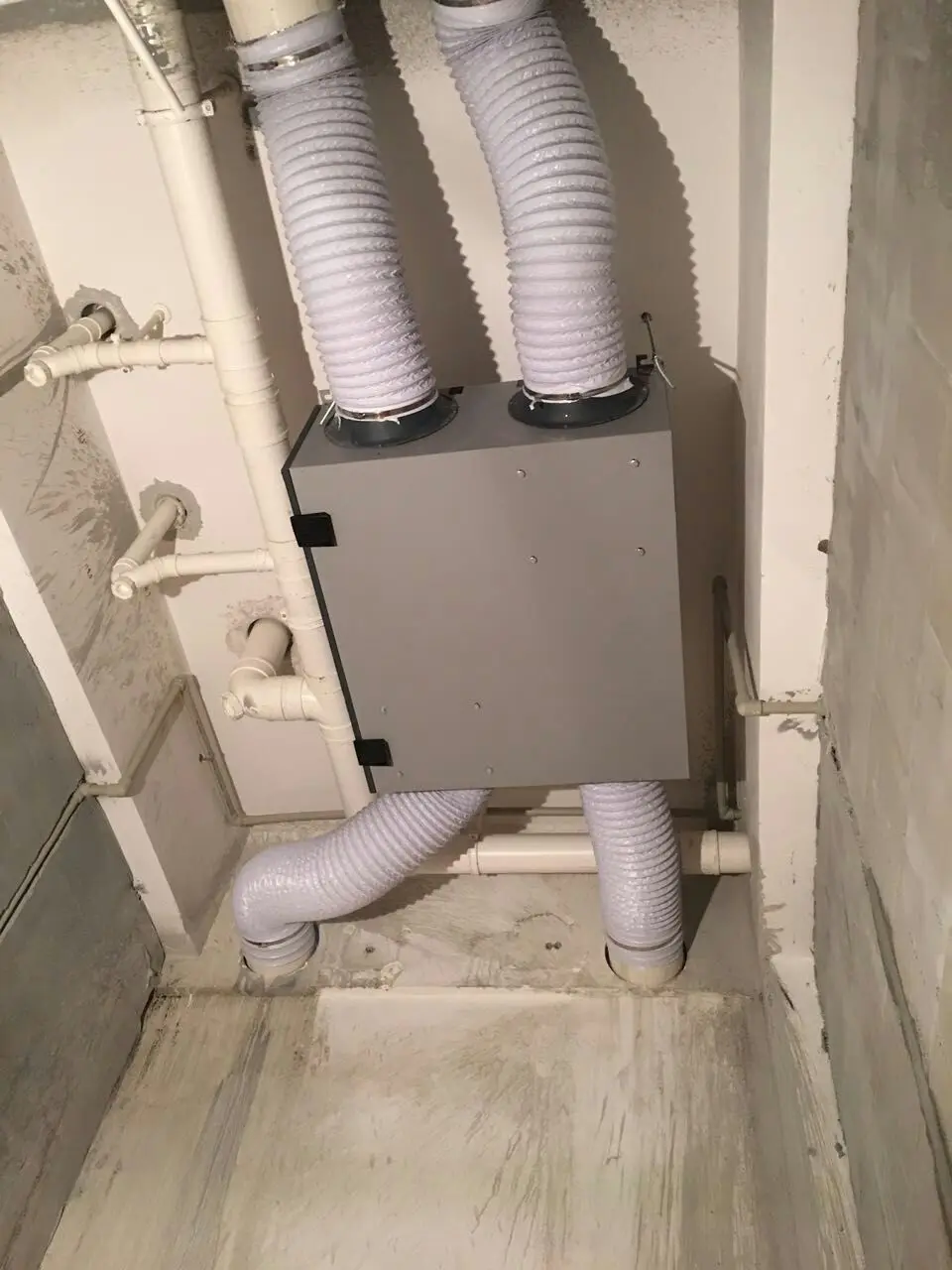

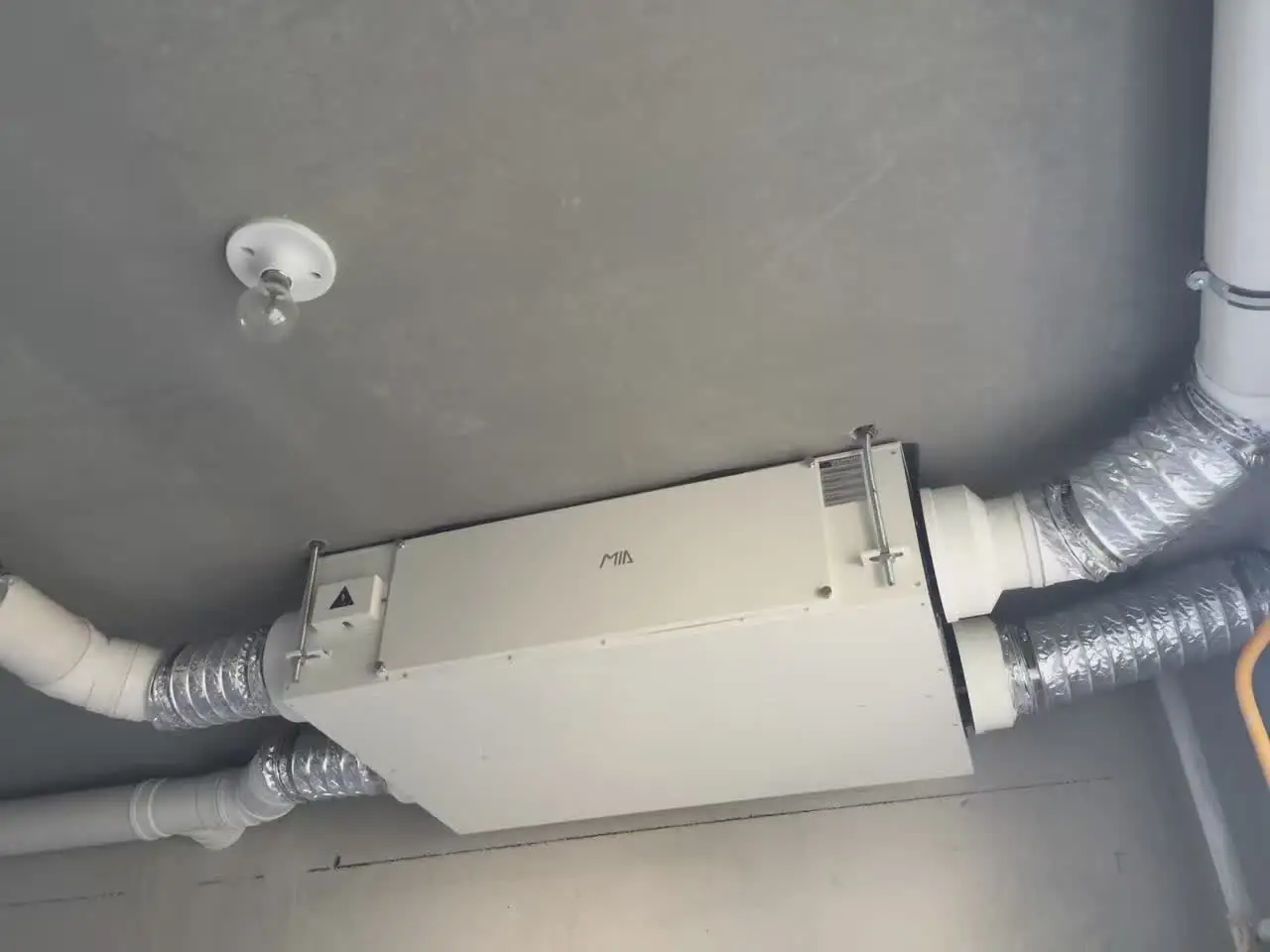

Picture Example:
Lead Time :
Quantity(Sets) 1 - 10 >10 Est. Time(days) 10 To be negotiated
Product Details

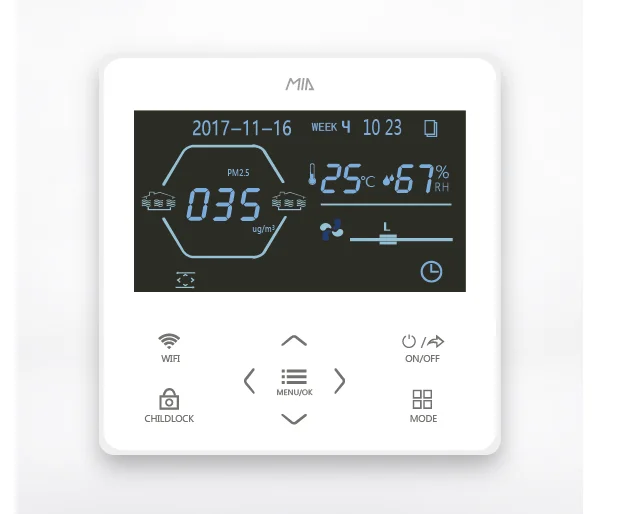

MIA-A900
Three Speed Control +temperature and humidity display +time setting +PM2.5 display +CO2 display +APP control

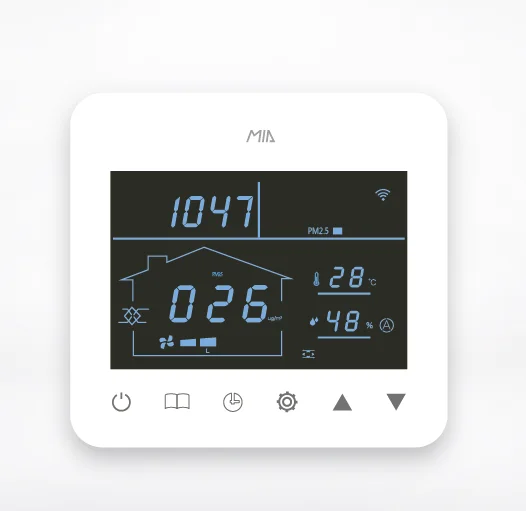

MIA-6G
Three Speed Control +temperature and humidity display
+time setting
+PM2.5 display
+CO2 display
+APP control

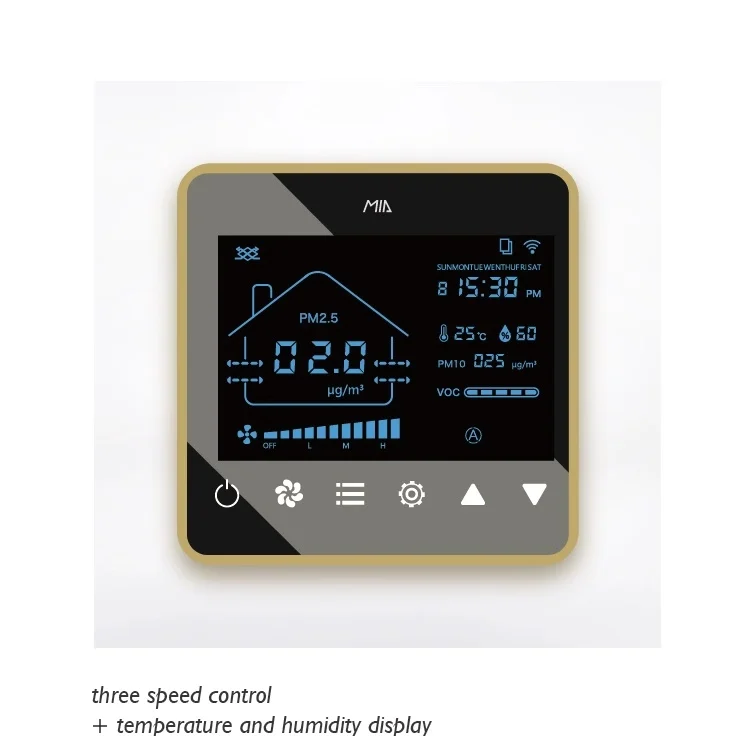

MIA-ES900
Three Speed Control +temperature and hum display
+time setting
+PM2.5 display
+APP control

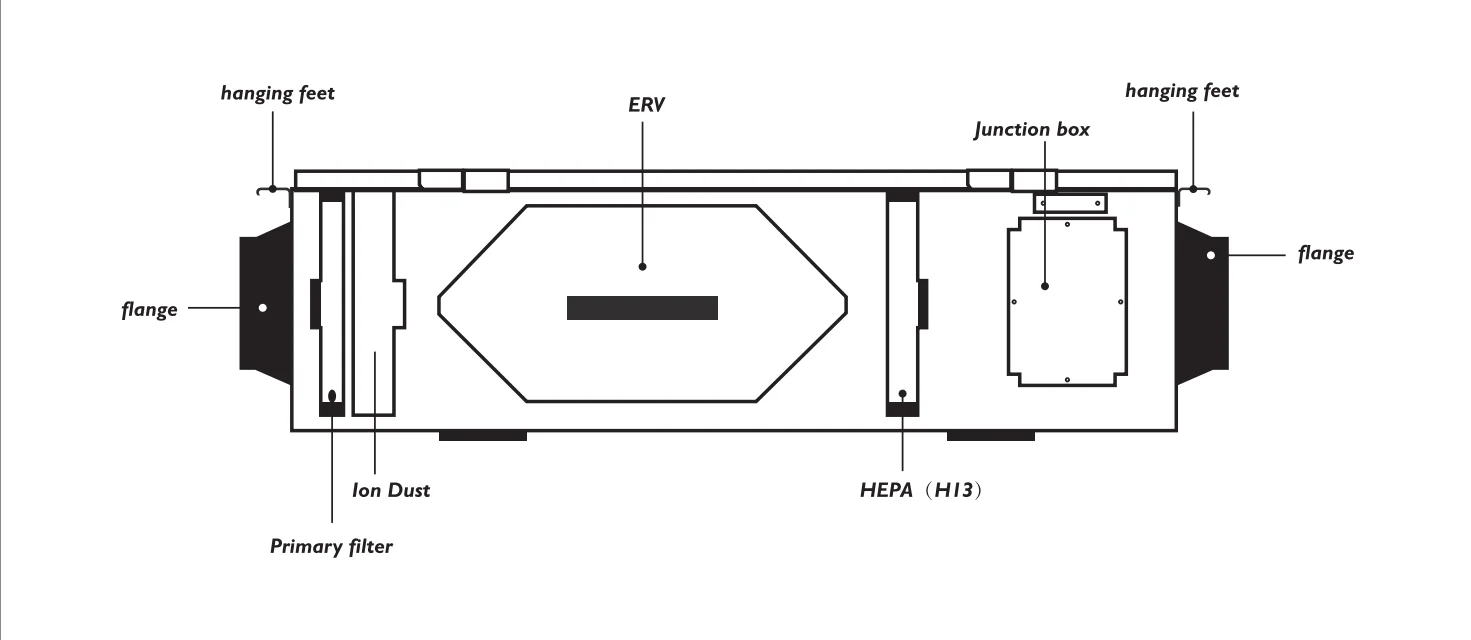

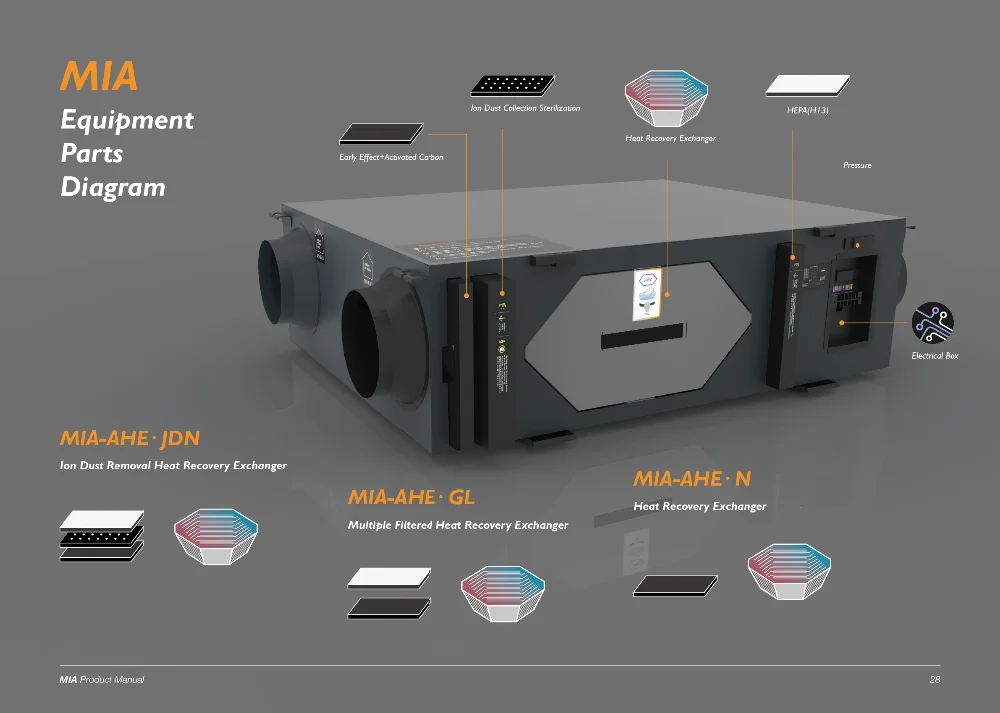

Inside Setting

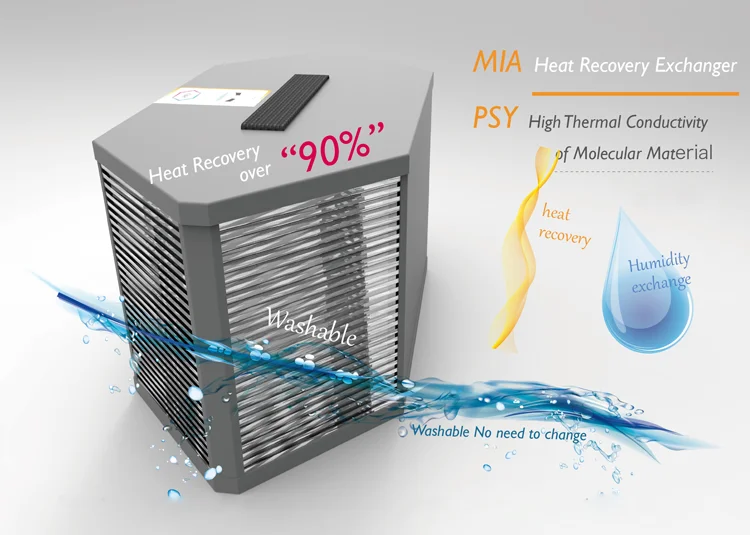

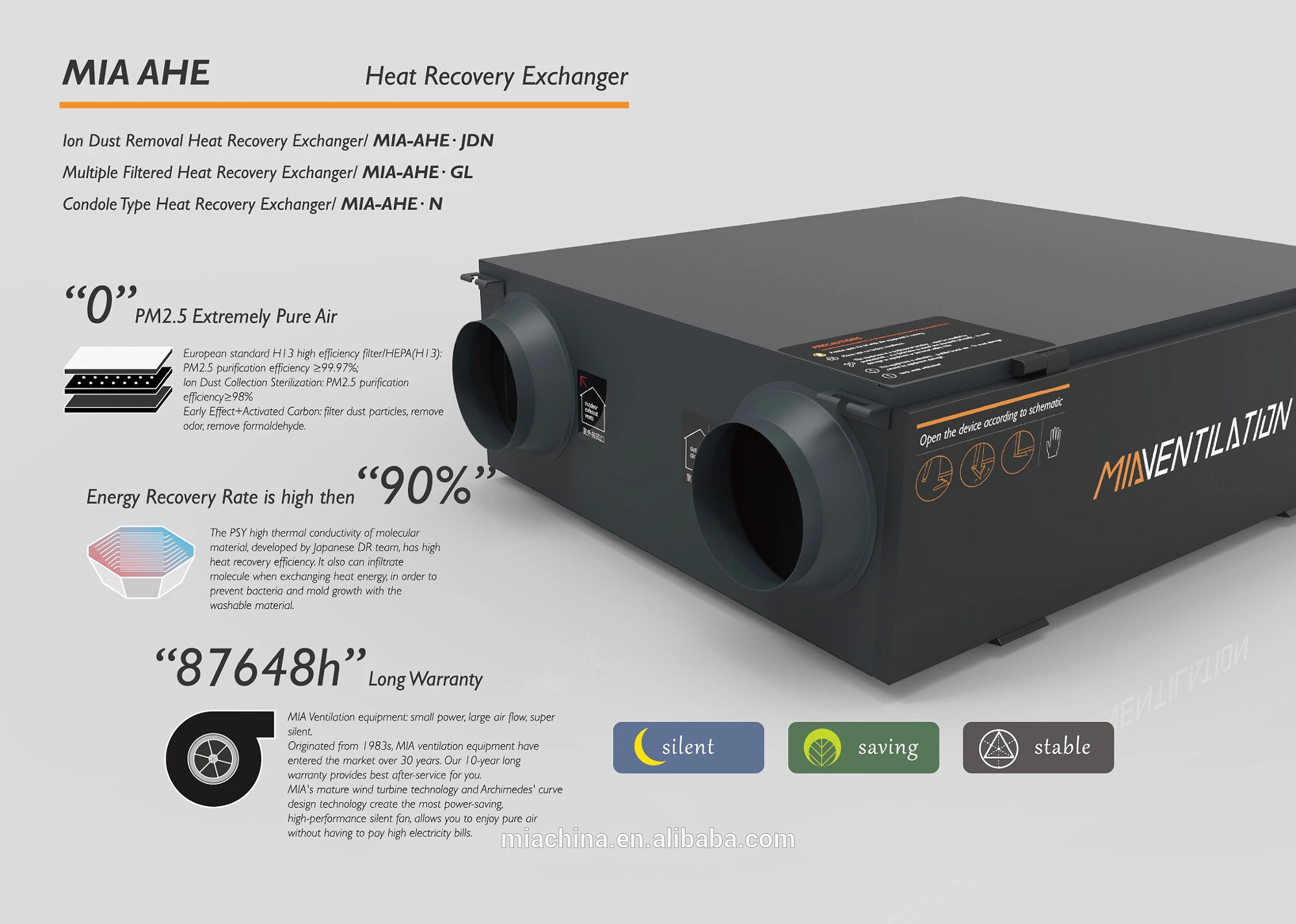

Energy Recovery Exchanger Core
Early Effect + Activated Carbon
The filter with composite fiber,sprayed with activated carbon powder, can ilter dust particle efficiently and the wind resistance is very small. This washable filter can be used repeatedly, greatly reduces the total cost of consumables.
High Efficiency H13 Hepa Filter (Optional)
The filter element that we use is 3M HEPA, meeting the European standard-Hl3, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
High-voltage Electrostatic Dust Collection (Optional)
The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. lt's washable, also can becleaned with brush, and will not increase the using cost.
Product ranges
Selection Guide
In a room. area: S=65(m3), height: h=3(m), member: = 25 (people). calculated by the fresh air volume everyone needs,[the air volume everyone need: q=30(m3/h)]. so the total fresh air volume QI=n*q= 25*30=750(m3/h). If calculated by the fresh air changes rate, (the fresh air change rate P=4]. so the fresh air Q2=p*s*h=4*65*3= 780(m3/h); Due to Q2>Ql. so here we take Q2 for the reference; Combine with the products type, here we suggest MIA-AHE80N Energy Recovery Ventilation.
Select the diferent installation forms of air ventilation according to the characteristic of the bulding structure. Confirm the appropriate air volume according to the house' s use, area and containing people. Select the ventilation' s spedfication and amounts according to the confimed fesh air valume.
