Home > Products > Marine lantern > Self Cotianed Gps Positioning & Remote Monitoring via APP Solar Marine Navigation Led Light

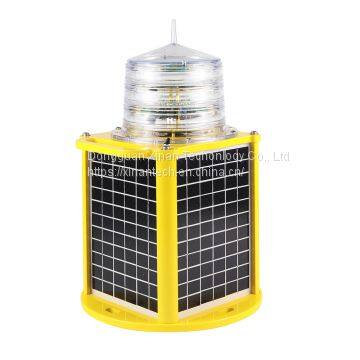

Self Cotianed Gps Positioning & Remote Monitoring via APP Solar Marine Navigation Led Light
- SHENZHEN
- T/T Credit Card Other
- 3 days
You May Like
-
High Efficiency Mono Crystalline Solar Panel 6nm+ Marine Light Flashing
-
Integrated Big Solar Panel LED Marine Signal Light Flexible to Install Anywhere
-
Anti UV PC AC Voltage Low Intensity Aviation Obstruction Light
-
FAA IP68 Double Head Red Flashing Same Time Low Intensity Led Aviation Light
-
Type A 20000cd Medium Intensity Aircraft Warning Light for Tower High Rise Building
-
New Design Type B Aluminium Housing Red Flashing Medium Intensity Obstacle Light Signal Light
Product Details
| Brand Name | XINAN | Place of Origin | China | |
| Model Number | GS-LS/SJ | Certification | CE, ROHS | |
| Light Source | LED | Base Type | 2G7 | |
| Lamp Body Material | Aluminum Alloy | Emitting Color | Red | |
| IP Rating | IP67 | Beam Angle(°) | 8 | |
| Color Temperature(CCT) | Cool White | CRI (Ra) | 80 | |
| Lamp Luminous Efficiency(lm/w) | 100 | Lamp Luminous Flux(lm) | 100 | |
| Lamp Power(W) | 100 | Input Voltage(V) | 12V14AH |
Product Description
Description

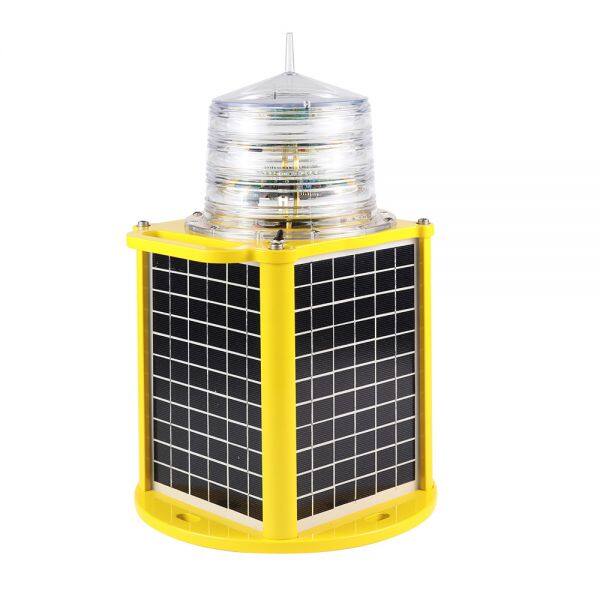

GS-LS/Sj LED Solar Powered Marine Lantern used advanced structure design, adopts 4 groups of solar panels and high efficiently, co-operate with solar dedicated battery as power supply.
Advanced power management system will be used to charge the power in a comprehensive protection. In order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.
The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.
Its shell is die casting with aviation aluminum, this material has the specific of light weight and corrosion resistance, which can reduce the weight of light equipment, it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock an so on.
Name | Parameter | Name | Parameter |
Type | GS-LS/SJ | LED Service Life | >100000 hours |
Power Supply | A grade high efficiency solar panel | Optional Emitting Color | Red, yellow, green, blue, white |
Solar panel voltage | 16.5V | Solar panel power | 6W x 4pcs |
Battery Capacity | Lead acid 12V14AH Or Lithium Iron phosphate 12.8V40AH | Battery Type | Lead Acid Battery Or Lithium Iron Phosphate Battery |
Power Consumption | ≤15W | Vertical Divergence | >8° |
Visible Range | 1-6NM(s) | Horizontal Out-put | 360° |
Battery service life | 3~5 years | Solar panel service life | >30 years |
Light Intensity | Compliant with IALA | Overall Size | ¢260×420mm |
Light Source | LED | Installation Size | ¢220 mm x M10 |
Working temperature | -55℃~85℃ | Anti-wind ability | 80m/s |
Storage Temperature | -55℃~85℃ | Working mode | 350 flash pattern optional |
Weight | 7.8kg | Sun Switch Illuminance Threshold | 300LUX±100LUX |
Continuous Light-emitting time | >20days (12 hours a day) | IP standard | IP67 |
About us
Dongguan Xinan Technology Co.,Ltd. is a high technology enterprise engaging in research, production, sales and after sale services for a wide range of Aviation Obstruction Light, LED Warning Light, Heliport Light, LED Marine Lanterns, Solar Garden/Street Light. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in domestic and overseas market in many fields,eg.Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). we are proud to have served customers from all across the world.
