UL94 V0 Gaskets Made of Fire Protection Material Foam Rubber EPDM; Clamping Profile EPDM 60° ± 5 Shore A Black 1011-05-FR01

Description: Gaskets made of fire protection material foam rubber EPDM; clamping profile EPDM 60° ± 5 Shore A black 1011-05-FR01

Other Descriptions: Sealing profiles, Door Gaskets, Rubber Door Gasket, Door Gasket Seal, Metal Reinforced Rubber Edge Trim Seal, Rubber Gasket Top Bulb Type

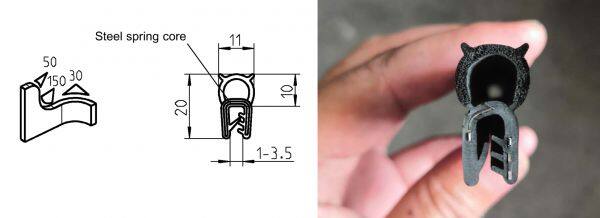

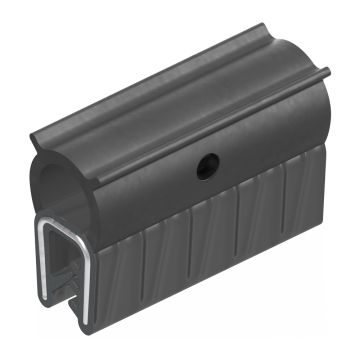

• Black foam EPDM sealing bulb

• Integrated steel strip core reinforced 60 durometer (Shore hardness) black EPDM carrier/mounting substrate

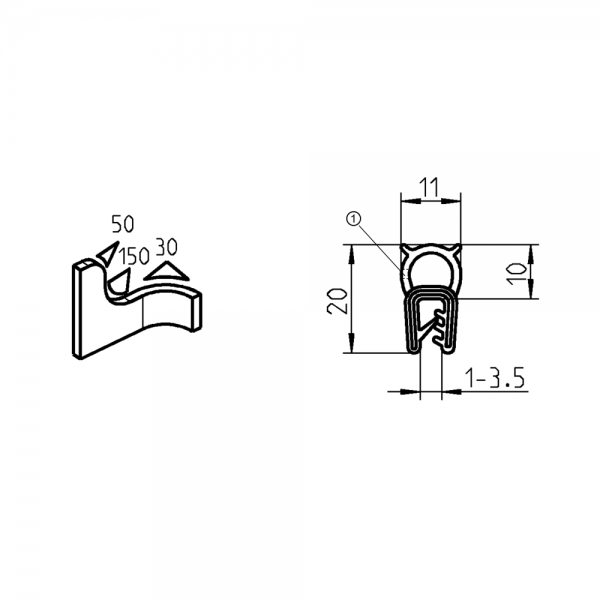

• Compatible with sheet metal thicknesses ranging from 1 mm (.04″) to 3.5 mm (.14″)

• Recommended operating temp. range is -40° F to +212° F (-40° C to +100° C)

• Flammability: UL94 V-0

Features

The Fire Protection Gaskets provide good compression characteristics, seal out dust/moisture, reduce noise, dampen rattle due to vibration, and compensate for surface contour irregularities. The gasket is easy to use, being simply pushed onto the door or frame edge up to 3.5mm thickness. The flexible bulb-type gasket can be used for a variety of wet and dry sealing applications.

• EPDM material provides excellent weathering characteristics; resists heat, ozone, and oxidants

• Good compression factor creates a tight seal, conforms to variances in enclosure geometry

• Tool-free installation includes front-mounting slip-on and plug-in press-fit styles for sure grip, easy removal, and convenient re-use

• Multiple styles satisfy a wide range of enclosure configurations and application needs

• Flame resistant for more safety

• Significant cost savings compared to silicone gasketing

• Readily customized frames and rings according to customer specifications possible

• Profile shapes also individually according to customer specifications

Materials:

Dense and sponge EPDM rubber, Neoprene, TPE, TPV, PVC, PP, PE, PA

Quality:

ISO/TS 16949 in “design, develop and manufacture” of rubber weather-strips

All materials and products comply with national or international standards like ASTM, SAE, RAM, etc.

Capabilities:

Extrusion, Co-extrusion, Compression molding, Injection molding, Splicing, Corner Molding

Manufacturing Capacities:

With four rubber profiles manufacturing lines, 15000 sets weather-strips can be finished per day.

We are happy to answer any questions regarding rubber, plastic, or thermoplastic extrusions.

Please do not hesitate to contact us for brochure, certificate, samples or send us a request for quotation.
