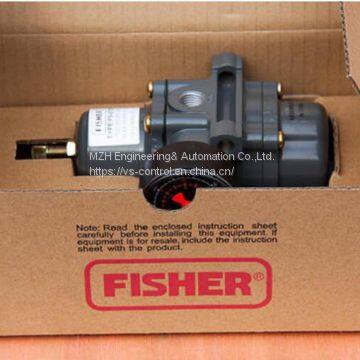

fisher regulator 67 CFR , MZH supplier

67C Series direct-operated regulators and filter regulators are typically used to provide constantly controlled, reduced pressures to pneumatic and electropneumatic controllers and other instruments. These are suitable for most air or gas applications. Other applications include providing reduced pressures to air chucks, air jets, and spray guns.

Body Sizes and End Connection Styles Sizes: NPS 1-1/4, NPS 1-1/2, NPS 2 / DN 50

Connections: NPT, CL125 FF Flanged, CL250 RF flanged, PN 10/16 flanged

Maximum Operating Inlet Pressure by Orifice Size 1/4 x 3/8 in. / 6.4 x 9.5 mm : 175 psig / 12.1 bar

3/8 in. / 9.5 mm : 175 psig / 12.1 bar

1/2 in. / 13 mm : 175 psig / 12.1 bar

3/4 in. / 19 mm : 150 psig / 10.3 bar

7/8 in. / 22 mm : 125 psig / 8.6 bar

1 in. / 25 mm : 100 psig / 6.9 bar

1-3/16 in. / 30 mm : 80 psig / 5.5 bar

Maximum Outlet (Casing) Pressure 66 psig / 4.5 bar

Minimum Differential Pressure for Full Stroke 1.5 psid / 0.10 bar d

Outlet Pressure Ranges 3.5-inches w.c. to 60 psig / 9 mbar to 4.14 bar in nine ranges

Pressure Registration Internal, External, or Dual Registration

Temperature Capabilities -20 to 150°F / -29 to 66°C

Approximate Weight 21 lbs / 10 kg
