80mm 8038 Air Purifier Cooling Fan 80x80x38 12V 24V 48V High Pressure Case Fan

Sx12038 cooling fan

... ~Model: bsx-sx12038hb1

... ~Waterproof grade: IP55, IP68

... ~Brand: baishunxin

... ~Manufacturer: baishunxin Co., Ltd

... ~Bearing structure: imported ball bearing (NMB imported ball)

... ~Service life of ball bearing: - 20 ° to 65 ° ambient temperature, service life can reach 60000 hours

... ~Fan size: 120X120X38MM

... ~Working voltage: dc3v DC 5V DC12V DC 24V DC 48V (customized as required: DC 2v-48v working voltage power supply)

... ~Fan speed: 1400 / 6000rpm

... ~Fan structure: axial flow fan

... ~Fan blade rotation: the fan blade operates counter clockwise

... ~Fan frame material: PBT + 30% glass fiber + fr

... ~Leaf material: PBT + 30% glass fiber + fr

... ~Operating temperature range of fan: - 25-75 ℃

... ~Insulation resistance: over 500m Ω

... ~Fan features: lower noise, quieter, longer life, larger air volume

... ~Fan performance: low noise, low power consumption, large air volume, long life, high reliability

... ~Fan signal types: Rd signal, FG signal and PWM signal

... ~Fan waterproof: can provide moisture-proof treatment, and IP55, IP68 waterproof function

... ~Fan certification: CE RoHS FC

... ~Product packaging: special carton packaging

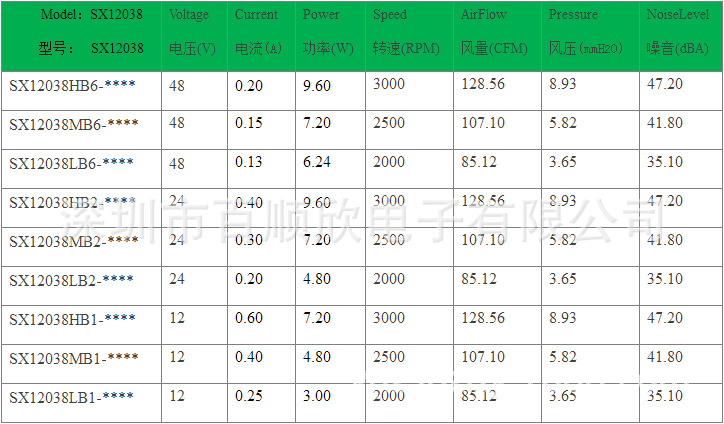

Parameter list:

Sx12038 cooling fan performance, purpose, packaging instructions, quality control:

1、 Performance: the sx12038hb1 fan designed and produced by our company adopts high-precision injection mold, so as to ensure the high-precision of the product, make the fan more silent, longer life, larger air volume and more reliable. At the same time, the fan motor adopts the whole motor component potting, IP68 grade waterproof fan, which can work all year round in the underwater, saline alkali, greasy dirt and corrosive environment, The NMB made in Japan is adopted to ensure the fan can work reliably for a long time. The fan is designed with over-voltage and over-current protection

Blocking function: if the fan blade is blocked by foreign matters during operation, our fan will not be damaged. We have added long-term anti blocking function in the design of fan control circuit. At the same time, the wire adopts Teflon FEP high temperature resistant wire. Our design truly achieves full three-dimensional water-proof, oil-proof, corrosion-resistant and high temperature resistance in all aspects.

2、 Purpose: for: new energy, lighting, precision instruments, electronic industry, industrial equipment, communication instruments, industrial power supply, military products

3、 Product packaging: one box of fan is packed with 40 PCs. it is divided into two plates, one plate is packed with 20 PCs. all paper cards are used for independent packaging to ensure that the fan will not be crushed, hurt or damaged during transportation.

4、 Product quality control: our company strictly implements ISO9001 standard, and strictly implements the incoming materials, production, inspection, storage and manufacturing process in accordance with the standard. All links can be traced, problems can be found and dealt with in time, so as to make customers feel at ease and trust.

5、 After sales: all the fans we produce are made of high-quality raw materials and big brand components. If there is any problem within 7 days, they will be returned free of charge. The product is guaranteed for 5 years.
