Home > Products > Marine Electrical Equipment > Customize BV/DNV Marine Main Switchboard
Customize BV/DNV Marine Main Switchboard
- China port
- T/T Credit Card
You May Like
Product Details
| Brand Name | BOCHI | Place of Origin | Chongqing, China |
according to the requirement of the clients
Product Description

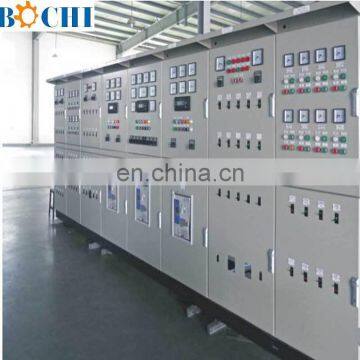

Customize BV/DNV Marine Main Switchboard
Application:
The working parameter is 50/60Hz, 1000V, and the generater power is 1200Kw. The switch board provide the protection of short circut, overload, reverse power,
preferential trip and stc. And provide the function of auto paralleling, auto adjust
frequency and load, generator auto and etc. Monitoring and control of the
parameter V,A, Hz, KWstatus when the generator running. The para,eter cover
limited will active alarm.
There are three models of operation: Manual/Semiautomatic/Fullyautomatic on the main s
witchboard. Semiautomatic power plant is with the product of DEIF(Danish). It can adjust frequency
automatically. The PPM type, PPU+PLC type of DEIF and SELCO type can b fully-automatic power managenment system, to meet customer’s requirements.
The switchboard is made followomh class rules and related regulation and standard requirement. Protection degree:IP23
The switchboard is able to be designed to meet customer’s needs.
The products provided CCS, BV, ABS, LR, GL,DNV,KR class certification.
Specification:
Rated working voltage:AC690V 50/60Hz
Rated insulation voltage:1000V
Rated current:6300A
Protection class:IP23,IP44
Material:Steel
Thickness:skeleton 3mm, panel 2mm
Installation way:Free-standing
Cable entry:Bottom
Customer visits:
Produce status:
Package and delivery:
With the aim of "to establish a close strategic partnership and develop together with customers",
we will work whole-heartedly to improve our products and service
BOCHI can provide CCS, ABS, DNV, GL, LR, RINA, BV, NK, KR, RS...etc.
We can satisfy all the customers requirments.
Factory:
If u have any other requirements or enquiry, pls contact with me and I must make my reply asap.
