Huasheng-Unniversal Heavy Duty Lathe
- shanghai
- T/T
- 30 days
You May Like
Product Details
| Place of Origin | China | Condition | New | |
| CNC or Not | Normal |
Product Description

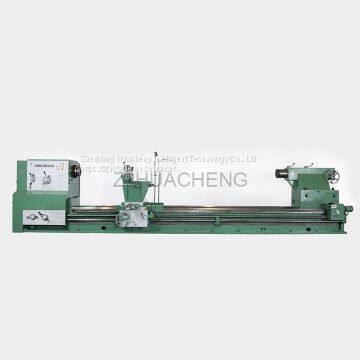

Huasheng-Unniversal Heavy Duty Lathe
This machine is a universal lathe, suitable for high speed steel and hard alloy cutter to process axial parts, cylinder type and disk parts of different materials, turning excircle, section, slot, boring holes and inner cone. Heavy duty lathe machine also turning various threads.
Spindle adopts three supporting structure, the whole lathe bed form the box body,it make the bed has high rigidity.Lathe is equipped with a separate pump, forced lubrication, carrige box, the tool post, saddle, tailstock can fast moving. Huasheng-heavy duty lathe has high rigidity, high efficiency, safe and reliable, convenient operation and attractive appearance etc.
heavy duty lathe manufacturers:Zhenjiang Huasheng Intelligent Technology Co., Ltd
MODEL | CW61128 | CW61148 | CW61168 | CW61198 | CW61208 |
CW62128 | CW62148 | CW62168 | CW62198 | CW62208 | |
Max workpiece weight | 10T | ||||
Max swing over bed | 1280mm | 1480mm | 1680mm | 1980mm | 2080mm |
Max swing over cross slide | 840mm | 1040mm | 1240mm | 1500mm | 1600mm |
Center distance | 2m 3m 4m 5m 6m 8m 10m 12m | ||||
Max swing over gap | 1580mm | 1780mm | 1980mm | 2280mm | 2380mm |
Valid length of gap | 400mm | ||||
Bed width | 1100mm | ||||
Headstock | |||||
Spindle bore | Φ130mm | ||||
Spindle taper | Metric 140# | ||||
Spindle speeds | 3.15-315r/min or 2-200r/mm or 2.5-250r/mm. | ||||
Forward 21kinds，Reversal 12kinds | |||||
GEAR BOX-THREADS & FEEDS | |||||
Metric threads range | 44 1-120mm | ||||
Inch threads range | 31 1/4-24 T/I | ||||
Moudle threads range | 45 0.5-60mm | ||||
Diametral threads range | 38 1/2-56DP | ||||
Longitudinal feeds range | 56 0.1-12mm | ||||
Cross feed range | 56 0.05-6mm | ||||
Rapid feed:long/cross | 3400mm/min,1700mm/min | ||||
TOOL POST | |||||
Distance between Center&Tool | 48mm | ||||
Tool section | 45*45mm | ||||
CARRIAGE | |||||
Cross slide travel | 780mm | ||||
Compound rest travel | 280mm | ||||
TAILSTOCK | |||||
Sleeve diameter | Φ260mm (With built-in small spindle) | ||||
Sleeve taper | Metric 80# | ||||
Sleeve travel | 300mm | ||||
MOTOR | |||||
Main drive motor | 30kw | ||||
Coolant pump motor | 0.15kw | ||||
Rapid feed motor | 1.5kw | ||||
Tailstock motor | 1.5kw | ||||
