Huasheng-Unniversal Heavy-duty Lathe
- shanghai
- T/T
- 30 days
You May Like
Product Details
| Place of Origin | China | Condition | New | |
| CNC or Not | Normal |
Product Description

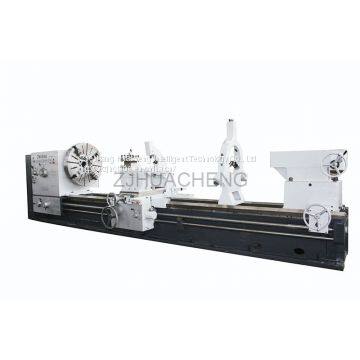

Huasheng-Unniversal Heavy-duty Lathe
Spindle is three supporting structures, all of which are P5 class precision bearings;
There is a safety mechanism in the cross sliding box, which can prevent the lathe from being damaged due to overload.
/product-list-heavy-duty-unniversal-lathe.html
The upper carriage can cut short cone by motor vehicle, and the compound movement of longitudinal feed and upper carriage feed can cut long cone by motor vehicle
The guide rail is quenching on the surface to improve the service life .
The operation handle of the lathe is centralized and easy to operate.
Heavy-duty Unniversal Lathe supplier: Zhenjiang Huasheng Intelligent Technology Co., Ltd
Suitable for high-speed steel and hard alloy steel cutting tools to process different materials of shaft parts, cylindrical and disk parts in turning outer circle, end face, grooving, cutting, boring, turning and boring inner cone, various threads and other processes.
You can click here to get the heavy duty lathe machine price
MODEL | CWA61100 | CWA61125 | CWA61140 | CWA61160 | |
Max.swing over bed | 1000mm | 1250mm | 1400mm | 1600mm | |
Max.swing over cross slide | 620mm | 870mm | 1000mm | 1200mm | |
Center distance | 1.5m 2m 3m 4m 5m 6m 8m 10m 12m | ||||
Width of bed | 780mm | ||||
Max weight of work-piece | 8T | ||||
HEAD STOCK | |||||
Spindle hole | ∮130mm | ||||
Spindle taper | Metric 140# | ||||
Spindle speeds | 3.15-315r | 2.5-250r | |||
Forward 21kinds，Reversal 12kinds | |||||
GEAR BOX-THREADS&FEEDS | |||||
Metric threads range(kinds) | 44kinds 1-120mm | ||||
Inch threads range(kinds) | 31kinds 1/4-24 T/I | ||||
Module threads range(kinds) | 45kinds 0.5-60mm | ||||
Diametral threads range(kinds) | 38kinds 1/2-56DP | ||||
Longitudinal feeds range(kinds) | 56kinds 0.1-12mm | ||||
Cross feed range(kinds) | 56kinds 0.05-6mm | ||||
Rapid feed:Long/Cross | 3400mm/min,1700mm/min | ||||
TOOL-POST | |||||
Distance between Center & Tool | 48mm | ||||
Tool section | 45*45mm | ||||
CARRIAGE | |||||
Cross slide travel | 650mm | ||||
Compound rest travel | 280mm | ||||
TAILSTOCK | |||||
Sleeve diameter | ∮160mm | ||||
Sleeve taper | Metric 80# | ||||
Sleeve travel | 300mm | ||||
MOTOR | |||||
Main motor | 22kw | ||||
Coolant motor | 0.15kw | ||||
Rapid feed motor | 1.5kw | ||||
Center distance.(mm) | Net weight (kg) | ||||
2000 | 11700 | 12200 | 12800 | 13400 | |
3000 | 12500 | 13000 | 13600 | 14200 | |
4000 | 13300 | 13800 | 14400 | 15000 | |
5000 | 14100 | 14600 | 15200 | 15800 | |
Center distance.(mm) | Dimensions L*W*H (mm) | ||||
2000 | 5100*1900*2400 | ||||
3000 | 6100*1900*2400 | ||||
4000 | 7100*1900*2400 | ||||
5000 | 8100*1900*2400 | ||||
