Product Details
| Brand Name | Yuanyao | Place of Origin | China | |
| Model Number | all type | Power | Electronic |
Product Description

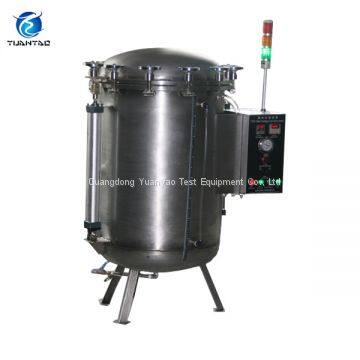

Directly factory quantity warranty IEC 60529 IP grade test immersion waterproof test device
Introduction&Application:
Directly factory quantiy warranty IEC 60529 IP grade test immersion waterproof test device simulates the water immersion environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
Definition of IPX7: See the IP grade sheet.
Feature:
1. Meet the requirement of IEC60529 standard IPX7 water pouring test and IPX8 water splash test.
2. Easy operation, special design.
3 Best after sales service: One year free parts maintenance.
4 Customization is available & welcomed.
Technical parameters: See the label.
| Specification | |||||
| Model | YSRT-1728-A | YSRT-1728-E(IEC-529)(CNS14165) | |||
| Internal Dim. WHD(mm) | 1200× 1200× 1200 | 1200× 1200× 1200 | |||
| External Dim. WHD(mm) | 1750× 1850× 1300 | 1750× 1850× 1300 | |||
| Water Temp. | Normal | Normal | |||
Spray Type | Total water flow(L/min) | R1 | 1.8 | IP× 1 | With in 1--1.5mm/min(In drip box) |
| R2 | 3.2 | IP× 2 | With in 3--3.5mm/min(In drip box) | ||
| S1 | 24.5 | IP× 3 | angle± 600, R: 400mm, 1.1L/min | ||
| S2 | 39.2 | IP× 4 | angle± 1800, R: 400mm, 1.8L/min | ||
Preesure of spray nozzle (kgf/cm 2 ) | R1 | 0.1 | 1. Flow rate of the water=0.07L/min 2. IP× 3, Radius: 400mm, Number or open holes=16, total water flow: 1: 1L/min. 3. IP× 4, Radius: 400mm, Number or open holes=25, total water flow: 1: 8L/min. *Radius: 200mm, R400mm. (For IP× 3, IPx4) | ||
| R2 | 0.3 | ||||
| S1 | 1 | ||||
| S2 | 3 | ||||
| (RPM)Test Specimen Frame | 17RPM | 1RPM | |||
Spray Nozzle Rotation Speed | 23RPM | Swing 60° from vertical for 4 seconds at one time Swing 180° from vertical for 12 seconds at one time | |||
Material | Interior | SUS#304 | |||
| Exterior | |||||
| Other Components | Chamber lamp. Wiper casters with Adjusters | Chamber lamp. Wiper, casters with Adjusters | |||
| Power Source[K. W] | AC 1Ψ 220V 60/50Hz 4KW | ||||
IP grade sheet
| Level | Protected against | Testing for | Details |
|---|---|---|---|
| 0 | Not protected | _ | _ |
| 1 | Dripping water | Dripping water (vertically falling drops) shall have no harmful effect. | Test duration: 10 minutes Water equivalent to 1 mm rainfall per minute |
| 2 | Dripping water when tilted up to 15° | Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position. | Test duration: 10 minutes Water equivalent to 3 mm rainfall per minute |
| 3 | Spraying water | Water falling as a spray at any angle up to 60° from the vertical shall have no harmful effect. | Test duration: 5 minutes Water volume: 0.7 litres per minute Pressure: 80- 100 kPa |
| 4 | Splashing water | Water splashing against the enclosure from any direction shall have no harmful effect. | Test duration: 5 minutes Water volume: 10 litres per minute Pressure: 80- 100 kPa |
| 5 | Water jets | Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. | Test duration: at least 3 minutes Water volume: 12.5 litres per minute Pressure: 30 kPa at distance of 3 m |
| 6 | Powerful water jets | Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. | Test duration: at least 3 minutes Water volume: 100 litres per minute Pressure: 100 kPa at distance of 3 m |
| 7 | Immersion up to 1 m | Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion). | Test duration: 30 minutes Immersion at depth of at least 1 m measured at bottom of device, and at least 15 cm measured at top of device |
| 8 | Immersion beyond 1 m | The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects. | Test duration: continuous immersion in water Depth specified by manufacturer |
Product detail
Except Directly factory quantiy warranty IEC 60529 IP grade test immersion waterproof test device, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
