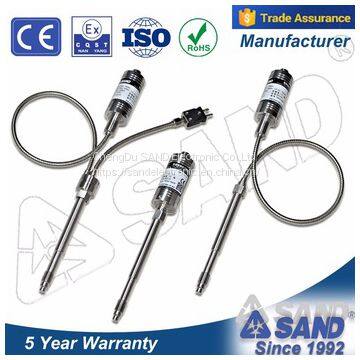

Mercury free type melt pressure transmitter with RoSH

Product Description

SAND  This  series of products adopted safe structure & non-toxic, pollution-free transmission medium, All the constituent components of the sensor are safe, does not produce harmful toxic substances or gases, so that it can contact with raw materials directly. When it working, it won't pollute the surrounding environment and the measuring medium. The products have been widely used in the food, beverage, wine, medical and other industries.

Performance

1 Adopt safe structure & non-toxic, pollution-free transmission medium;

2 Comply with U.S. FDA standards and the EU ROHS directive;

3 1/2 "-20, M14 x 1.5, M22 x 1.5, G3 / 4" a variety of mounting dimensions to facilitate the user to select;

4 Accuracy: ± 1.0% FS, ± 1.5% FS (default);

5 Green shell, elegant appearance;

6 Output signal:Pressure sensors; 2.0mV / V, 3.0mV / V, 3.33mV / V; Pressure transmitter: 0 ~ 10V, 4 ~ 20mA;

7 Corrosion resistant coating to extend the service life of3 to 5 times; (optional)

8 Thermometric Config:

Thermocouple: E, J, K type, etc., Thermal resistance: Pt100 etc. (Optional)

* Anticorrosive wear-resisting coating: apply to high concentrations of rough media pressure measurement,

can improve the service life of 3 to 5 times (optional);

* Special requirement can make to order, delivery date 7 ~ 15 working days;

* Optional supporting intelligent digital pressure meter:

PS1016-43x series, PS4810-43x series, PS4812-43x series and PS9016-43x series.

Example1:

PT3516-350bar-M18-150-3.33mV/V

Note:

Product design Model "PT3516".

Function code "Null" stands for melt pressure transducer.

Coating code "Null" stands for without coating .

Pressure range: 0 ~ 350bar.

Thread size : M18 * 1.5.

Rigid stem length:150mm .

Pressure output signal: 3.33mV/V.
