Cylindrical Diamond Grinding Wheel for PDC
- 5000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
Product Details
| Brand Name | MORE | Place of Origin | China | |
| Model Number | 1A1 | Size | As requested | |
| Type | Other, Grinding wheel |
Product Description
Application:
Widely used for PDC cutters’ cylindrical grinding.
Advantages:
1.High efficiency
2.Good self-sharpening
3.Excellent surface finish
4.Long service life

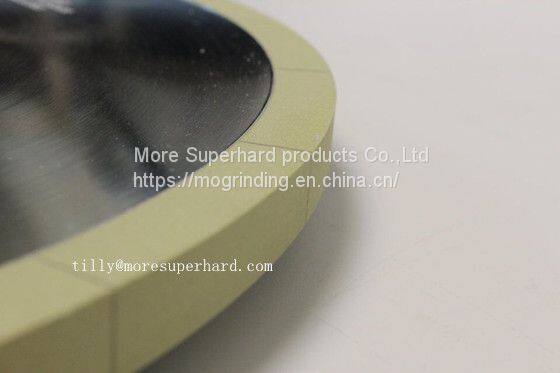

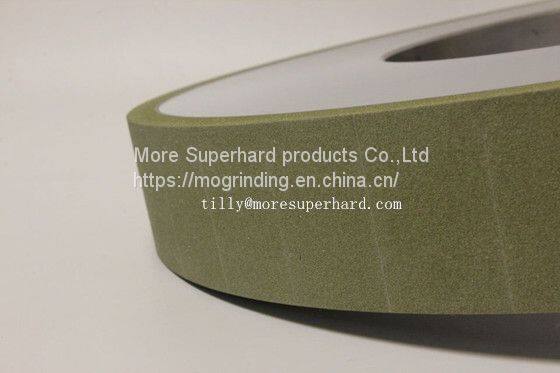

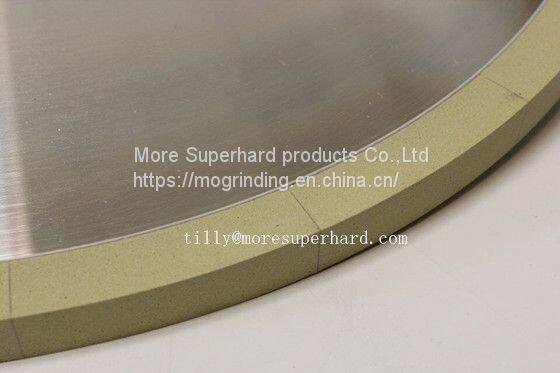

Vitrified diamond Cylindrical grinding wheel for rough grinding the cylinder of Polycrystalline Diamond Compacts (PDC cutter). Compared with resin diamond grinding wheel, our wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved
Specification Of Cylindrical Diamond Wheel
Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 | 350 | 40 | 127 | 10 |
400 | 40 50 | 203 | 10 | |
400 | 40 50 | 305 | 10 |
Resin Diamond Wheel for Cylindrical Grinding PDC Cutter / Drill bits
Diameter (mm) | Diameter (inch) | H (mm) | T (mm) | X (mm) |
400 | 16 inch | 127 | 25, 50 | 10, 25 |
500 | 20 inch | 127, 203.2 | 25, 50 | 10, 25 |
600 | 24 inch | 254 | 25, 50 | 10, 16, 25 |
750 | 30 inch | 304.8 | 50 | 10 |
914.4 | 36 inch | 304.8 | 25, 50 | 10, 25 |
1100 | 43 inch | 304.8 | 50 | 10 |
Other specification can be made according to customer requirement | ||||
Centerless Grinding Wheel for Precision Grinding PDC (polycrystalline diamond compacts)
Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 | 300 | 150 | 120 | 5, 10 |
350 | 125 | 127 | 5, 10 | |
400 | 150 | 203 | 5, 10 | |
455 | 205 | 228.6 | 5, 10 | |
500 | 150 | 305 | 5, 10 | |
650 | 380 | |||
Round run-out of grinding wheel ≤0.02mm | ||||
