Home > Products > compression driver > Titanium Diaphragm Compression Driver,Aluminum back cover tweeter (ＡSY-5169S)

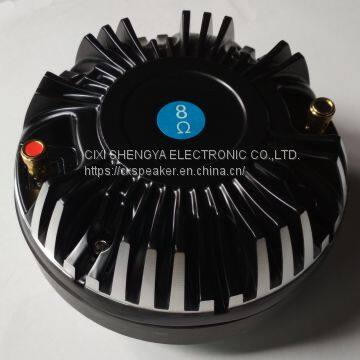

Titanium Diaphragm Compression Driver,Aluminum back cover tweeter (ＡSY-5169S)
Negotiable
/ Piece
100 Pieces(Min.Order)
- ningbo
- T/T L/C
- 15 days
You May Like
-
Titanium Diaphragm Compression Driver,Aluminum back cover tweeter (ＡSY-51PS)
-
Dome Tweeter, 25mm Silk Diaphragm (NSY-25A)
-
Dome Tweeter, 25mm Silk Diaphragm (NSY-25B1)
-
Dome Tweeter, 25mm Silk Diaphragm (NSY-25B2)
-
Dome Tweeter, 25mm Silk Diaphragm (NSY-25B3)
-
Dome Tweeter, 25mm Silk Diaphragm (NSY-25c1)
Product Details
| Place of Origin | China | Model Number | ＡSY-5169S | |
| Use | Stage |
Product Description
Specifications:
Throat Diameter :1 in (25.4mm)
MountingType : Screw on 1 3/8″or Bolt-on
Nominal Impedance: 8 Ohm
PowerCapacity: 80Watts RMS
Sensitivity(1W/1M):112dB
FrequencyRange: 1.0KHz-20KHz
Diaphragm Material: Titanium
VoiceCoilDiameter :2.03 in(51.6mm)
Voice Coil Material : Round Aluminium Wire
Flux Density: 1.75T
Magnet: Strontium Ferrite
OverallDiameter×Depth: 134mm (5.28in) × 81mm (3.19in)
Net Weight: 3.0Kg
