Product Details
| Brand Name | GOGO ATC | Place of Origin | Zhejiang, China | |
| Model Number | AC3010-03 |
Product Description

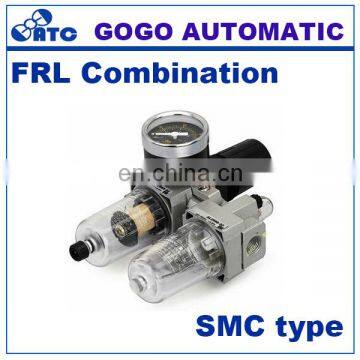

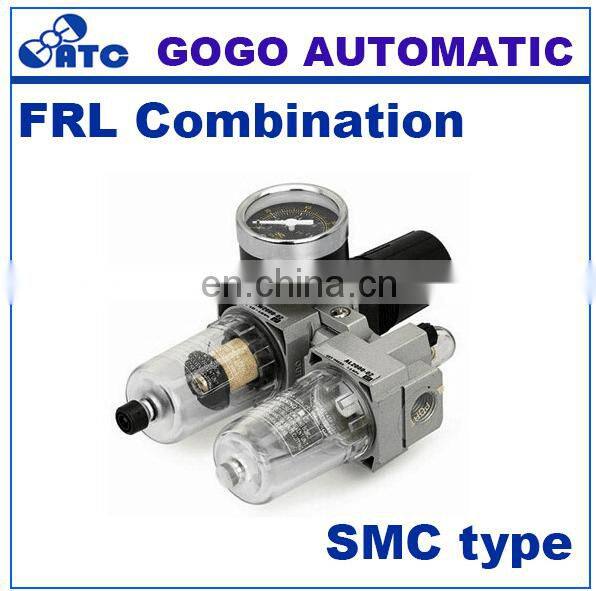

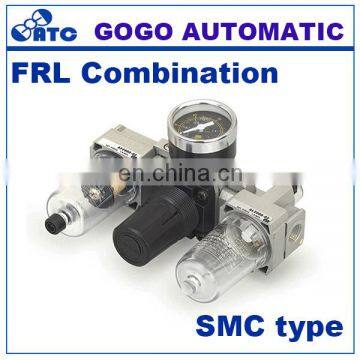

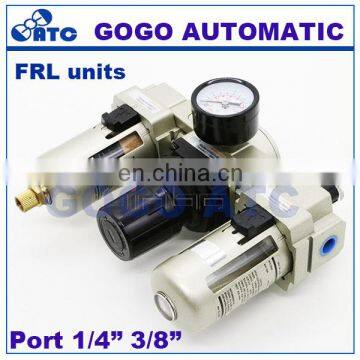

GOGO ATC Pneumatic FRL Combination air filter regulator and lubricator
heat rosin press machine
AC3010-03 3/8 inch Manual drain
SMC type air treatment unit
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * **
1.Specification
Ensured Pressure Resistance | 1.5MPa(15kgf/cm²) |
Highest Working Pressure | 1.0MPa(10kgf/cm²) |
Ambient and Fluid Temperature | 5-60°C |
* Filter Precision | 25 µm |
Container Material | Polycarbonate |
Protective Cover | AC2010(Not Available) AC3010-5010(Available) |
Pressure Regulating Range | AC1010:0.05-0.7 Mpa(0.5-7kgf/cm²) |
Valve Type | With Overflow |
Model | AC2010-01 | AC2010-02 | AC3010-02 | AC3010-03 | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 | |
Rated Flow | 500 | 500 | 1700 | 1700 | 3000 | 3000 | 3000 | 4000 | 4500 | |
Joint Pipe Bore | G1/8 | G1/4 | G1/4 | G3/8 | G3/8 | G1/2 | G3/4 | G3/4 | G1 | |
Filtering Eleiment Roughness | 25 | |||||||||
Highest Working Pressure | 1.0MPa | |||||||||
Ensured Pressure Resistance | 1.5MPa | |||||||||
Range of Adjustable Pressure | 0.05-0.85MPa | |||||||||
Recommended Oil Use | ISO VG 32 | |||||||||
Container Material | Polycarbonate | |||||||||
Protective Cover | Not Available | Available | ||||||||
Drain Function | Differential Drain | Differential Drain, Automatic Drain | ||||||||
Valve Type | With Overflow | |||||||||
Assembly | Filter | AW2000-01 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW5000-06 | AW5000-10 |
Lubricator | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 |
| |

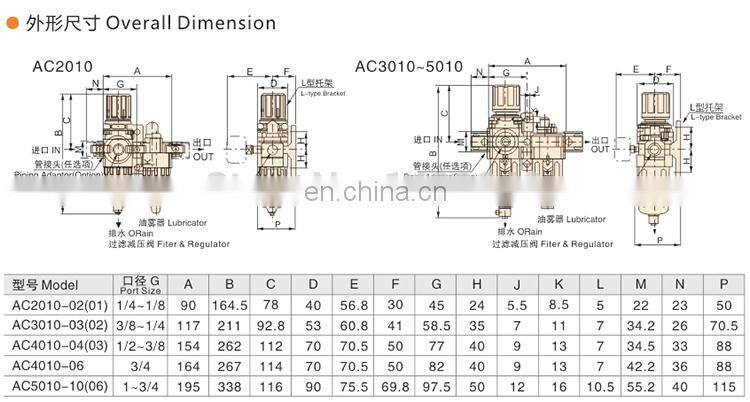

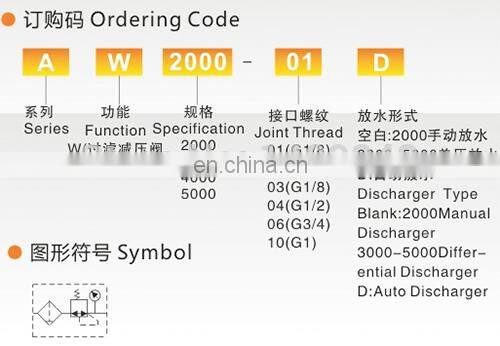

2. Dimensions

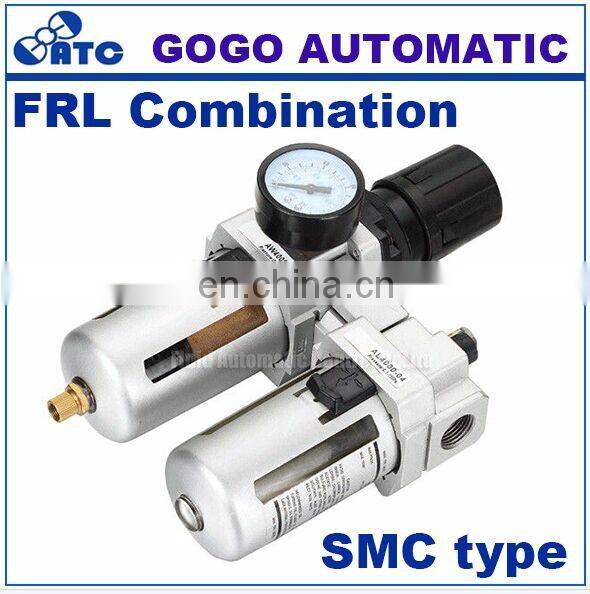

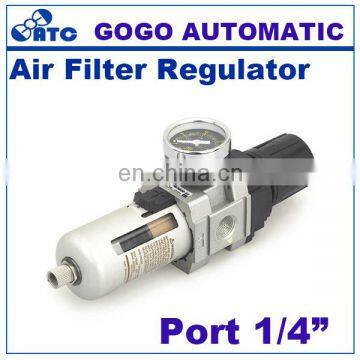

3. Picture
