Home > Products > Bus Bar Processing Machine > Joint Connection Bar Processing Center
Joint Connection Bar Processing Center
- 20 Set / Sets per Month
- Shanghai
- T/T L/C
- 40 days
You May Like
-
Sandwich busduct inspection machine, busbar testing machine
-
Automatic bus bar processing machine for cutting, bending and punching
-
Hydraulic bus bar bending machine, copper bar punching machine
-
Automatic busduct packing machine, packaging line for busway system
-
compact busbar assembly machine, automatic busduct assembly line
-
Mylar film forming machine, Polyester insulation film folding machine
Product Details
| Brand Name | Kiande | Place of Origin | China | |
| Model Number | KDEQ-E-007 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

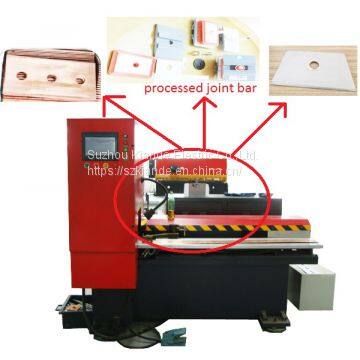

Joint Connection Bar Processing Center
The automatic joint connection bar processing center is a machine with unmanned operation. Operator only needs to set the related data on the touch screen such as current ratings, quantity, hole distance, raw material length and etc. and strip conductors will be processed automatically. This will save labor cost and win stable and good quality. As connection bar type is different in the joint, machine can be customized according to the requirement to proceed hole punching, counter bore, cutting and etc..
公稱力 Force (KN) | 沖孔Punch | 300 | |
拉伸Stretch | 300 | ||
剪切Shear | 300 | ||
X軸承行程Stroke of X Axis | 1200mm | ||
X軸定位最高速度Max. Speed of X Axis | 500mm/s | ||
沖壓行程 Punching Stroke | 50mm | ||
孔距控制精度 Distance Accuracy of Two Holes | ±0.1mm | ||
連接排導(dǎo)體規(guī)格 (銅、鋁) Conductor(Aluminum, Copper) | 長Length | 6000mm | |
寬Width | 100mm~140mm | ||
厚Thickness | 2mm~4.5mm | ||
最大液壓力Max. Hydraulic Force | 31.5MPa | ||
電源 Power | 380~415VAC 50~60Hz 10kW | ||
