Compact Busbar Assembly Machine, Automatic Busduct Assembly Line
- Shanghai
- T/T L/C
- 40 days
You May Like
-
Mylar Film Forming Machine, Polyester Insulation Film Folding Machine
-
Mylar Film Slitting Machine, Polyester Film Cutting Machine
-
Joint Connection Bar Processing Center
-
Sandwich Busduct Inspection Machine, Busbar Testing Machine
-
Automatic Bus Bar Processing Machine for Cutting, Bending And Punching
-
Hydraulic Bus Bar Bending Machine, Copper Bar Punching Machine
Product Details
| Brand Name | Kiande | Place of Origin | China | |
| Model Number | KDEQ-E-004 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

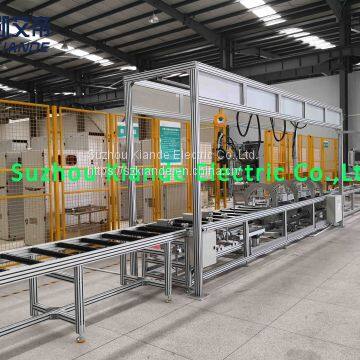

Semi-automatic Busduct Assembly Line
Semi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.
Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.
Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side’s riveting.
Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.
Equipment data on semi-automatic busbar assembly line:
序號No. | 參數 Parameters |
設備型號Model | KD-ZDX/H-4-6（4.5） |
最大母線高度 Max. Busbar Height | 330mm（單層） 330mm (Single Layer) |
最大母線長度 Max. Busbar Length | 6000mm |
生產效率 Working Efficiency | 約3米/4分鐘 Around 3000mm/4min |
鉚槍Riveting Machine | 不包含Not included |
轉盤數量Rotator Nos | 4個（標配） 4 sets (standard) |
翻轉部位長度 Length of Reversal Part | 4500mm |
手動升降數量 Manual Lifting Fixture Nos | 3個 3 pieces |
手動裝配母線長度 Manual Operation Station Length | 1500mm |
吊架材質Hanger Material | 鋁合金吊架 Aluminum hanger |
鉚接類型Riveting Type | 人工鉚接 Manual riveting |
電源Power | 380~415VAC 50~60Hz 5kW |
設備外形尺寸Equipment Dimension | L18000mm*W800mm*H1900mm |
