Precision Honjin Melt Flow Indexer With Good Price

Fiber package,Non-fumigation

Melt Flow Index MFI Testing Machine

Product introduction

It is used to measure the MFR value of melt flow rate of various polymers in viscous flow state. It is suitable not only for engineering plastics such as polycarbonate, polysulfone, fluoroplastics and nylon with higher melting temperature, but also for melting polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyformaldehyde (POM), polycarbonate (PC) resin and so on. Low temperature plastic testing is widely used in plastic production, plastic products, petrochemical and other industries, as well as related colleges, research institutions and commodity inspection departments.

This instrument is suitable for the determination of melt mass flow rate and melt volume flow rate of thermoplastic in GB/T3682-2000. This standard is equivalent to ISO 1133:1997.

The main body is a desktop structure, reasonable design, stable and reliable performance, beautiful appearance, easy to operate, the use of high-performance, high-precision control instruments with high sampling accuracy, control speed, the use of precise PID algorithm for constant temperature control.

Main technical parameters

Outlet diameter: 2.095 mm / 0.005 mm.

Length of discharge port: 8 + 0.025 mm

Loading cartridge diameter: 9.550 mm / 0.025 mm

Loading tube length: 152 + 0.1 mm

Piston rod diameter: 9.475 + 0.015 mm

Piston rod length: 6.350 + 0.100 mm

2. Standard test load (level 8)

3, temperature range: room temperature - 400 C

4, constant temperature accuracy: + 0.5 degrees C

5, display resolution: 0.1 C

6, temperature recovery time: less than 4 minutes.

7. Cutting mode: automatic cutting.

8, constant temperature time: can work thousands of hours continuously.

9, automatic printout

10, outline size: wide * thick * high =250 * 350 * 510

11, supply voltage: AC220V + 10% 50HZ

Machine detail

1. Outlet diameter: 2.095 mm / 0.005 mm.

2. Length of discharge port: 8 + 0.025 mm

3. Loading cartridge diameter: 9.550 mm / 0.025 mm

4. Loading tube length: 152 + 0.1 mm

5. Piston rod diameter: 9.475 + 0.015 mm

6. Piston rod length: 6.350 + 0.100 mm

7. temperature range: room temperature - 400 C

8. constant temperature accuracy: + 0.5 degrees C

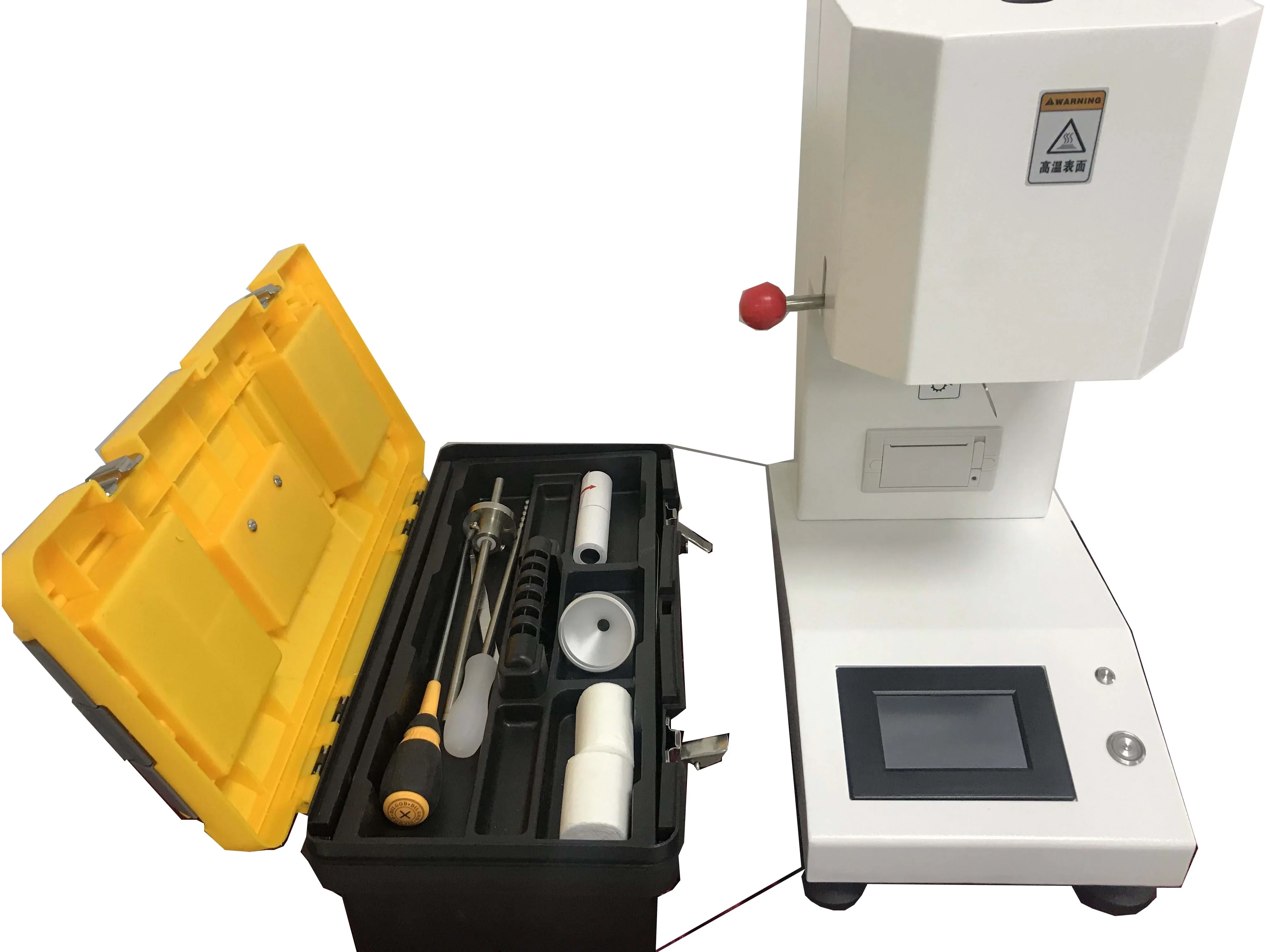

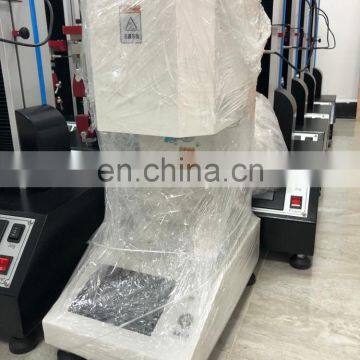

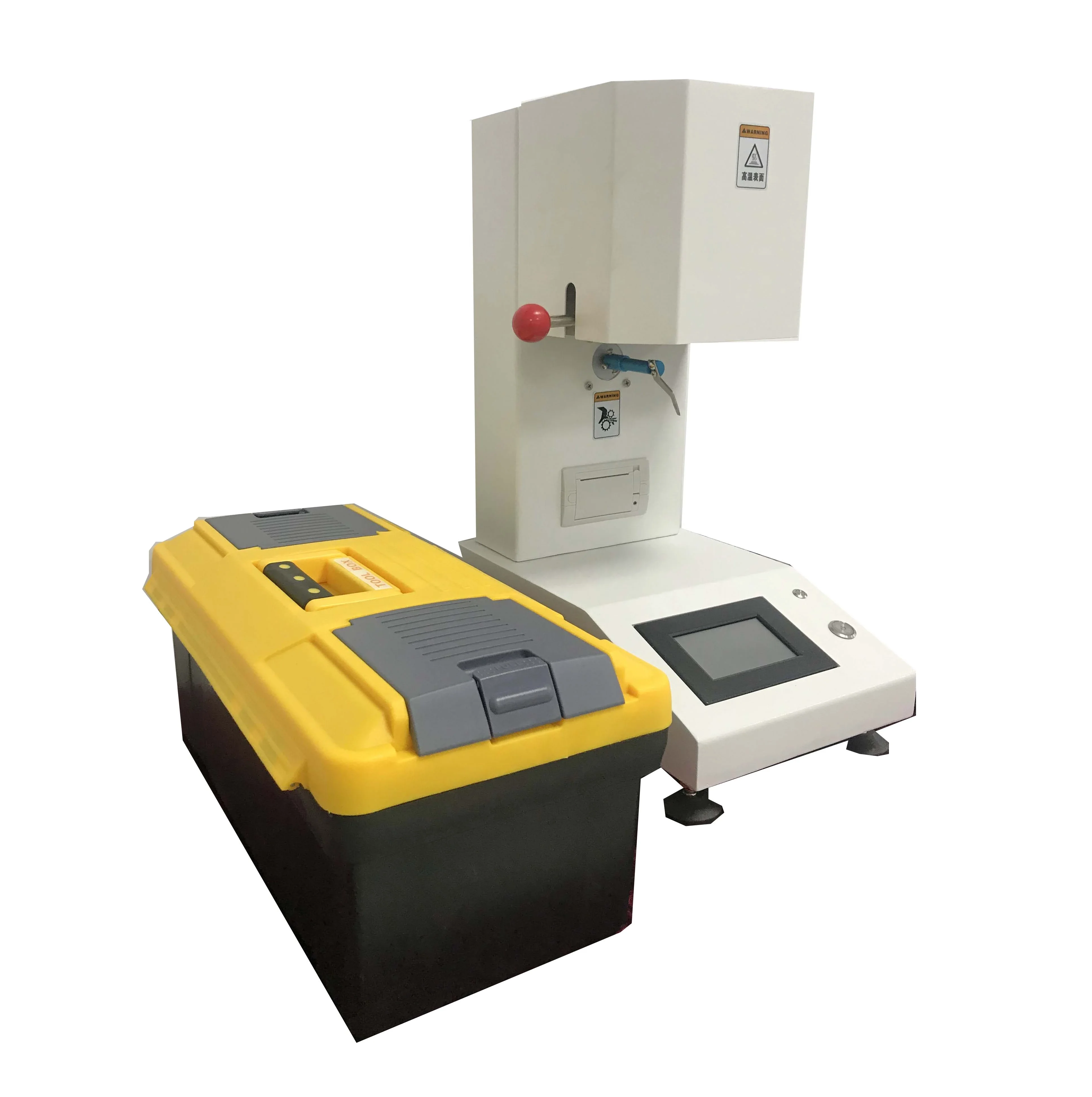

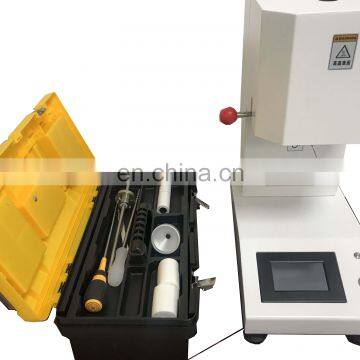

Picture for reference

FAQ

FAQ

1.What's your MOQ?

At present we haven't strict policy for this, so welcome orders with any quantity.

2. Are you a factory or trade company?

We are a manufacturer located in Dongguan. You will be welcomed to visit our factory or we also can share our factory vedio for you at any time.

3. We are not professional for operation and installation of your machine?

While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.

4. How about packaging? If machine damaged, what should I do ?

Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.

5. We haven't do business before, how can I trust your company and machine?

We are a factory with more than 13 years and without amy complaints on Alibaba. and our machine have exported to many countries and have a good feedback.

6. If I want to visit your factory, is the traffic convenient ?

Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, we also can arrange the shuttle bus for you to our factory.

7. Does your product have CE certification ?

Yes, we not only have the CE certification,but also have the FCC,ISO,etc.

8. If there is not any size meet my need, can I customiz ?

Of cause, we are the 13 years factory that with the rich experience in custom made service,not only can provide the customiz serivice,but also can provide the professional advice.

9.How is the after-sales service?

Our support is guaranteed for 12 months.

For all my customers, we will help you repair. Send us questions through text, images or videos, and we will tell you about them and help you fix them.

If the machine parts are damaged during the warranty period, we can send you a new machine parts free of charge. We have English specifications, online service personnel, video teaching of machine operation, and our machine operation is very simple.
