SPOT Advanced Cable Tracker Pipe Locator Detector Wire Advanced Cable Locator
US$ 110 - 110
/ Set
1 Set(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
-
Household Conform CE Certificate's AC Circuit Fast Falult Analysis Meter Circuit Analyzer
-
HT-118A 6000 Counts Digital Multimeter T-RMS/Autorange Multimeter Smart Chip Multimeter Digital
-
HT- 830L Test Resistance and Auto Power off 2000 Counts Digital Multimeter
-
True RMS Measurement NCV Test Optical Multimeter
-
Multimeter With Non-Contact Voltage Detector and Analog Multimeter Specifications/standard Process Multimeter
-
HT-113C Two 1.5V AAA Batteries Digital Multimeter Multi-function Multimetro Digital Multi-Function 5 in 1
Product Details
| Brand Name | HOTOTCEH | Model Number | HT6818 | |
| Power | Electronic |
Product Description

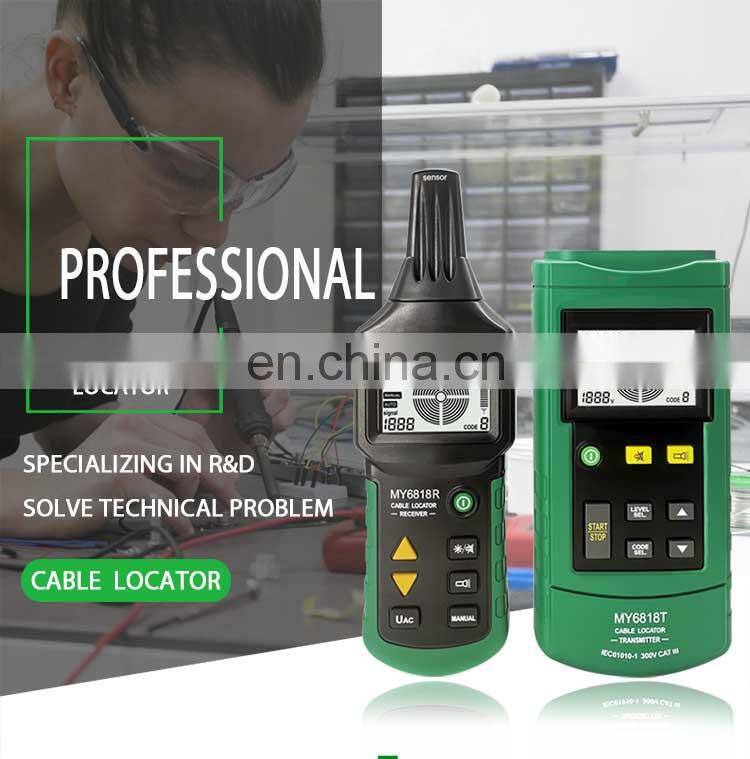

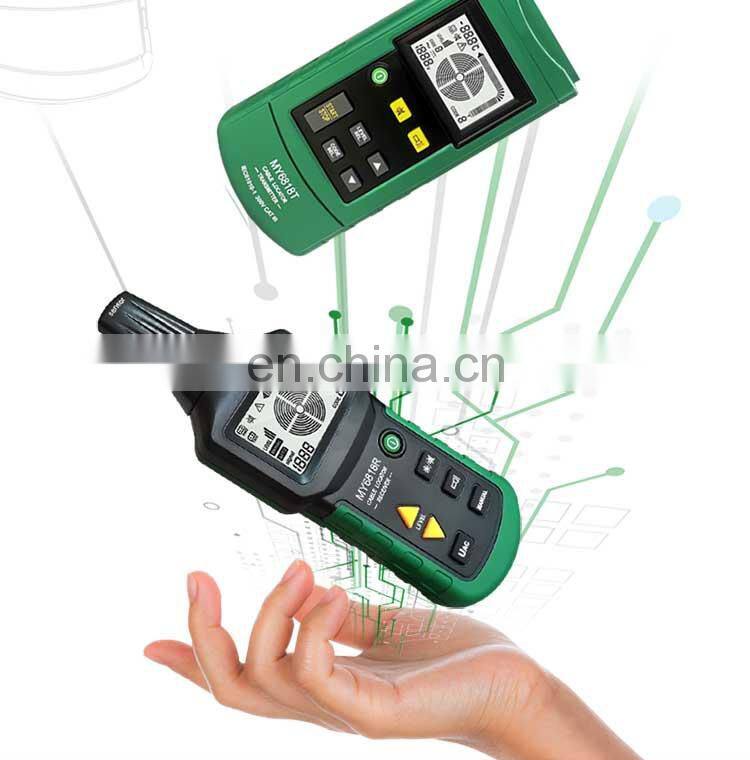

MY6818--advanced cable locator
won the U.S.EC&M Testing and
Positioning equipment 2013 Annual Award
Professional cable locator
The cable detector is suitable for communication cable construction, power cable construction, building pipeline construction, communication cable and power supply line and electric heating line maintenance
| Detects and traces wires buried in walls and floors, up to 6.5feet (2m) deep, as well as in plastic conduit, cable shield and computer cables |
| Traces energized wires and locates breakers without interrupting power |
| Traces de-energized wires (continuity and grounded wire) and pinpoints shorts and ground faults |
| Traces de-energized open (broken or disconnected) wires and locates the point where the wire is broken |

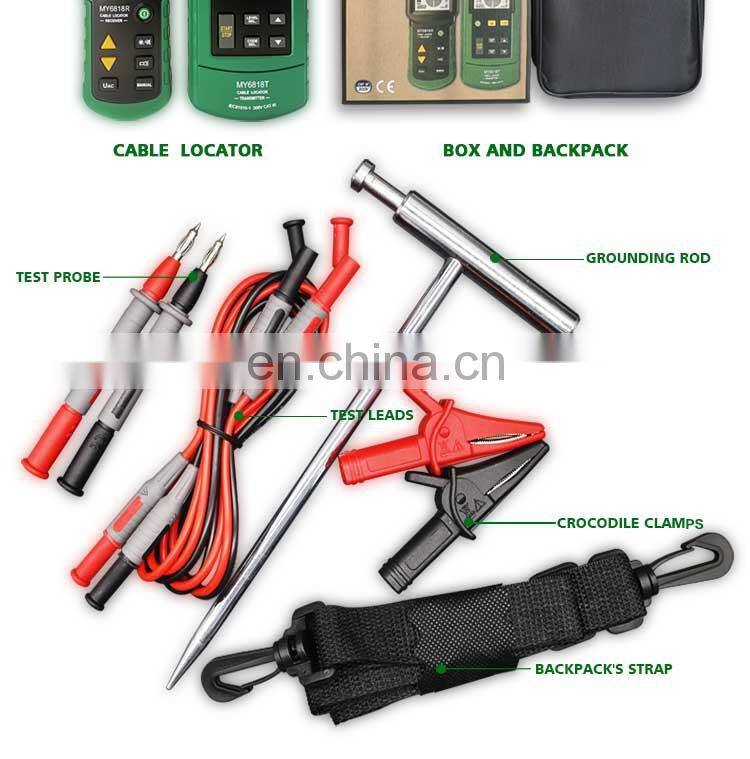

| Includes a clamp on attachment for injecting a signal into wires when bare wire access isn't available |
| Does not interfere with sensitive electronic equipment, such as in hospitals and data centers |

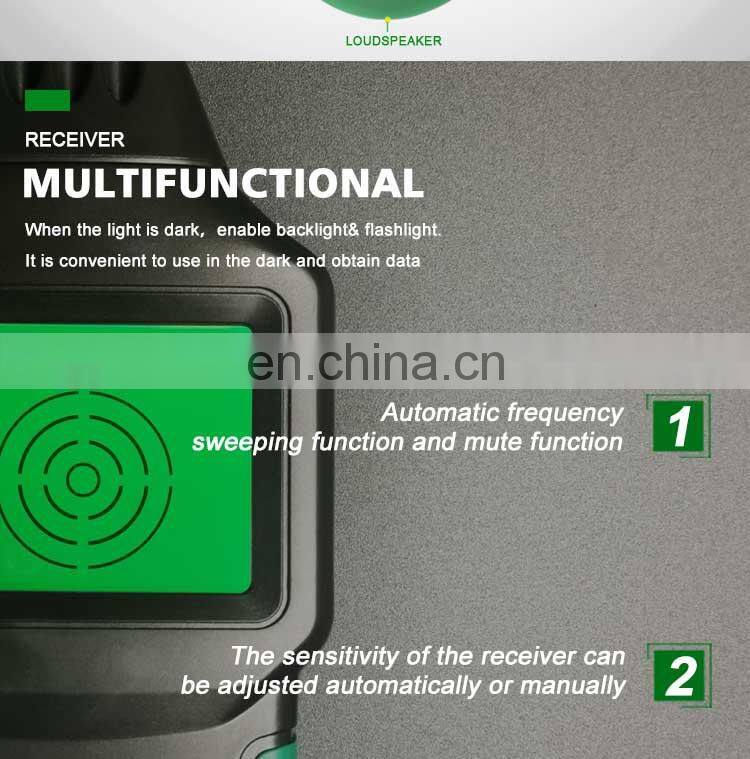

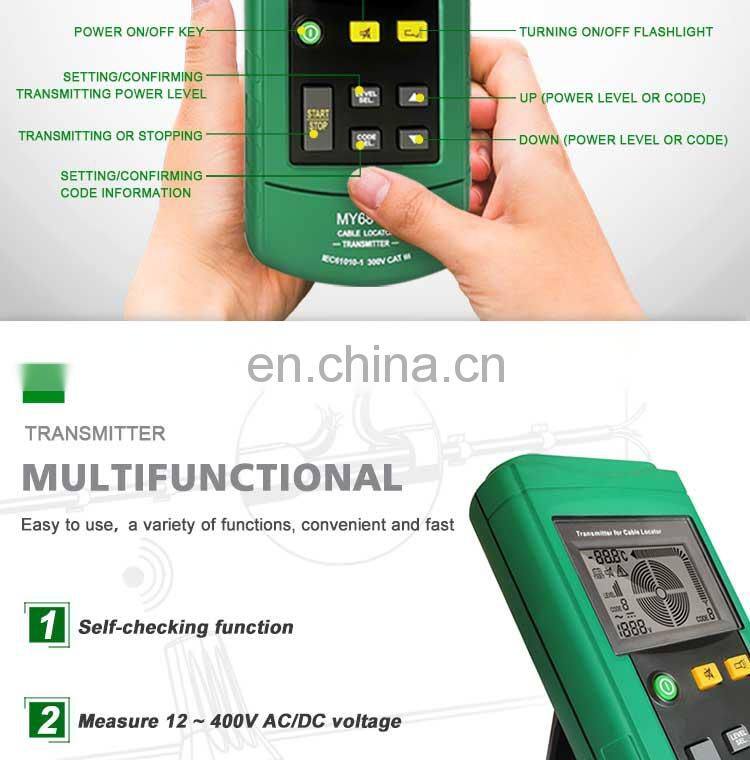

multifunction:
1.self-checking function
2.Measure 12~400V AC/DC voltage

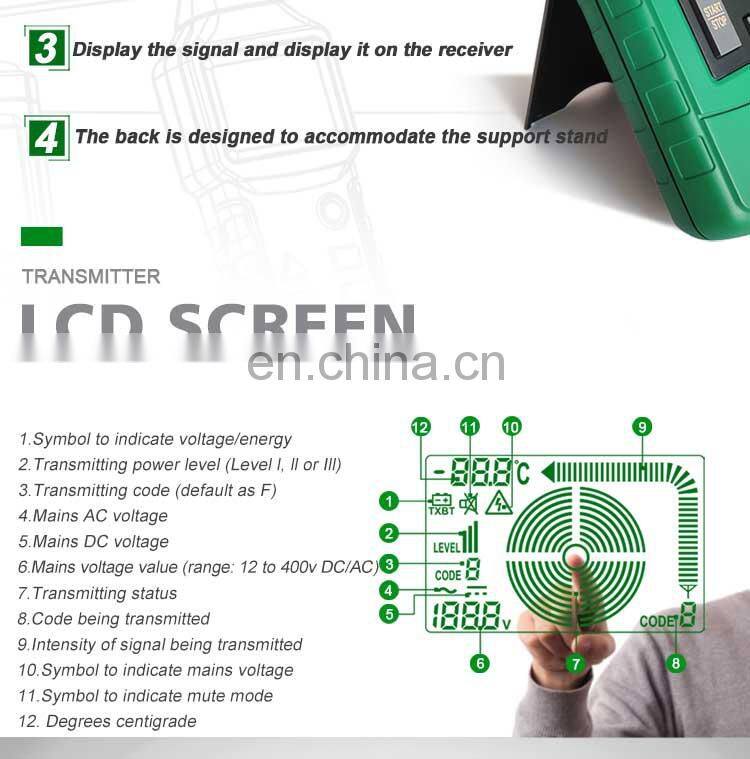

3.Display the signal and display it on the receiver
4.The back is designed to accommodate the support stand.
the specifications

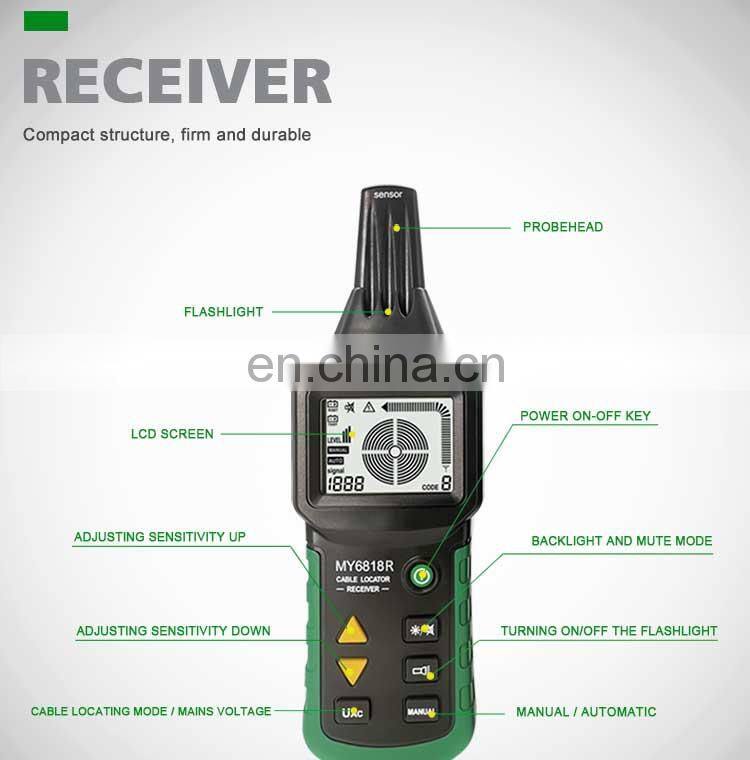

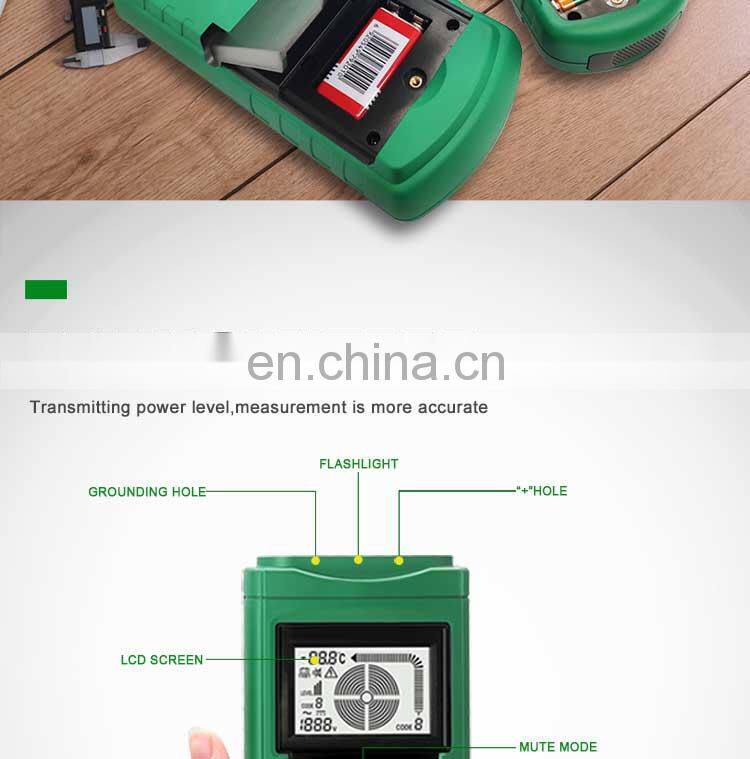

| Technical Parameter of Receiver | Technical Parameters of Transmitter | ||
| Depth of Tracking | The Depth of Tracking Depends on the Material and Specific Applications | Output Signal | 125kHz |
| Cable | Single pole application:about 0~2m | External Voltage | DC12~400V AC12~400V(50~60Hz)±2.5% |
| Locating | Dual pole application:about 0~0.5m | Fuse | F0.5A 1000V |
| Mode | Single loop line:Up to 2.5m | MIN Current | about 31mA |
| MIN Current | About 32mA | MAX Current | about 115mA |
| MAX Current | About 89mA | In Work | 0~40ºC,with max relative humidity of 80% |
| In Work | 0~40ºC,with max relative humidity of 80% | In Storage | -20~60ºC,with max relative humidity of 80% |
| In Storage | -20~60ºC,with max relative humidity of 80% | Altitude | <2000m |
| Altitude | <2000m | Product Size | 190mm*89mm*42.5/7.48"*3.5"*1.67" |
| product size | 241.5mm*78mm*38.5mm/9.5"*3"*1.5" | Product Weight | 420g/0.92lb |
| product weight | 350g/0.77lb | Power Supply | 1*9V 6F22 Battery |
| power supply | 6*1.5V AAA Battery | ||
company
note
-Do we support OEM or ODM?
-Do we have a cheap price?
-Are our products high quality products?
-Do we have a good team?
-Does our product support global after-sales service?
-Are our products certified?
every answer is "YES"
